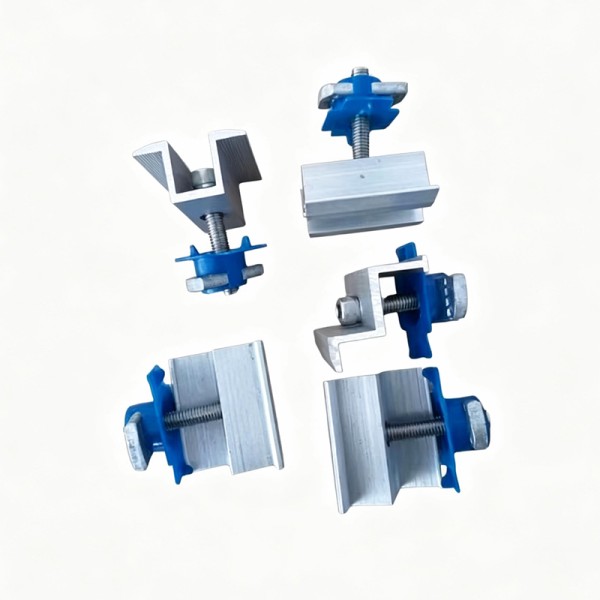

30-60mm Solar Mounting Clamp For Framed & Frameless PV Panels
30-60mm Solar Mounting Clamp For Framed & Frameless PV Panels
30-60mm Solar Mounting Clamp For Framed & Frameless PV Panels
30-60mm Solar Mounting Clamp For Framed & Frameless PV Panels
Specifications
Delivery Time :
15-20 work days
Tolerance :
±3%
Length :
30-60mm /According to the customer's requirements
Price :
Discuss
Compatible Profile :
Solar PV system
Place of Origin :
Hebei,China
Material :
Aluminum
Packaging Details :
Pack According To The Product Size/Customized
Sample :
Free
Packing :
Standard export packing
MOQ :
500 pcs
Certification :
ISO9001
Product name :
Solar Racking Structure
Brand Name :
Jiucan Metal
Delivery Date :
15 days
Payment Terms :
T/T, T/T
Size :
Standard size
Supply Ability :
50 to 80+ tons/day
MOQ :
100 sets / Small trial order acceptable
Description

Solar Mounting Clamp for Framed & Frameless PV Panels

Introduction

Our universal solar mounting clamp is designed for both framed and frameless photovoltaic panel installation, offering wide applicability for various solar projects. Made of high-strength aluminum alloy with optimized clamping structure, it provides secure fixing for traditional framed panels and thin-film frameless panels alike. The clamp features soft protective pads to prevent surface damage and ensure even pressure distribution. It is widely used in residential, commercial and industrial solar systems, compatible with most standard mounting brackets and rails. Anti-corrosion anodized treatment ensures long-term outdoor durability. Modular design allows quick assembly and adjustment, improving installation efficiency. Each clamp is strictly tested for clamping force and compatibility to ensure safe use. With dual-purpose design and reliable performance, it simplifies accessory selection and provides a universal fastening solution for diversified PV panels.

Features

This universal clamp fits both framed and frameless PV panels, enhancing project applicability. High-strength aluminum alloy ensures stable clamping and long service life. Built-in protective pads prevent panel surface scratching and pressure concentration. Anti-corrosion anodized surface resists weathering and rust for outdoor use. Optimized structure provides even force distribution and high wind resistance. Simple bolt installation enables fast and convenient construction. Universal design matches most mounting brackets and rail systems, reducing accessory types. Stable performance adapts to temperature changes and vibration without loosening. It is a versatile, safe and reliable fastening solution for various types of solar panels.

Specification

Parameter Specification Details
Product Name Solar Mounting Bracket, PV Panel Support, Solar Racking Structure
Material AL6005-T5 Aluminum Alloy; Q235B Hot Dip Galvanized Steel
Surface Treatment Anodized (Aluminum); Hot Dip Galvanized (Steel); Pre-galvanized
Structure Type Fixed, Adjustable, Roof Mount, Ground Mount, Universal Type
Suitable Panel 150W–700W Monocrystalline & Polycrystalline PV Panels
Adjustable Angle 0°–60° (adjustable type); Fixed (custom angle)
Wind Load Resistance Up to 60m/s (130mph)
Snow Load Capacity 1.2–2.0 kN/㎡
Panel Orientation Portrait / Landscape
Installation Type Bolt Fastening, Modular Assembly, No Welding
Application Residential Rooftop, Commercial Roof, Solar Farm, Ground PV Station
Working Temperature -40℃ ~ +120℃
Service Life Aluminum: 25–30 years; Galvanized Steel: 20–25 years
Certification ISO9001, CE, TUV, SGS Test Report Available
Standard Length Customizable according to panel size
Thickness Aluminum: 1.8–3.0mm; Steel: 2.0–4.0mm
MOQ 100 sets / Small trial order acceptable
OEM & ODM Size, hole, color, logo, packaging all customizable
Packing Carton + Pallet; Custom packaging support
Supply Ability Mass production, factory wholesale, fast delivery



30-60mm Solar Mounting Clamp For Framed & Frameless PV Panels


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
