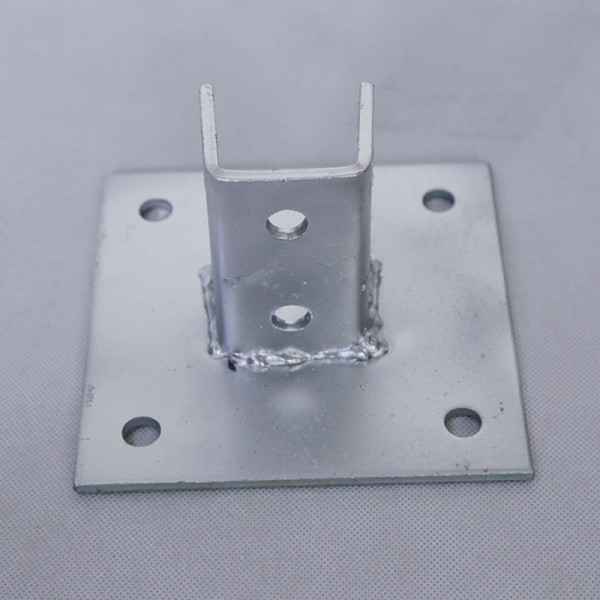

Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern
Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern
Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern
Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern
Specifications
Delivery Time :
15-20 work days
Compatible Channel :
41×21mm Strut Channel
Snow Load :
1.2–2.0kN/㎡
Price :
Discuss
Surface Treatment :
Hot Dip Galvanized (HDG)
MOQ :
500 pcs
Brand Name :
Jiucan Metal
Payment Terms :
T/T, T/T
Thickness :
4-6mm/ Customized
Supply Ability :
50 to 80+ tons/day
Place of Origin :
Hebei,China
Material :
Q235/Steel
Packaging Details :
Pack According To The Product Size/Customized
Hole Type :
Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Sample :
Free
Working Load :
150kg–800kg (According to thickness & structure)
Tolerance :
±3%
Certification :
ISO9001
Product name :
Solar Racking Foundation
Hole Spacing :
50mm / Standard 47.6mm
Packing :
Standard export packing
Size :
Standard size
Description

Hot Dip Galvanized Solar Bracket Mount Base

Introduction

Our universal adjustable solar panel mounting base offers flexible installation for various photovoltaic system layouts. Made of high-strength galvanized steel, it supports angle and position fine-tuning to adapt to different roof slopes, ground terrains and solar irradiation conditions. The adjustable design allows installers to optimize panel tilt angles for maximum sunlight absorption and power generation efficiency. Suitable for residential, commercial and industrial solar projects, it fits most standard solar panels and mounting rails. The base features multiple mounting holes and adjustable slots for on-site flexibility without additional processing. Hot-dip galvanized treatment ensures long-term anti-corrosion performance in outdoor environments. Modular design enables quick assembly and disassembly, improving construction efficiency. Strictly tested for strength and durability, it meets international PV mounting requirements and provides a flexible, universal solution for diversified solar installations.

Features

This adjustable solar mounting base supports multi-directional position and angle adjustment to adapt to complex installation environments. High-strength galvanized steel ensures stable support and long service life. Adjustable slots and hole positions allow on-site optimization without cutting or drilling, greatly improving construction flexibility. The universal structure matches most solar panel sizes and mounting rail systems, reducing project preparation costs. Its anti-corrosion surface maintains performance in humid, coastal and outdoor conditions. Stable load distribution enhances wind resistance and seismic performance. Easy assembly saves labor and shortens project cycles. With high adaptability and reliable stability, it helps maximize solar energy absorption and provides flexible, efficient support for photovoltaic systems.

Specification

Item Specification Details
Product Name Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size 100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness 3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel 41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing 40mm / 50mm / 60mm / Standard 47.6mm
Working Load 150kg–800kg (According to thickness & structure)
Wind Pressure Resistance Up to 60m/s (Customizable for high wind area)
Snow Load 1.2–2.0kN/㎡
Temperature Range -40℃ ~ +120℃
Anti-Corrosion Grade HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification ISO9001, CE, SGS, TUV Test Report Available
Application Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ 100pcs / Accept Small Trial Order
OEM & ODM Size, Thickness, Logo, Packaging All Customizable
Packing Carton + Pallet; Custom Packing Acceptable
Service Life 20–30 years

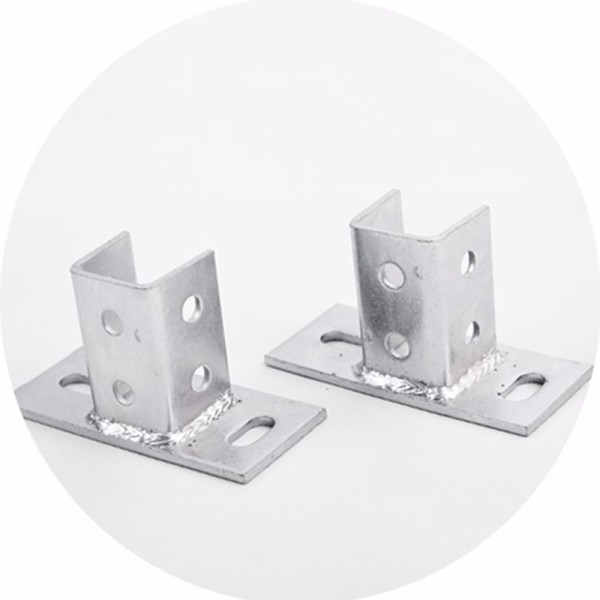

Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
