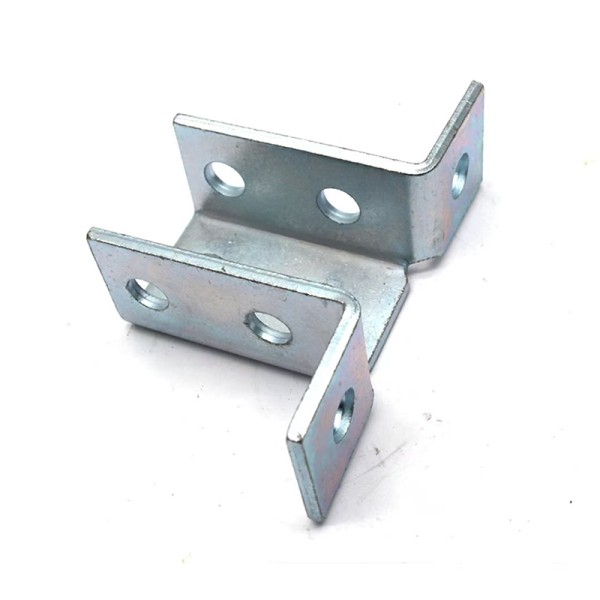

Aluminum Solar Mounting Bracket Base For PV System Installation
Aluminum Solar Mounting Bracket Base For PV System Installation
Aluminum Solar Mounting Bracket Base For PV System Installation
Aluminum Solar Mounting Bracket Base For PV System Installation
Specifications
Delivery Time :
15-20 work days
Compatible Channel :
41×41mm Strut Channel
Tolerance :
±3%
Price :
Discuss
Surface Treatment :
Hot Dip Galvanized (HDG)
Supply Ability :
50 to 80+ tons/day
Payment Terms :
T/T, T/T
Thickness :
3-6mm/ Customized
Place of Origin :
Hebei,China
Material :
Q235/Steel
Hole Spacing :
40mm / 60mm / Standard 47.6mm
Packaging Details :
Pack According To The Product Size/Customized
Hole Type :
Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Size :
Standard size
Sample :
Free
Certification :
ISO9001
Product name :
Solar Racking Foundation
Packing :
Standard export packing
MOQ :
500 pcs
Brand Name :
Jiucan Metal
Description

Aluminum Solar Mount Base for PV System Installation

Introduction

This aluminum alloy solar mount base is a lightweight, high-strength foundational component for modern photovoltaic systems. Made of premium AL6005-T5 aluminum with anodized surface treatment, it combines light weight with excellent corrosion resistance, ideal for rooftop solar installations where weight control is critical. The base effectively connects solar mounting rails to roof surfaces, providing stable support while reducing structural load. It is widely used in residential rooftops, commercial buildings and lightweight solar projects. Aluminum material naturally resists rust and oxidation, requiring no regular maintenance and offering a service life of over 25 years. Precision extrusion and CNC processing ensure accurate dimensions and fast assembly.

Features

The aluminum solar mount base features lightweight AL6005-T5 alloy construction for high strength and low weight. Anodized surface treatment provides excellent anti-corrosion, anti-UV and anti-aging performance. Its lightweight design reduces roof load while maintaining reliable structural stability. Precision machining ensures accurate dimensions and smooth installation. The aluminum material is rust-proof and maintenance-free, suitable for long-term outdoor use. Universal compatibility supports most aluminum solar mounting systems for flexible project design. High weather resistance ensures stable performance in extreme temperatures and humid environments.

Specification

Item Specification Details
Product Name Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size 100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness 3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel 41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing 40mm / 50mm / 60mm / Standard 47.6mm
Working Load 150kg–800kg (According to thickness & structure)
Wind Pressure Resistance Up to 60m/s (Customizable for high wind area)
Snow Load 1.2–2.0kN/㎡
Temperature Range -40℃ ~ +120℃
Anti-Corrosion Grade HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification ISO9001, CE, SGS, TUV Test Report Available
Application Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ 100pcs / Accept Small Trial Order
OEM & ODM Size, Thickness, Logo, Packaging All Customizable
Packing Carton + Pallet; Custom Packing Acceptable
Service Life 20–30 years



Aluminum Solar Mounting Bracket Base For PV System Installation


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
