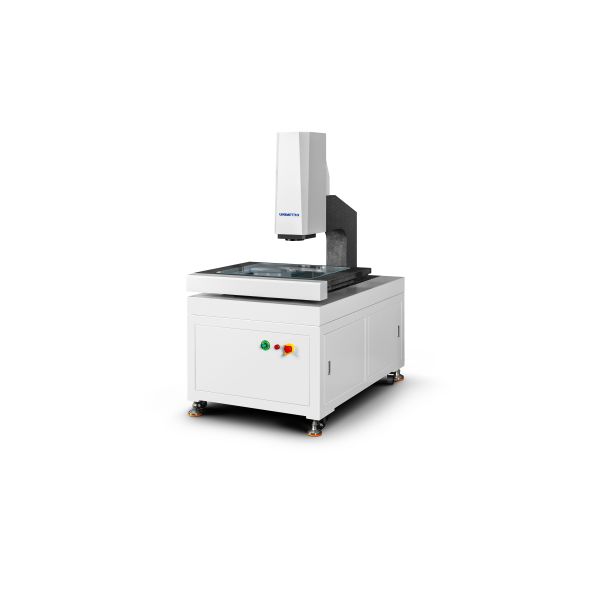

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument, featuring a high configuration with superior resolution and faster processing speed. This fixed gantry type system (HP442) offers robust functionality and advanced configuration, enabling three-axis fully automatic programmable detection.

By matching the workpiece coordinate system through programming, it automatically executes measurement processes. For repeated measurements of heavy workpieces, it includes memory, learning, and auto-programming functions, enabling rapid and accurate real-time measurement on-site. The marble construction provides high stability, strong durability, and low maintenance costs, perfectly balancing high precision, high efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.

• Resolution: 0.5μm (0.1μm optional)
• Camera: Industrial-grade color CCD
• Lens: 1x-10x variable magnification
• Magnification: 20X - 200X (varies by camera model)
• Work Distance: 85 mm
• Illumination: Programmable surface light, LED bottom parallel light (coaxial light optional)
• Drive System: CNC control, linear motor drive; joystick, mouse, keyboard control
• Linear Scale Resolution: 0.1μm

• Whole closed frame moving bridge structure with fixed measuring workpiece, providing large bearing capacity and excellent motion performance
• Finite element analysis technology integrated into mechanical design for high rigidity and precision
• Grade 000 granite base with high strength, corrosion resistance, and excellent stability
• Aluminum oxide surface treatment worktable for fast, flexible action control, durability, and aesthetics

• RENISHAW open grating ruler with 0.5μm resolution for high precision and stability
• Precision linear guide rail, ball screw grinder, and AC servo motor ensure system positioning accuracy
• 2M pixel high-definition color Giga digital camera for clear observation and stable measurement
• 6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration
• Programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system with intelligent 256-level brightness adjustment
• Full axis CNC control with AC full closed loop servo motor drive

The HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and RENSHAW full series probe brackets, enabling automatic transformation for full-scale measurement on a single device to maximize productivity.
