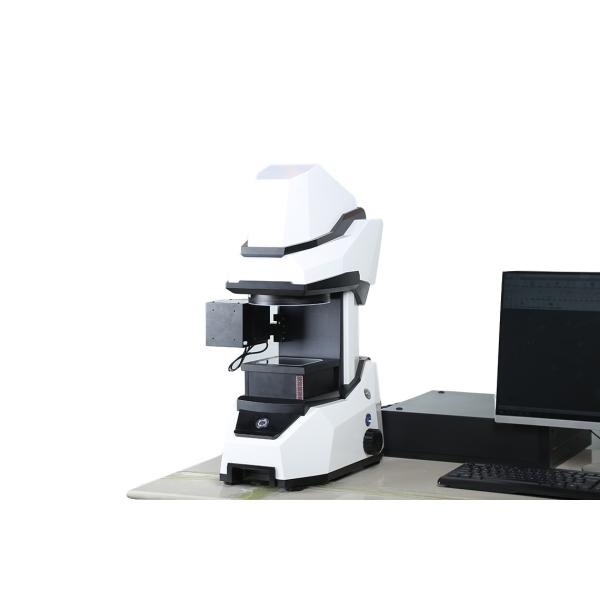

One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens

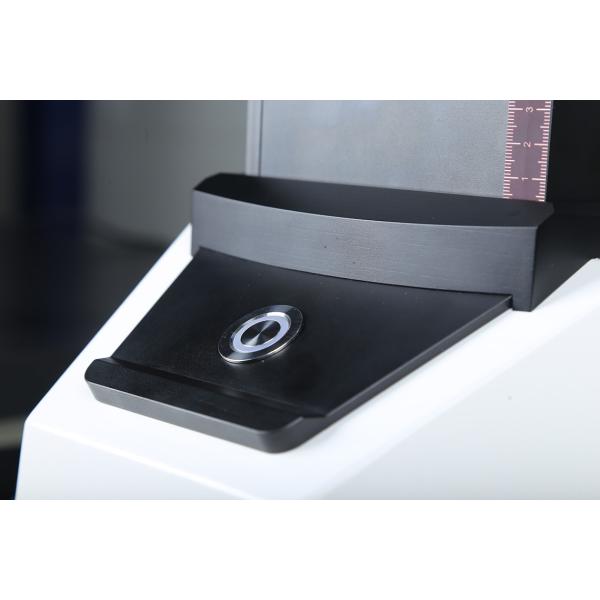

High-quality one-button measuring instrument vision measuring machine for easy measurement in factory environments. The OMQ100 series one-button measuring instrument features double telecentric high-resolution optical lens technology, combined with high-precision image analysis algorithms, and integrated into the one-button flash measurement principle. The instrument can automatically locate the measuring object, match templates, perform evaluation measurements, and generate reports according to the workpiece shape. Simply press the start key to achieve one-button fast and accurate measurement.

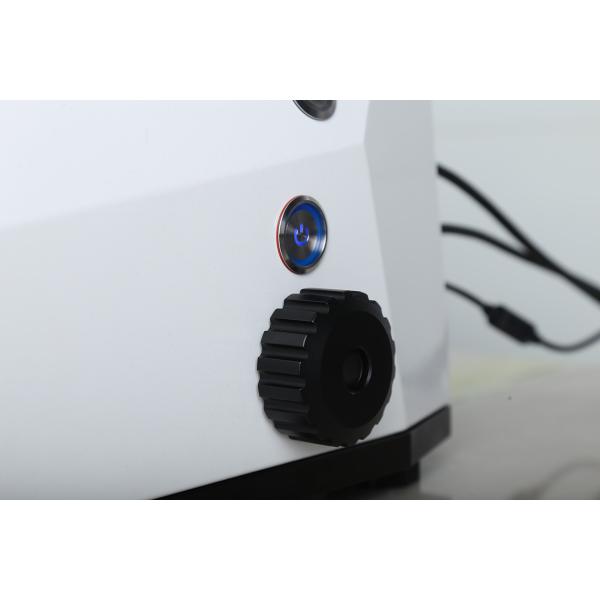

One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens
Product Advantages
Traditional measuring instruments such as projectors, image measuring instruments, tool microscopes, profilers, vernier calipers, and micrometers face numerous challenges including time-consuming object positioning, origin positioning, long batch operation times, inconsistent results between different operators, and complicated data statistics management.
The OMQ100 series one-button measuring instruments solve these difficult problems with the following advantages:
  • Automatic Matching: Program once for product categories, store permanently, and automatically match during measurement.
  • Automatic Measurement: Can cooperate with robotic arms to achieve fully automated measurement.
  • Simple Calibration: Only one functional calibration key needed, ensuring measurement accuracy through multi-angle, omnidirectional, and full-field calibration.
  • Easy to Use: Humanized and intelligent software design requiring minimal user operation - easy to learn and use.
  • Measuring Functions: Two-dimensional measurement of points, lines, circles, arcs, angles, point-to-line distances, and line-to-circle distances.
  • Data Auto-Saving: Measurement results automatically saved to computer including date, product batch numbers, and other information.
  • Contour Scanning: Quickly scan contours and export DXF files.
Measurement Software

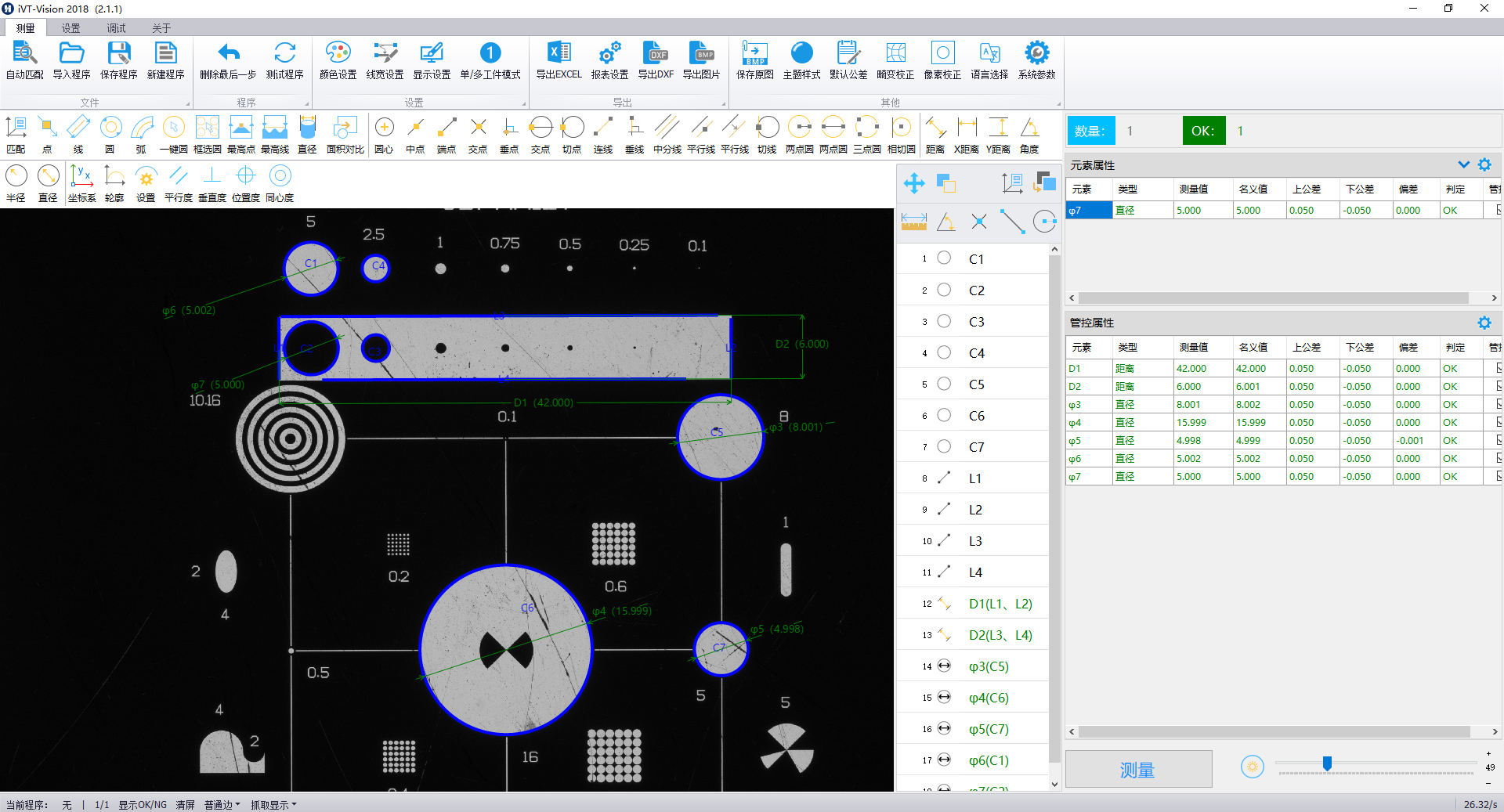

Software Interface
One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens

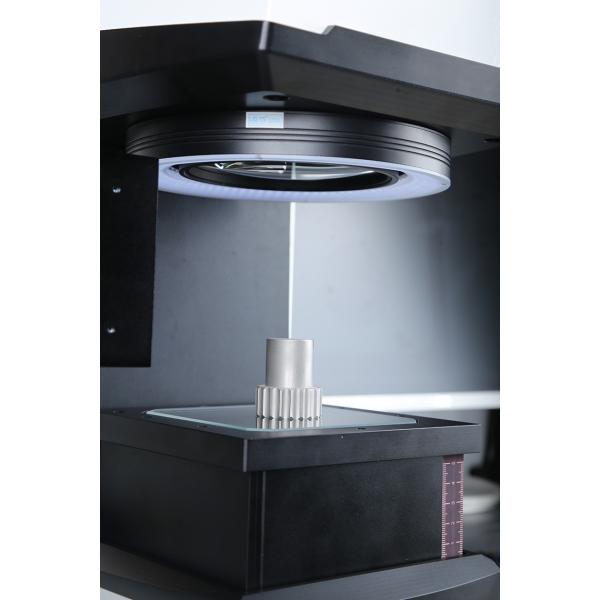

Measurement Mode
The measurement mode is divided into single workpiece measurement and multi-workpiece measurement. The system can automatically search for set measurement templates with one key and quickly and accurately measure batches.
Application Fields
OMQ100 series one-button measuring instruments are suitable for machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical devices, clocks, cutting tools, and other fields.

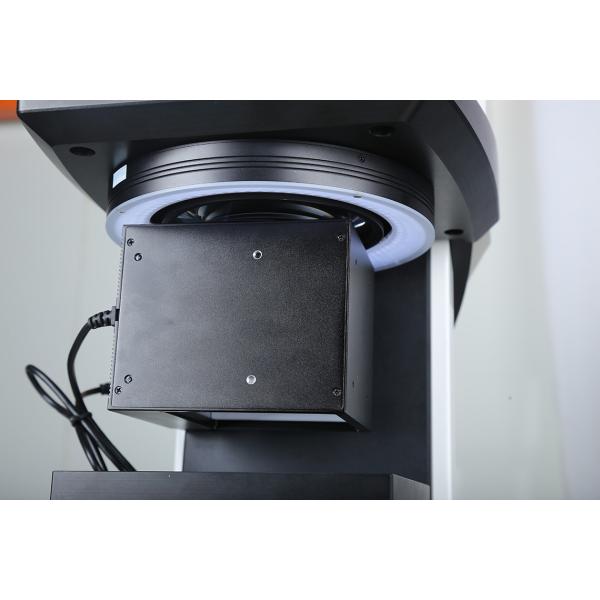

One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens One-Button Vision Measurement System Featuring High-Resolution Double Telecentric Optical Lens
Specifications
Model OMQ100M OMQ100C OMQ100D
Z-axis Moving Range (mm) 45 60
Range (mm) 83×55 83×63 83×63/40×30
External Dimensions (mm) 500×380×750
Weight (kg) 28 30
Bearing (kg) 3
Image Sensor 6 megapixel industrial camera 12 megapixel industrial camera 0.088X: 12 megapixel industrial camera
0.176X: 12 megapixel industrial camera
Camera Lens Double telecentric optical lens Double-rate double telecentric optical lens
Magnification 0.088X 0.088X+0.176X
Accuracy (μm) ±(3+L/50) ±(2.5+L/50) 0.088X: ±(2.5+L/50)
0.176X: ±(1.5+L/50)
Minimum Display Unit (mm) 0.0001
Z-axis Working Distance (mm) 120

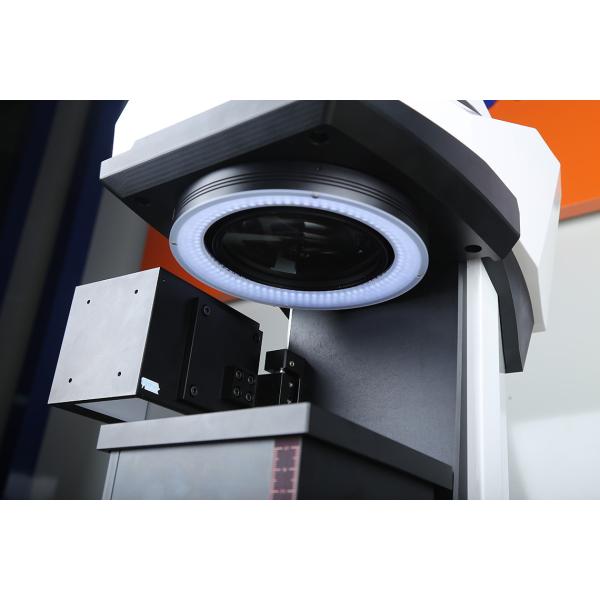

Light Source 200-level programmable light source. 201 - Contour light: telecentric parallel light source. Surface light: ring light source (optional, external coaxial light)
Image Processing IVT-VISION-OneKey
Software Temperature: 22℃±2℃ Humidity: 30~80%
Work Environment Vibration: <0.002mm/s, <15Hz
Power Supply 220V/50Hz
Selection Details:
  • OMQ100M Optional matching: 12 million industrial cameras (range: 83 x 63), 20 million industrial cameras (range: 100)
  • OMQ100C Optional matching: 20 million industrial cameras (range: 100)
  • OMQ100D-0.088X Optional matching: 20 million industrial cameras (range: 100)
  • Selection of 20 million industrial cameras (range: 100): (+3+L/50)
  • Standard block is used as the product under test
