VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function
VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function
Specifications
Brand Name :
UNIMETRO
Model Number :
ULTRA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
20 per month
Delivery Time :
15~20 work days
Packaging Details :
Wooden Case
Certification :
CE,ISO
Price :
Discussible
Product Name :
Optical Measuring Equipment
Dimension :
1750*920*1700
Measuring Range :
400*300*200mm
Measuring Accuracy :
2.5+L/200um
Repeatability :
2.5
Linear Scale Resolution :
0.1um
Driving System :
CNC control,close-loop AC Servo driving system,joystick,mouse or keyboard control
Illumination :
Programmable 8 sections LED ring light parallel LED contour light
Description
VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function
0.1µm Optical Measuring Equipment / VMA4030 With Fast Focusing Function

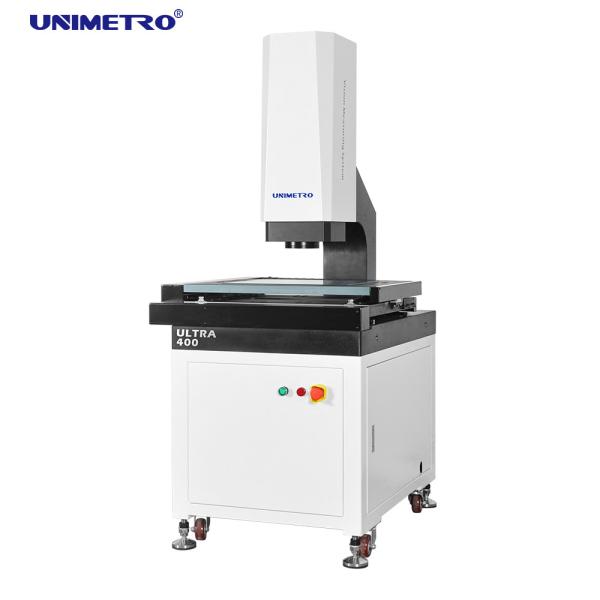

ULTRA series Optical Measuring Equipment is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with 3 axis automatic motorized control. It is equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.

Equipment Characteristics
Quality Details Control
  • Granite base and column, excellent stability
  • Aluminum work stage for fast reacting and flexible motion control
  • Work stage with hard oxidation surface processing for anti-scratch protection
  • Standard precision linear guide, grinding ball screw and AC servo motor for precision and stability
  • Integrated control system with embedded motion control and signal control for stable performance
High Performance Configuration
  • XYZ three axis CNC automatic control and accurate positioning
  • 0.1 µm high precision glass linear scale for positioning and measurement accuracy
  • GIGA high resolution color camera for clear observation and accurate measurement
  • 6.5x high-resolution click zoom lens with accurate doubling and one-time pixel correction
  • Programmable surface 5-ring 8-division LED Cold Illumination with intelligent light adjustment
Flexible Expansibility
  • Multiple types of non-contact sensors and fast fixturing systems available
  • Movable color LED ring light for different materials and shapes
  • Compatible with touch probe, non-contact measuring sensors and robot arm
  • Highly increases measuring efficiency through flexible expansion options
Functions Introduction
  • Software automatically identifies and measures elements like lines and circles
  • Intelligent processing functions including out of tolerance red warning, pause functions, and manual measurement options
  • Breakpoint setting function for intelligent switching between manual and automatic measurement
  • Powerful laser measurement function for high-speed flatness measurement, surface scanning, and precision curved surface analysis
  • Auxiliary dimming indication function to improve accuracy and efficiency
Technical Parameters
Model ULTRA 300 ULTRA 400 ULTRA 500 ULTRA 600
X/Y-axis Travel (mm) 300x200 400x300 500x400 600x500
Z-axis Travel 200mm (can be raised according to customer requirements)
X/Y/Z-3 axis Linear Scale Glass Linear Scale Resolution: 0.1µm
Guidance Mode Precision linear guide, double-track double slider guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Accuracy XYZ-axis: ≤2.5+L/200µm
Repeatability ±2.5µm
Video System - CCD High definition 1/3" Color CCD Camera
Lens 6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X (21.5" monitor)
Illumination System - Contour LED parallel contour illumination
Illumination System - Surface 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Magnification 0.7X~4.5X
Measuring Software UNIMETRO 2D Fully Auto Measuring Software
Load Capacity 25Kg
Working Environment Temperature 20℃±2℃, Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Power Supply 220V/50Hz/10A
Dimension (W*D*H) (mm) 1600*780*1700 1750*920*1700 1900x1080x1700 1050*1280*1700
Net Weight (kg) 380 450 600 800
Product Gallery
VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function
Our Clients & Agents
VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We mainly produce Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will advise you on suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. We have improved breakable parts and maintain stable product quality.
