Full-Automated Video Metrology Measuring Instrument For Industrial Inspection

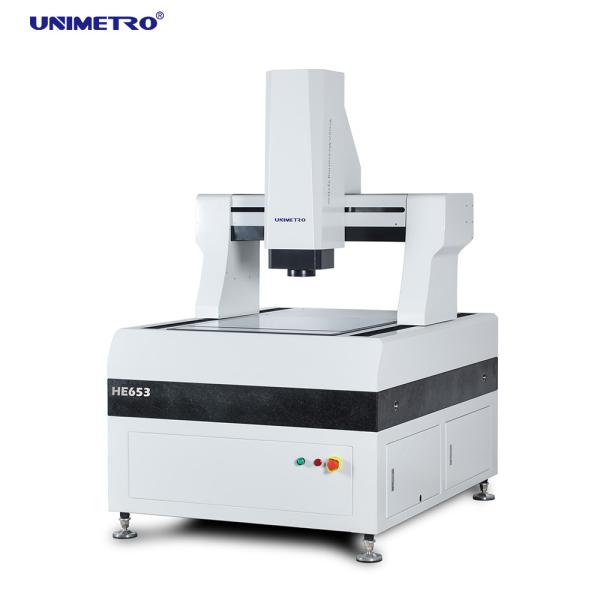

HE series gantry type CNC Visual Measurement Machine is specially designed for high-precision and large-scale measurement. It adopts fully closed mobile bridge structure to keep the measurement work fixed. It combines high-precision and high-efficiency organically to effectively detect the geometric parameters of various products. At present, it is mainly used in PCB circuit board, copper clad laminate, flat glass, liquid crystal module, knife mould, insulating material, precision sheet metal and other industries.

Descrition

Visual Measurement Machine ---- High Rigid Structure Design
>> The whole closed frame moving bridge structure is adopted, fixed measuring workpiece , large the bearing capacity , and the good motion performance.
>> Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
>> Grade 000 granite base, high strength, corrosion resistance and good stability.
>> Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.

Visual Measurement Machine High ---- Precision Configuration
>> RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.(0.1um for option)
>> Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
>> 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.
>> 6.5X high-definition optical lens, accurate automatic zoom, fast pixel calibration.
>> Programmable 5-ring 8-sections LED surface light source, parallel LED contour light source system.
>> Full axis automatic control, AC full closed loop servo motor drive.

Visual Measurement Machine Optional Multi-sensor For 3D Measurement
HE series large gantry type Visual Measurement Machine can be equipped with a variety of 3d sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
