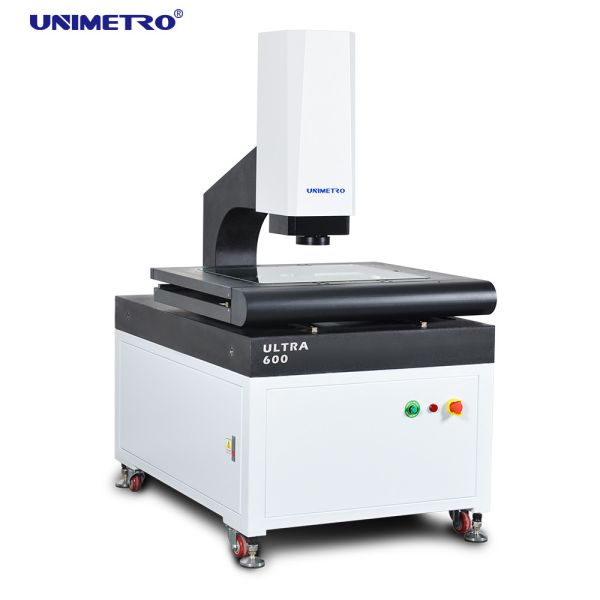

ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
Specifications
Brand Name :
UNIMETRO
Model Number :
ULTRA
Certification :
ISO, CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negociatable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50-60sets per month
Delivery Time :
8-15days
Packaging Details :
Wooden case+ Vacuum packing
Product Name :
2.5D Optical Dimension Measuring Machine
Model :
ULTRA
Measuring mode :
3-axis automatic
Features :
High accuracy, fast speed
Accuracy :
2.5+L/200
Repeatability :
2.5um
Optional :
Camera, Probe, Laser, etc.
Support :
OEM, ODM, Customized
Description
2.5D Optical Dimension Measurement System with Optional Renishaw Probe
ULTRA Series CNC VMS
Technical Specifications
Model ULTRA 300 ULTRA 400 ULTRA 500 ULTRA 600
X/Y-axis Travel (mm) 300×200 400×300 500×400 600×500
Z-axis Travel 200mm (can be raised according to customer requirements)
X/Y/Z-3 axis Linear Scale Glass Linear Scale Resolution: 0.1μm
Guidance Mode Precision linear guide, double-track double slider guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Accuracy XYZ-axis: ≤2.5+L/200μm
Repeatability ±2.5μm
Video System High definition 1/3" Color CCD Camera
Lens 6.5X continuous zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X (21.5" monitor)
Illumination System LED parallel contour illumination + 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Magnification 0.7X~4.5X
Measuring Software UNIMETRO 2D Fully Auto Measuring Software
Load Capacity 25Kg
Working Environment Temperature 20℃±2℃, Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Power Supply 220V/50Hz/10A
Dimension (W×D×H) (mm) 1600×780×1700 1750×920×1700 1900×1080×1700 1050×1280×1700
Net Weight (kg) 380 450 600 800
Key Features
Flexible Configuration Combination

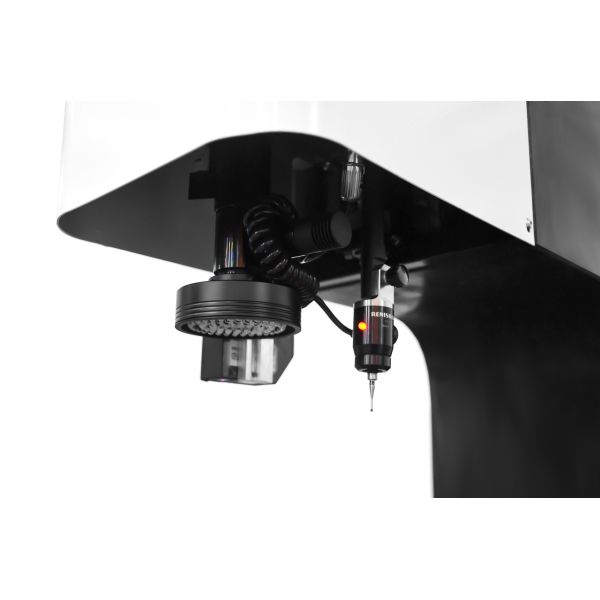

Standard configurations meet most end-user needs, with customizable hardware assembly based on actual requirements. For simple height testing, optional accessories like OMRON laser or Renishaw probe can be added.

Higher Accuracy Control

In dimension metrology, accuracy is paramount. UNIMETRO implements 6 inspection links, from raw material sampling to 48-hour accuracy testing before shipment, ensuring superior measurement precision.

Efficient Measurement Software
  • External-Array RationalVue composite measuring software provides powerful 2D/3D composite measuring functions
  • Simple, intuitive operation interface for efficient measurements
  • Automatic measurement programs enable efficient batch processing
INSPECT 3D Vision Measuring Software
ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
  • Flexible user program
  • Creating reference elements
  • Powerful edge detecting function
  • Supporting multiple external accessories
  • Auto calculation of geometrical tolerance elements
  • Fast and convenient measurement of complex products
Company Information
ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
Our Clients & Agents
ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe ULTRA Series 2.5D Optical Dimension Measurement System with High Accuracy 3-Axis Automatic Measuring Mode and Optional Renishaw Probe
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. We have enhanced durability on breakable parts, ensuring reliable product quality.
