BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
Specifications
Price :
Discussible
Certification :
CE,ISO
Brand Name :
UNIMETRO
Model Number :
BASIC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
7 work days
Packaging Details :
Case box
Description

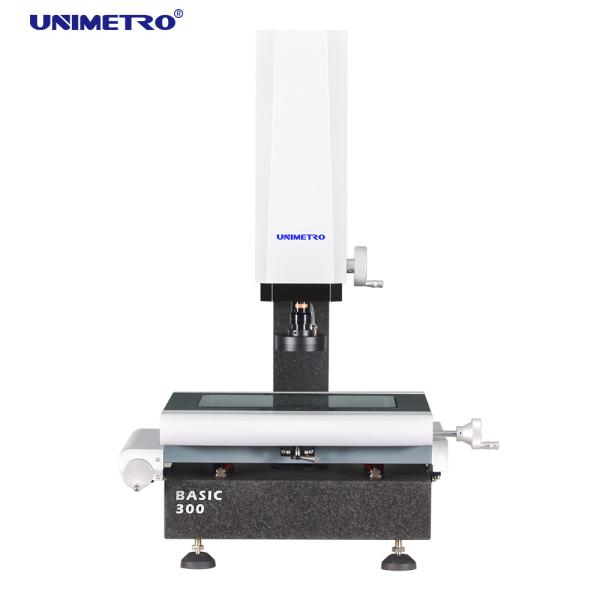

Manual Optical Instrument Video Measuring Machine for 2d Measurement
Vision measurement machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
Items

BASIC 200

Dimension(mm)
(L*W*H)

550 X 540 X 830

Measuring range(mm)(X*Y*Z)

200*100*150

Accuracy(μm)

2.5+L/200

Repeatability(μm)

2.5

Weight(kg)

140

Image and measurement

CCD

1.2M HD digital camera

Zoom lens

Manual zoom lens 0.7-4.5X(Optional: electronic magnification signal feedback lens)

Magnification

18-195X(According to different models of optional cameras, the magnification will change accordingly; the actual magnification is subject to the measured data)

FOV

8.1~1.3mm(FOV will change according to the different matching schemes of the camera and the lens. Actual FOV field of view is subject to the measured data)

Work distance

90mm

Linear scale resolution

0.5μm

Drive system

X/Y/Z axis manual control

illumination system

Programmable LED 8 section ring surface light, parallel light at the bottom of the LED (optional: coaxial light)
Software Functions
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring. The software is offering full English language UI, also allows new language development.
Application
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
AUTO PARTS MOULD HARDWARE ELECTRONIC COMPONENT
Company Information
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
Our Client&Agent
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines
FAQ
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines Q1: Are you a factory or trading company ?
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines A1: We are a factory and giving you the quickest reply in 24 hours.
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines Q2: What's your company mainly in?
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines Q3: How to Choose the Appropriate Specification?
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines Q4: Do you accept customized service?
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines Q5: What is your warranty period?
BASIC 200 Manual Vision Measuring System for 3C Components / Series of Vision Measurement Machines A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
