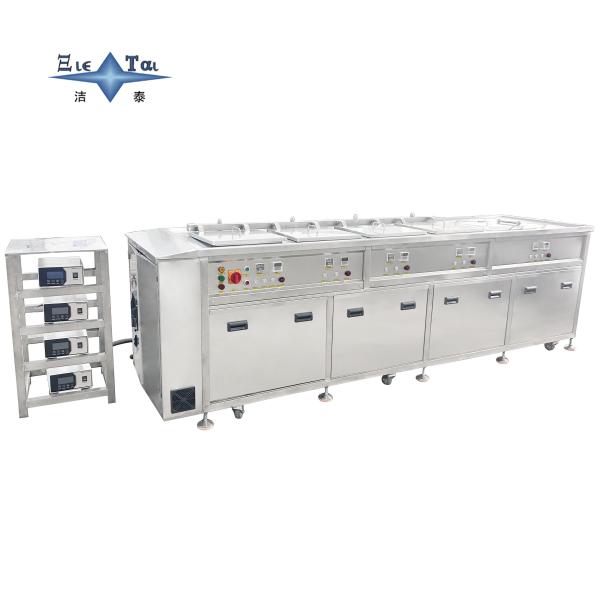

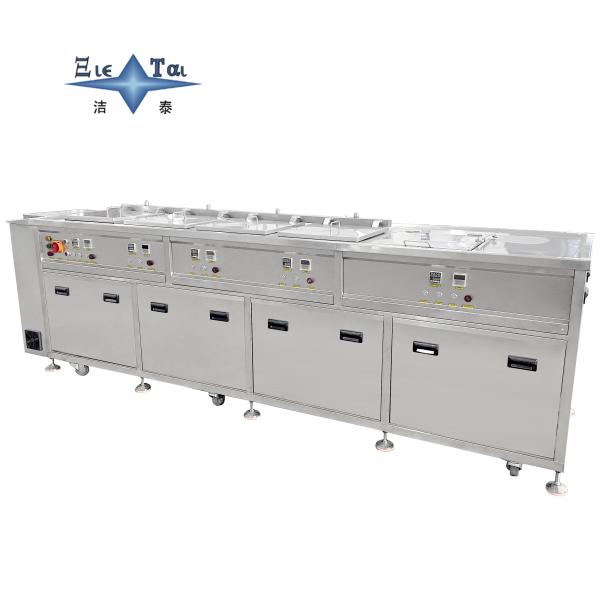

Four Tank Custom Ultrasonic Cleaner 50KW Including Cleaning, Rinsing, And Hot Air Drying.
Four Tank Custom Ultrasonic Cleaner 50KW Including Cleaning, Rinsing, And Hot Air Drying.
Four Tank Custom Ultrasonic Cleaner 50KW Including Cleaning, Rinsing, And Hot Air Drying.
Four Tank Custom Ultrasonic Cleaner 50KW Including Cleaning, Rinsing, And Hot Air Drying.
Specifications
Brand Name :
Jietai
Model Number :
JTM-50109FD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥80000
Payment Terms :
T/T
Supply Ability :
CE, FCC, ROHS, etc.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film. Dimensions: 1.5M*0.8M*1.2M
Name :
Custom Ultrasonic Cleaner
horsepower :
50KW
Weight :
1200KG
Power :
50KW
Overall Dimensions :
5M×1.2M×1.2M
Number of Tanks :
4
Cleaning Temperature :
60℃
Cleaning Frequency :
28KHZ-40KHZ
Type :
Ultrasonic Cleaning, Rinsing, Hot Air Drying
Model :
JTM-50109FD
Description

Jietai/Customized Ultrasonic Cleaning Equipment, Including Cleaning, Rinsing, And Hot Air Drying.

Customized Structure: Balancing Durability and Adaptability
Material Options:
  • Tank Body: 304 stainless steel (temperature-resistant up to 100℃, suitable for water-based cleaning) or PP polypropylene (acid/alkali-resistant, suitable for solvent-based cleaning fluids, pH 2–13);
  • Ultrasonic Transducers: Imported piezoelectric ceramic plates (PZT-8 material), with conversion efficiency ≥95% and service life ≥10,000 hours.
Typical Application Scenarios
  • Plastics Industry: Cleans silicone oil and release agent residues on injection-molded parts to ensure surface activity (contact angle <15°) before painting/electroplating;
  • Metalworking: Removes cutting fluids and rust-preventive oils from metal parts. The 28KHz low-frequency mode is ideal for deep cleaning of blind holes and threaded holes;
  • Optical Components: The 40KHz high-frequency mode handles dust and fingerprints on glass lenses and prisms, avoiding scratch damage;
  • Laboratory Settings: Manually controllable processes meet small-batch precision cleaning needs for research samples, supporting customized process parameters.
Flexible Configuration
  • Can be equipped with a shaking device (±10mm amplitude) to improve cleaning uniformity for complex workpieces;
  • Supports temperature customization (adjustable from ambient temperature to 80℃) to adapt to the chemical properties of different cleaning fluids.
  • Energy Conservation, Environmental Protection, and Human-Centered Design
    • Intelligent Energy Management: Automatically enters sleep mode during non-operation periods, with standby power consumption <5W.
    • Human-Machine Interface: A 7-inch touchscreen supports multi-language operation, real-time display of each module's operating status, fault alarms, and maintenance prompts.
    • Modular Maintenance: Vulnerable components such as transducers, heating elements, and blowers can be quickly disassembled and replaced, reducing average maintenance time to 30 minutes.
