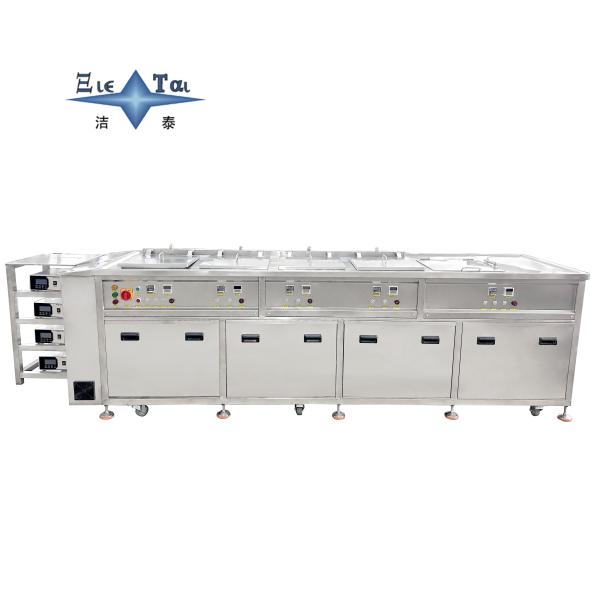

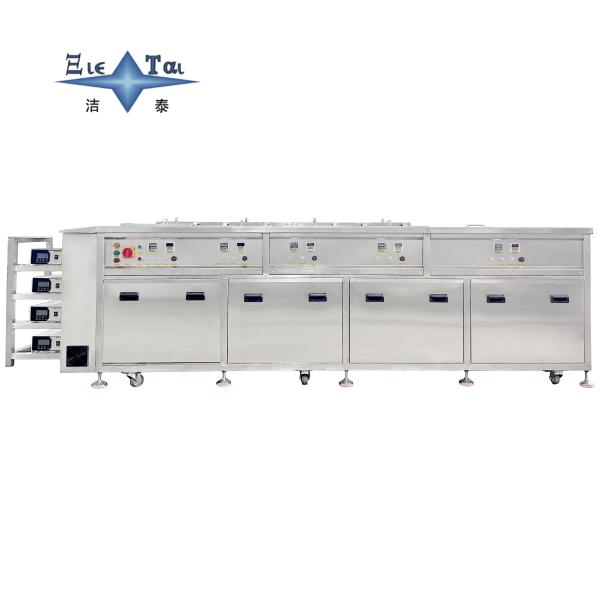

50KW Ultrasonic Washing Equipment Five Tank Dual Frequency Ultrasonic Cleaner Customized
50KW Ultrasonic Washing Equipment Five Tank Dual Frequency Ultrasonic Cleaner Customized
50KW Ultrasonic Washing Equipment Five Tank Dual Frequency Ultrasonic Cleaner Customized
50KW Ultrasonic Washing Equipment Five Tank Dual Frequency Ultrasonic Cleaner Customized
Specifications
Brand Name :
Jietai
Model Number :
JTM-50108FD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥80000
Payment Terms :
T/T
Supply Ability :
CE, FCC, ROHS, etc.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film. Dimensions: 1.5M*0.8M*1.2M
Name :
Manual Ultrasonic Cleaning Equipment
horsepower :
50KW
Model :
JTM-50108FD
Type :
Ultrasonic Cleaning, Rinsing, Hot Air Drying
Cleaning Frequency :
28KHZ、40KHZ
Cleaning Temperature :
60℃
Number of Tanks :
5
Description

Customized Ultrasonic Cleaning Equipment / Optional Frequencies Of 28KHz And 40KHz

Core Functions and Technical Highlights

  1. Dual-Frequency Switching Technology for Full-Scene Cleaning Coverage
    28KHz Low-Frequency Cleaning (Rough Cleaning Mode):
  • Strong cavitation effect (bubble diameter: ~50–100μm) effectively peels off stubborn impurities such as release agents, oil stains, and metal burrs from the surfaces of plastic parts. Suitable for complex structural components like automotive plastic interior parts and medical device casings.
  • Penetration depth reaches 5mm, capable of removing residual contaminants in gaps and blind holes.
40KHz High-Frequency Cleaning (Precision Cleaning Mode):
  • Delicate cavitation (bubble diameter: ~20–50μm) precisely handles fingerprints, dust particles (≥5μm), and other contaminants on the surfaces of precision plastic gears, optical lenses, etc., avoiding scratches or material damage.
  • Supports single-frequency independent operation or dual-frequency alternating operation, switchable with one button via a knob to adapt to different stain types.
  1. Five-Tank Integrated Process for Full-Flow Cleanliness Treatment
    Manually Controllable Process:
  • Pre-Wash Tank: Manual pre-soaking to soften heavy stains (optional mechanical stirring available);
  • Ultrasonic Cleaning Tank: Dual-frequency cleaning fluid (compatible with water-based/solvent-based solutions) for deep decontamination;
  • Rinsing Tank: Spray rinsing with pure water or alcohol to remove residual cleaning fluid;
  • Secondary Rinsing Tank: Countercurrent rinsing technology improves cleanliness by 30%;
  • Hot Air Drying Tank: Constant-temperature circulating air at 70°C (±5°C precision) achieves watermark-free drying within 30 minutes.
Manual Lifting Basket Design: Equipped with a stainless steel mesh basket (load-bearing ≤20kg), allowing manual flexible control of soaking time and loading/unloading rhythm, suitable for small-batch and multi-variety production.
