Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers
Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers
Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers
Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers
Specifications
Brand Name :
Jietai
Model Number :
JTM-4158GH
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥70000
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.Dimensions:L4200mm*W1500mm*H1200mm
Name :
Manual Ultrasonic Cleaning Machine
Model :
JTM-4158GH
Type :
Ultrasonic Cleaning, Rinsing, Hot Air Drying
Cleaning Temperature :
70℃
Overall Dimensions :
4.1M×1.3M×1.5M
Power :
40KW
Weight :
1000KG
Cleaning frequency :
28KHZ, 40KHZ
Description

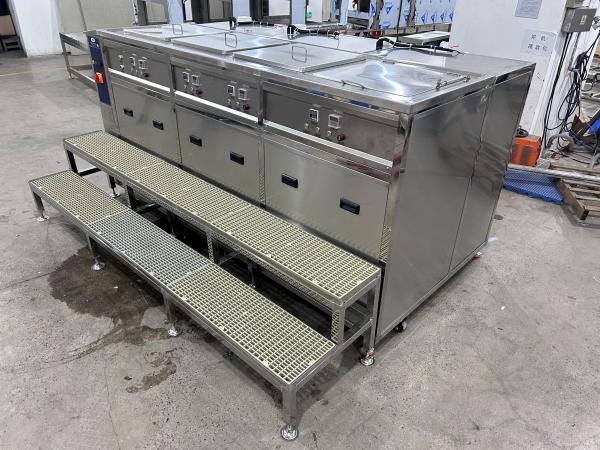

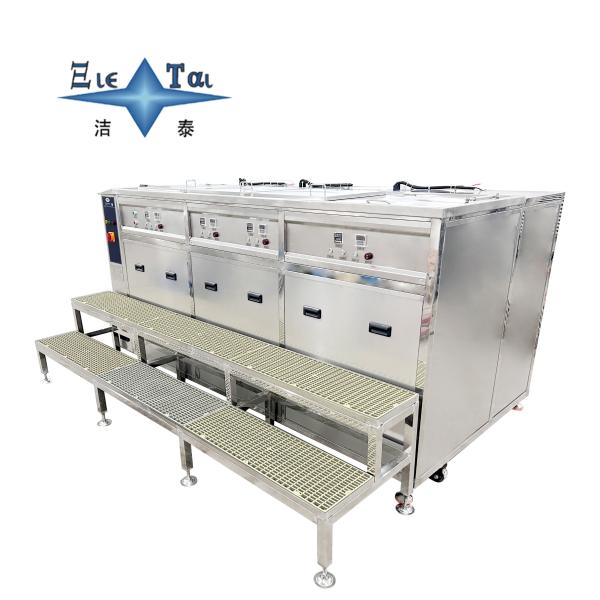

Manual Ultrasonic Cleaning Machine, With Functions Of Ultrasonic Cleaning, Rinsing, And Hot Air Drying.

Industrial-Grade Ultrasonic Cleaning Technology Innovation —— The Perfect Fusion of Precision Cleaning and High-Efficiency Energy Saving
Core Technological Breakthrough: Redefining Industrial Cleaning Standards
As a benchmark device for industrial-grade high-frequency usage scenarios, this ultrasonic cleaning machine is equipped with an adaptive frequency-conversion ultrasonic system that supports wide-frequency adjustment from 20-120kHz. It can precisely match cleaning solutions for workpieces of different materials:
  • 28kHz Low-Frequency Mode: Generates high-intensity cavitation effects to instantly break down oil stains, carbon deposits, and oxide scales on the surfaces of large metal parts such as engine blocks and hydraulic valve bodies.
  • 80kHz High-Frequency Mode: Combined with micro-bubble blasting technology, it penetrates deep into the internal structures of precision components like electronic chip pins and optical lens coating layers, achieving nanometer-level cleanliness.
The equipment uses an all-aluminum structure transducer, integrated with a new OS oscillator and feedback acquisition technology. This ensures a 30% improvement in ultrasonic output stability, a 25% reduction in power consumption, and maintains a power fluctuation accuracy of ±2% after 8 consecutive hours of operation.
Intelligent Temperature Control System: Activating the Chemical Efficiency of Cleaning Liquids
  • Pipeline Heater: Compared with traditional film-type heating, it improves thermal efficiency by 40%, capable of heating 200L of cleaning liquid from 20°C to 60°C within 15 minutes.
  • Single-Bus Digital Sensor: Monitors liquid temperature in real time and achieves a temperature control accuracy of ±0.5°C through PID algorithm, precisely activating the chemical reaction activity of acidic/alkaline cleaning agents. This is particularly suitable for highly corrosive environments such as 10% sulfuric acid or 20% sodium hydroxide.
  • Automatic Liquid Refilling Function: When the liquid level drops below the set value, the system automatically replenishes pre-mixed cleaning liquid to ensure process continuity.
Industrial-Grade Safety and Durability Assurance
  • 316L Stainless Steel Inner Tank: With a 2mm wall thickness design, it can withstand extreme acid-base environments with a pH range of 2-13, showing no corrosion traces after long-term immersion in 10% sulfuric acid.
  • Triple Safety Protection:
    • Overload Protection: Cuts off power within 0.2 seconds when the current exceeds 15% of the rated value.
    • Dry-Burning Prevention: Synchronously stops the heating module and ultrasonic generator when the liquid level is below the warning line.
    • Leakage Protection: A 30mA circuit breaker responds to grounding faults within 0.1 seconds.
  • Plastic-Sprayed Shell: The 2H hardness coating effectively resists collisions during workshop transportation, with a grounding resistance ≤4Ω, fully complying with the GB/T 19670-2005 electrical safety standard.
Typical Application Scenarios
  • Automotive Manufacturing: Cleaning oil stains from gearboxes, combined with a 10% sodium hydroxide solution, can remove 99.9% of cutting fluid residues within 5 minutes.
  • Electronic Semiconductors: Pre-packaging cleaning of wafer-level chips, achieving non-destructive cleaning at a power density of 0.3W/cm² in the 80kHz high-frequency mode.
  • Medical Devices: Pre-sterilization pretreatment of surgical instruments, combined with enzymatic cleaning agents, can remove biofilm residues in crevices.
