Continuous Ultrasonic Cleaning Line 50KHZ Automotive Ultrasonic Cleaner 23KW
Continuous Ultrasonic Cleaning Line 50KHZ Automotive Ultrasonic Cleaner 23KW
Continuous Ultrasonic Cleaning Line 50KHZ Automotive Ultrasonic Cleaner 23KW
Continuous Ultrasonic Cleaning Line 50KHZ Automotive Ultrasonic Cleaner 23KW
Specifications
Brand Name :
Jietai
Model Number :
JTM-203TGS
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
three hundred thousand
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.Dimensions: 2800*1800*900mm
Name :
Ultrasonic Cleaning Line
Power :
23KW
Weight :
810kg
Cleaning Temperature :
60℃
Cleaning Frequency :
50KHZ
Overall Dimensions :
2.8M*1.8M*1M
Model :
JTM-203TGS
Type :
Through-Type Spray Cleaning Machine
Description

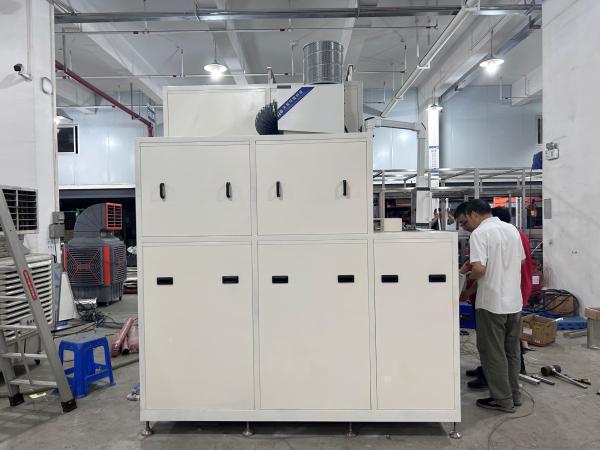

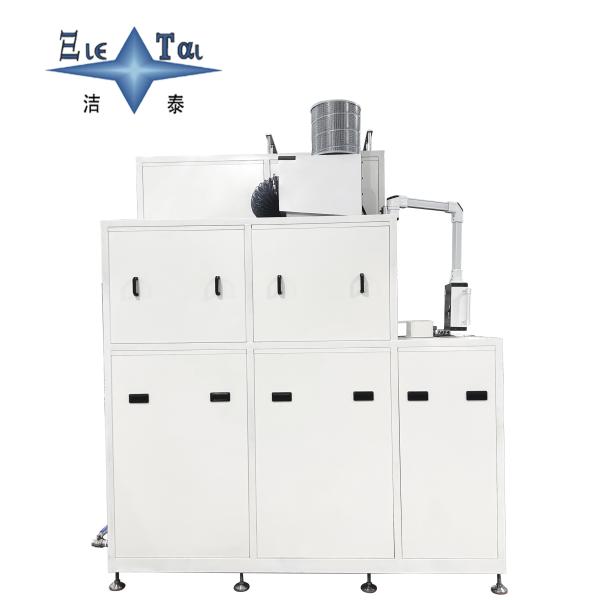

Continuous Ultrasonic Spraying Cleaning Line With Mesh Belt Conveying + Air Knife Drying, Cleaning Equipment For Electronic/Automotive Parts

Air Knife Drying Technology: Quick Drying without Watermarks

Dual Air Knife Drying System (Air Knife Zone):
  • The constant - temperature hot air at 80°C (with an accuracy of ±5°C) combined with high - speed airflow (wind speed ≥20m/s) can blow off the residual water on the surface of workpieces within 5 seconds, avoiding the watermarks left by traditional drying methods.
  • The air volume is intelligently adjusted, automatically matching drying parameters according to the material of the workpieces (metal/plastic) to prevent high - temperature deformation of plastic parts.

Energy - saving and Durable Design: Adaptable to Harsh Industrial Environments

Intelligent Temperature Control System: The temperature of the cleaning solution is automatically maintained at 70°C, with a temperature difference fluctuation of ≤±2°C. Coupled with a double - layer insulated tank body (inner layer of 304 stainless steel + outer layer of galvanized sheet), heat loss is reduced by 30%.
Modular Maintenance: The spraying arms, ultrasonic transducers, and air knife components all adopt a quick - release design. The replacement time for a single component is less than 15 minutes. It is standard - equipped with a fault self - diagnosis function, which gives real - time alarms in case of abnormal conditions.

General Machinery: Suitable for cleaning complex structural parts such as bearings and gearboxes. The mesh belt conveyor supports multi - layer stacked feeding, improving space utilization.
