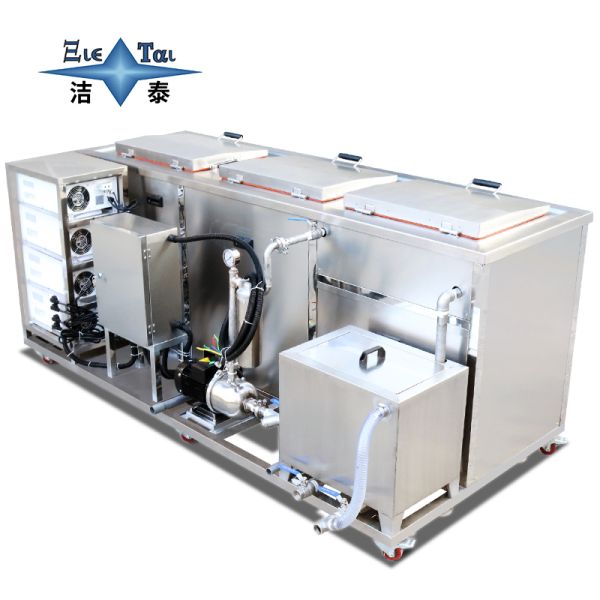

Precision Three-tank Cleaning and Drying EquipmentCleaning & Filtration + Rinsing & Purification + Constant Temperature DryingCustomized Model
Precision Three-tank Cleaning and Drying EquipmentCleaning & Filtration + Rinsing & Purification + Constant Temperature DryingCustomized Model

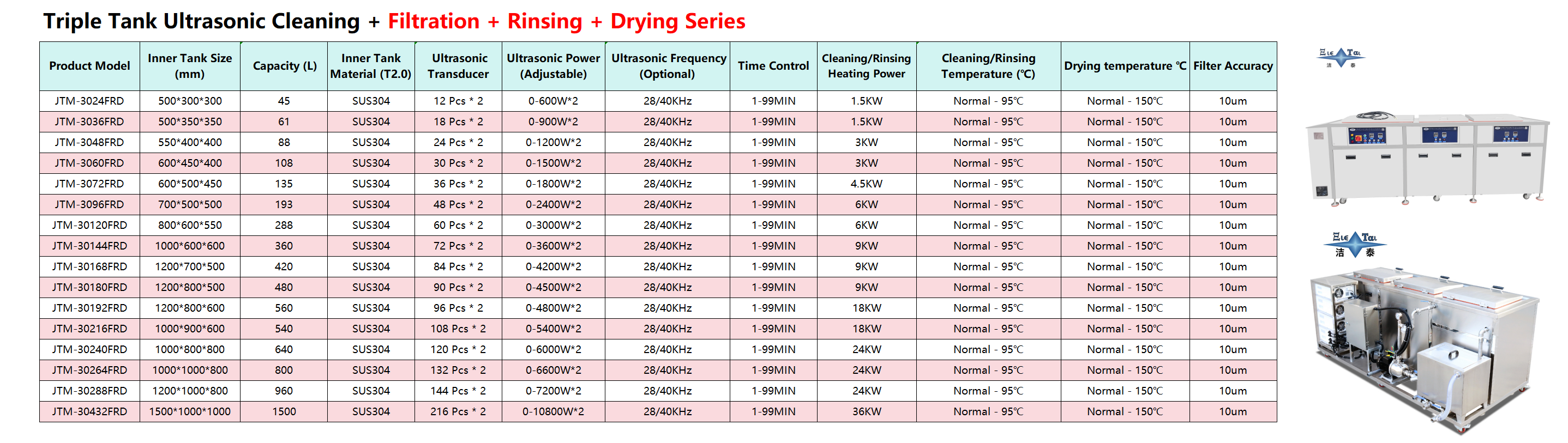

Specifications
Brand Name :
Jietai
Model Number :
JTM-3024FRD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥27000
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm
Filter Accuracy :
10um
Model :
JTM-3024FRD
Time Control :
1-99MIN
tank capacity :
45L
Heating Power :
1.5KW
Cleaning frequency :
28KHZ/40KHZ
Drying Temperature (℃) :
Normal - 150℃
Cleaning Temperature Control :
Normal - 95℃
Overall Dimensions :
500*300*300mm
Power :
0-600W*2
Description

Three-tank Ultrasonic Cleaning Machine | Integrated Industrial-grade Solution for Cleaning & Filtration + Rinsing + Drying


Solve Your Precision Cleaning Challenges with 3-in-1 Ultrasonic System

In industrial production, the cleanliness of precision components directly determines product quality and service life. Traditional multi-equipment step-by-step cleaning is not only inefficient, but also prone to secondary pollution due to process connection. Jietai Three-tank Ultrasonic Cleaning Machine (Cleaning & Filtration + Rinsing + Drying Series) reconstructs the cleaning process with an integrated design, integrating three core procedures into a single piece of equipment, providing you with a highly efficient, stable and precise industrial cleaning solution.

Core Process Analysis: Every Step is Designed for Ultimate Cleanliness


Cleaning & Filtration Tank: Deep Decontamination with Circulating Purification


Adopting adjustable ultrasonic frequency ranging from 28-130kHz, combined with a high-efficiency circulating filtration system (equipped with 5-20μm precision filter elements), it powerfully removes stubborn contaminants such as oil stains, iron filings and dust from component surfaces. Meanwhile, real-time filtration maintains the cleanliness of the cleaning fluid, preventing secondary pollution caused by contaminant reattachment. It is suitable for high-pollution load scenarios, such as degreasing of hardware parts, derusting of auto parts, and removal of welding slag from electronic components.

Rinsing Tank: Pure Water Compatible for Residue-free Purification


Supporting rinsing with pure water/deionized water, and equipped with a constant temperature control system (adjustable from room temperature to 80℃), it quickly removes residual cleaning fluid and trace impurities from component surfaces, ensuring no water marks or residues after cleaning, which meets the high-standard cleaning requirements of precision electronics, medical accessories and other fields. A dual-rinsing design is optional to further improve cleaning precision.

Drying Tank: Rapid Drying with High Efficiency and Energy Conservation


Adopting hot air circulation drying technology, both air velocity and temperature (adjustable from 40-120℃) can be precisely controlled. Combined with a sealed cavity design, it achieves rapid drying (drying time adjustable from 3-15 minutes), avoiding oxidation and rusting of components. Compared with traditional natural air drying, it improves efficiency by 80% while saving floor space and labor costs.
