Industrial-Grade Three-Tank Ultrasonic Cleaner: Filtration Circulation + Deep Rinsing + Intelligent Drying | Custom Non-Standard Design
Industrial-Grade Three-Tank Ultrasonic Cleaner: Filtration Circulation + Deep Rinsing + Intelligent Drying | Custom Non-Standard Design

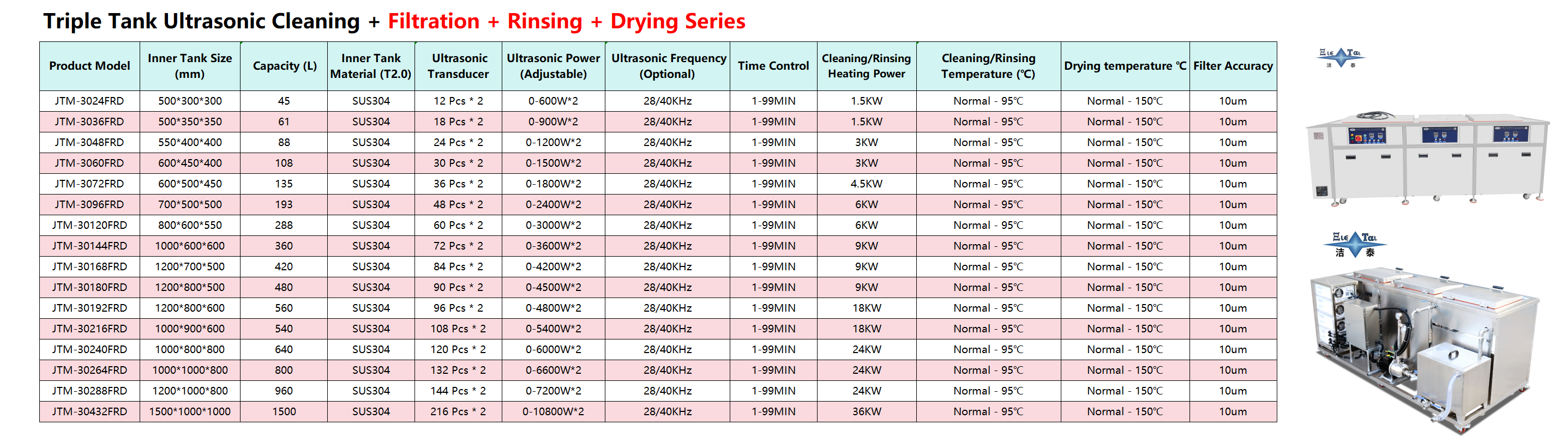

Specifications
Brand Name :
Jietai
Model Number :
JTM-3024FRD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥27000
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm
Model :
JTM-3024FRD
Overall Dimensions :
500*300*300mm
Filter Accuracy :
10um
Cleaning Temperature Control :
Normal - 95℃
Cleaning frequency :
28KHZ/40KHZ
tank capacity :
45L
Time Control :
1-99MIN
Drying Temperature (℃) :
Normal - 150℃
Heating Power :
1.5KW
Power :
0-600W*2
Description

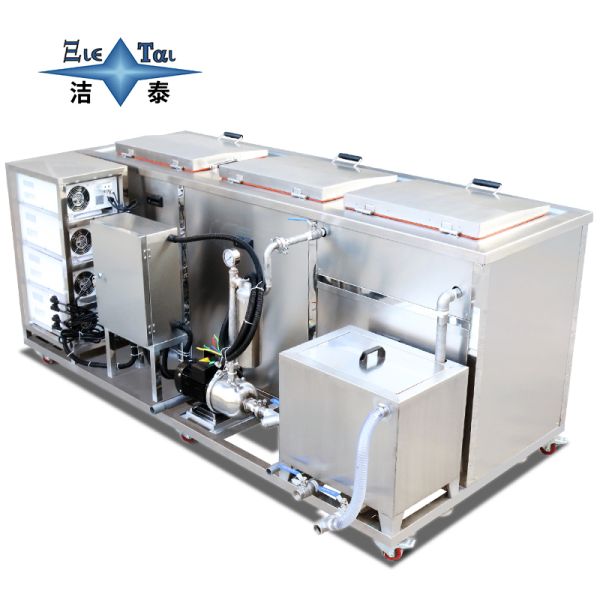

Three-tank Ultrasonic Cleaning Machine: A Tailor-made Closed-loop "Cleaning - Rinsing - Drying" Solution for Precision Components


Precision Cleaning Solution for High-Demand Industries


Whether it is the tiny gaps of electronic components, the sterility requirements of medical devices, or the high-intensity cleaning needs of auto parts, Jietai Three-tank Cleaning, Filtration, Rinsing and Drying Series can address your industry pain points with targeted process design, making the cleaning process more efficient, precise and hassle-free.

Customized Cleaning Logic for Different Industries


Electronics/Semiconductor Industry


The cleaning tank adopts high-frequency ultrasonic waves of 60-100kHz to avoid damaging precision chips and circuits; the rinsing tank is compatible with 18MΩ pure water to remove ionic residues; the drying tank uses low-temperature hot air (40-60℃) for rapid drying to prevent component oxidation, meeting the cleaning requirements of semiconductor packaging and PCB/FPC.

Medical/Dental Industry


The cleaning tank is equipped with antibacterial materials and detachable baskets for easy cleaning of instrument gaps; the rinsing tank supports sterile water circulation, complying with medical sterility standards; the drying tank features high-temperature sterilization (100-120℃) combined with UV disinfection, suitable for the cleaning and sterilization needs of surgical instruments, dental handpieces and medical accessories.

Automotive/Machinery Industry


The cleaning tank is equipped with high-power ultrasonic waves (0.8-1.2W/cm²) and heating function (room temperature to 80℃) to quickly strip heavy oil stains and metal debris; the rinsing tank is assisted by high-pressure spraying to remove stubborn residues; the drying tank uses large-airflow hot air circulation for rapid drying of large components such as engine parts, gears and bearings, improving production cycle efficiency.

Hardware/Plating Industry


The cleaning tank is integrated with a circulating filtration system and compatible with degreasers to completely remove oil stains and oxide layers from component surfaces; the rinsing tank adopts a multi-stage design to ensure no cleaning fluid residue, enhancing plating adhesion; the drying tank enables rapid drying to avoid oxidation, providing an optimal surface pretreatment for electroplating and spray coating processes.

Core Product Advantages: More Than Just Cleaning, We Truly Understand Your Production Needs


  • High-efficiency Integration: The three-tank integrated design eliminates the need for manual component transfer, reducing labor costs and secondary pollution, and improving production efficiency by over 50%.
  • Precision Control: Equipped with a PLC intelligent control system that can store 10+ cleaning programs for one-click startup. It supports remote monitoring and parameter adjustment, ideal for batch production.
  • Durability and Stability: Constructed with 304/316L stainless steel body and imported transducers (service life ≥ 8000 hours). Core components come with a 2-year warranty, ensuring stable 24/7 continuous operation.
  • Environmental Protection and Energy Saving: The cleaning fluid can be recycled through filtration, reducing consumable costs by 30%; the drying system adopts energy-saving heating tubes, with energy consumption 25% lower than traditional equipment, complying with global environmental standards.
