Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying

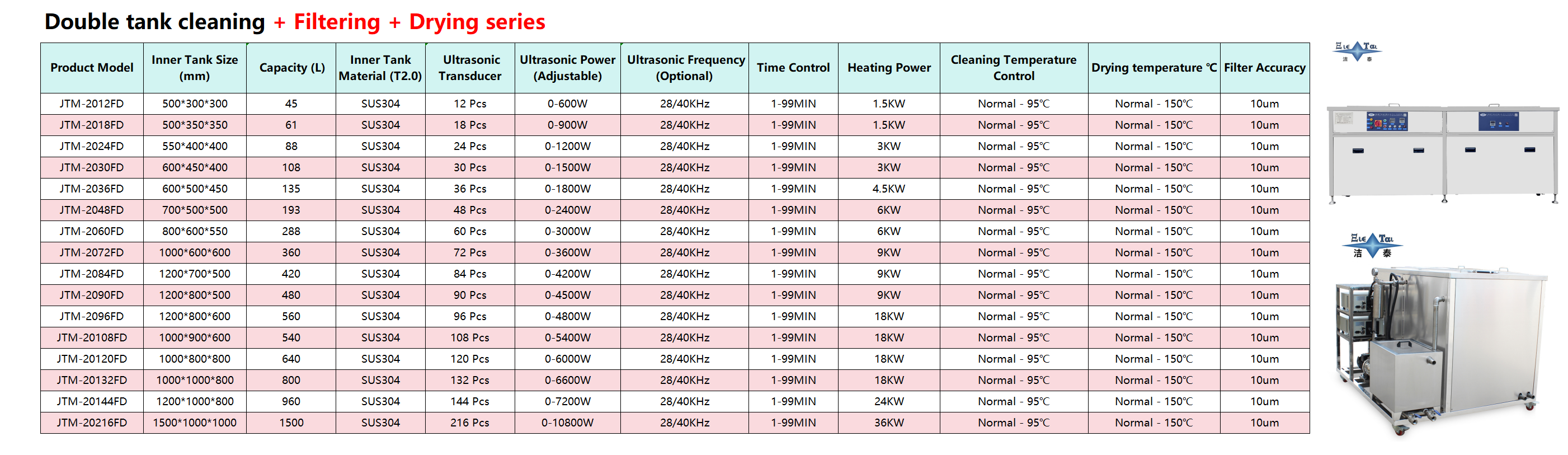

Specifications
Model Number :
JTM-2012FD
Cleaning Temperature Control :
Normal - 95℃
MOQ :
1
Delivery Time :
30-60work days
Filter Accuracy :
10um
Payment Terms :
T/T
tank capacity :
45L
Model :
JTM-2012FD
Time Control :
1-99MIN
Overall Dimensions :
500*300*300mm
Price :
￥18182
Heating Power :
1.5KW
Supply Ability :
One unit. It will take 30 to 60 days.
Drying Temperature (℃) :
Room Temperature - 150 (℃)
Place of Origin :
Dongguan, Guangdong
Cleaning frequency :
28KHZ/40KHZ
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm
Certification :
CE, FCC, ROHS, etc.
Brand Name :
Jietai
Power :
0-600W
Description
Heavy-Duty Two Tank Ultrasonic Cleaning Equipment with Circulating Filtration & Constant Temperature Drying
Core Positioning

This industrial-grade dual-tank ultrasonic cleaner provides a complete batch cleaning solution integrating ultrasonic deep cleaning, circulating filtration, and constant-temperature hot air drying. It achieves a fully connected "cleaning - filtration - drying" workflow without manual workpiece handling, effectively solving the low efficiency and secondary pollution problems associated with traditional separate cleaning equipment. As a direct manufacturer, we deliver high-performance industrial cleaning equipment with superior cost performance.

Core Functions & Technical Advantages
1. Cleaning Tank | Ultrasonic Deep Decontamination
  • Equipped with industrial multi-frequency ultrasonic transducers (20-120kHz adjustable) with over 90% uniform energy distribution
  • Strong cavitation penetrates blind holes (≤100mm depth) and tiny gaps (≥0.1mm width), thoroughly removing oil grease, metal chips, flux residue and surface oxide layers
  • Tank constructed with 2mm thick 304 stainless steel (316L optional) with precision argon arc welding for zero leakage
  • Highly corrosion-resistant tank body compatible with most industrial degreasers and rust removal solvents for long-term stable operation
2. Filtration & Drying Tank | Precision Filtration + Constant Temperature Drying
  • Built-in 5μm high-precision circulating filter with replaceable filter cartridges improves liquid utilization
  • Cleaning fluid recycling rate reaches over 70%, reducing detergent replacement frequency by 50% and cutting annual consumable costs by more than 35%
  • Stepless constant-temperature hot air circulation drying (20-120℃ adjustable, wind speed 1-3m/s, temperature tolerance ±2℃)
  • After drying, workpiece residual moisture is controlled within 0.3%, allowing direct follow-up processes such as electroplating, assembly and quality inspection
Product Images
Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying Heavy-Duty 45L Dual-Tank Ultrasonic Cleaning Equipment with 28KHZ/40KHZ Frequency and Constant Temperature Drying
