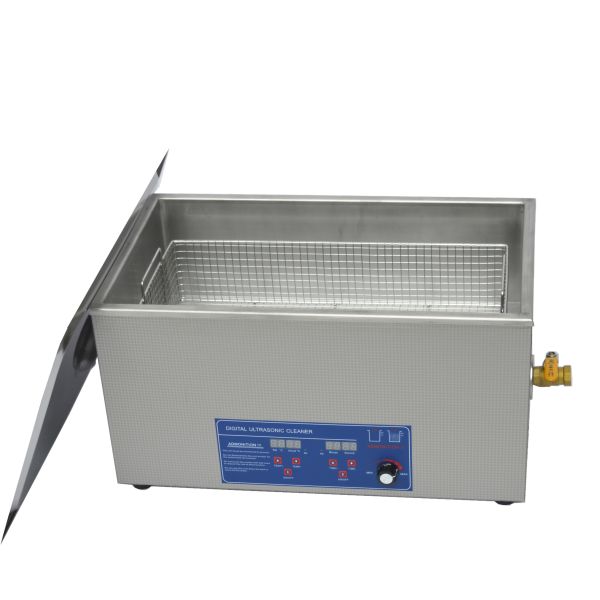

30L Large Capacity Digital Ultrasonic Cleaner 240-600W Stepless Power Adjustable Built-in Heating Timing Precision Degassing Equipment
30L Large Capacity Digital Ultrasonic Cleaner 240-600W Stepless Power Adjustable Built-in Heating Timing Precision Degassing Equipment
Specifications
Model Number :
JPS-100AL
Ultrasonic power :
240～600W
Brand Name :
JeiTai
Name :
Ultrasonic Cleaning Machine
MOQ :
1
Delivery Time :
About one week to one month
Capacity :
30L
Heating power :
601W
Payment Terms :
T/T
Large box size :
626×420×420(1Table)
Price :
￥2450
Overall dimensions of the machine :
550×330×321mm
Certification :
CE, FCC, ROHS, etc.
Model :
JPS-100AL
Place of Origin :
Dongguan, Guangdong
Cleaning tank size :
500×300×201mm
Packaging Details :
Packaging: Carton Machine dimensions: 550×330×320 mm
Supply Ability :
One unit, with a weight of 16 kilograms.
Gross Weight :
16.1KG
Description

30L direct from the manufacturer, power-adjustable cleaning machine with multiple frequency options. Supports the full range of specifications from 3L to



The 0.1%-level precise adjustment of power output and 200μs-level dynamic response of ultrasonic equipment redefine industry energy efficiency standards:

1. Dynamic Power Adjustment and Intelligent Matching

Multi-Dimensional Real-Time Monitoring

Equipped with 128 sets of high-precision sensors, the system continuously collects parameters such as transducer resonance frequency, load impedance, and temperature matrix. Combined with a reinforcement learning prediction model, it pre-dicts power demand fluctuations 500ms in advance. For example, in lithium battery tab welding, the system automatically matches the optimal power curve based on metal material (copper/aluminum) and thickness (0.1-0.8mm), improving welding strength consistency to 99.2% and reducing spatter rate to below 0.3%.

Wide-Range Power Coverage

Supports continuous adjustment from 10-2000W to adapt to different ultrasonic applications:


  • Precision Cleaning: 0-500W low-power mode (40-80kHz frequency), suitable for fragile workpieces like semiconductor wafers and optical lenses, preventing excessive surface damage from cavitation effects.
  • Industrial Welding: 500-2000W high-power mode (20-40kHz frequency). Through dynamic phase angle adjustment technology, it achieves seamless welding of 1.2mm aluminum-nickel composite strips in power battery pole piece welding, increasing welding efficiency by 30%.

2. Core Components and Reliability Design

High-Performance Transducer Technology

Adopts piezoelectric ceramic-metal composite vibrators (PZT-8 material) with energy conversion efficiency exceeding 92% and amplitude stability ≤±1.5%, capable of stable operation in a wide temperature range from -30°C to +85°C. For instance, in cold-chain logistics, the digital power adjustment technology maintains temperature control accuracy of ±0.5°C in -30°C environments for refrigerated vehicle cooling systems while reducing energy consumption by 25%.

Intelligent Thermal Management System

Integrates micro-channel liquid cooling modules and AI temperature control algorithms to real-time monitor the temperature rise rate of transducers (controlled within 0.8°C/min) and automatically adjust heat dissipation power, ensuring no performance degradation after continuous operation for over 10 hours.

3. Green Manufacturing and Carbon Footprint Management

Leading Energy Efficiency Standards

The product's coefficient of performance (COP) is 20%-30% higher than traditional equipment, with some models meeting China Energy Efficiency Label Grade 1 standards (e.g., an industrial cleaning equipment model has no-load standby power consumption <0.15W, complying with the new GB20943-2025 regulations).

Full Lifecycle Sustainability

The outer housing incorporates recycled ocean plastic, cutting virgin plastic consumption by 120 grams per unit. The circuit boards adopt lead-free soldering technology, with recycled glass fiber making up 35% of PCB substrate materials. Optional flexible solar back panels support photovoltaic auxiliary power supply, accumulating 5% charge within one hour under adequate sunlight. This multi-pronged design minimizes carbon emissions across the entire product lifecycle from manufacturing to daily operation.
Digital Power Adjustment Series






Model Capacity Ultrasonic power Heating power Cleaning tank size Overall dimensions of the machine Gross Weight Large box size
L W W (LⅹwⅹH)mm (LⅹwⅹH)mm KG (LⅹwⅹH)mm
JPS-20AL 3L 50～120 100 240x135x100 270x170x210 4.1 410×355×345(2Table)
JPS-30AL 6L 70～180 300 300x150x150 330x180x270 6.3 555×435×390(2Table)
JPS-40AL 10L 100～240 300 300x240x150 330x270x270 8.5 735×435×380(2Table)
JPS-50AL 14L 120～300 300 300×240×200 330×270×320 10.5 420×360×420(1Table)
JPS-60AL 15L 150～360 300 330×300×150 360×330×270 10.5 450×420×370(1Table)
JPS-70AL 19L 170～420 300 330×300×200 360×330×320 12.0 460×420×420(1Table)
JPS-80AL 22L 200～480 600 500×300×150 550×330×270 14.0 625×420×370(1Table)
JPS-100AL 30L 240～600 600 500×300×200 550×330×320 16.0 625×420×420(1Table)
