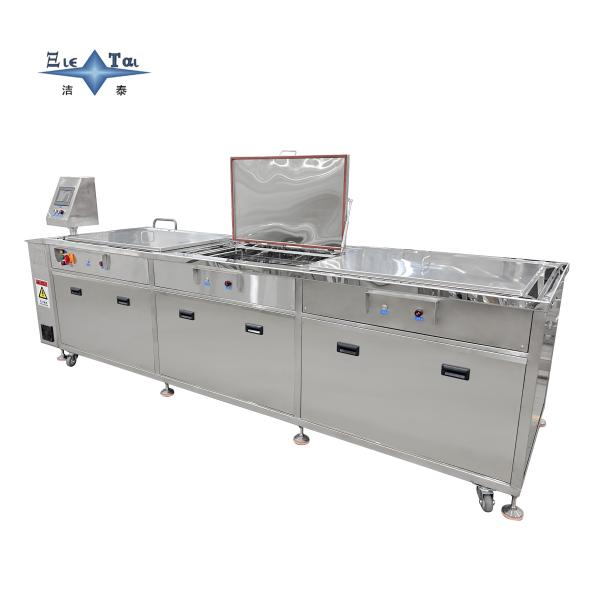

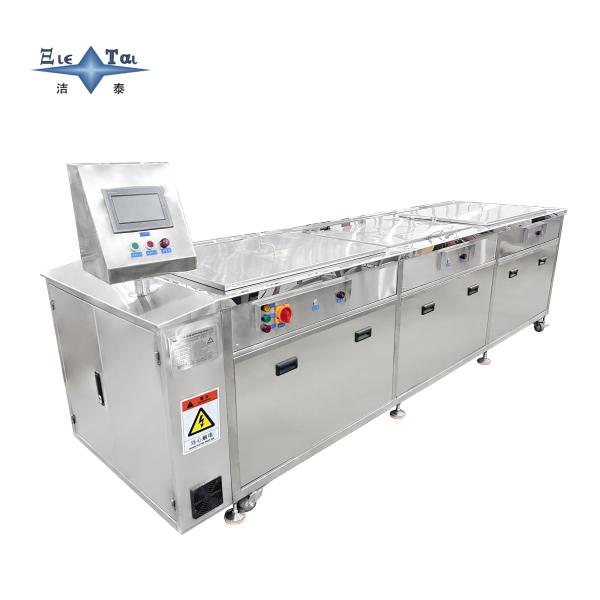

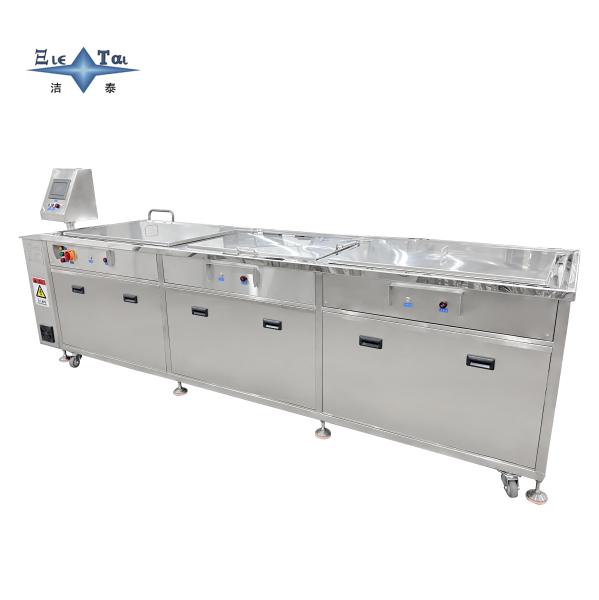

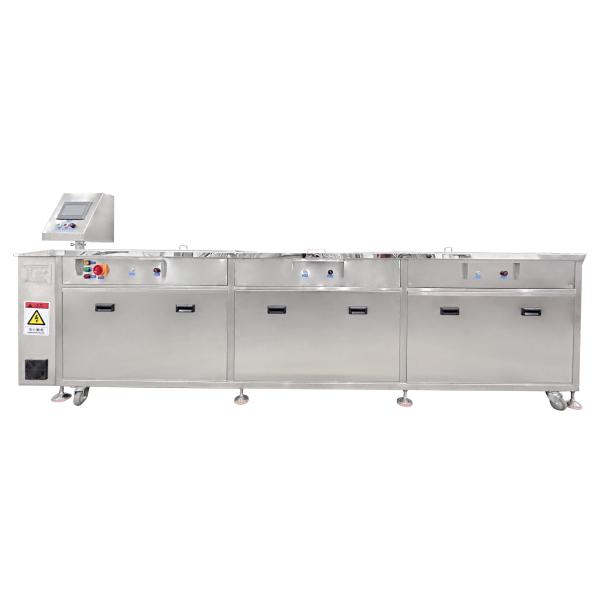

Used In The Hardware Industry, [Manual Ultrasonic Cleaning Machine] Ultrasonic Cleaning Hot Air Drying, Jietai Brand
—— Deep cleaning solutions for small and medium-sized batches of precision hardware
Product positioning
The cost-effective manual cleaning equipment specially designed for hardware processing parts (bearings/gears/fasteners/molds) integrates the two core functions of dual-frequency ultrasonic oil removal and hot air constant temperature drying, and achieves 99.6% oil removal rate and 0.1mm blind hole without residue for cutting fluid residues, abrasive paste, metal chips (≥5μm) and other pollutants. The equipment adopts manual controllable design (single tank independent operation), suitable for small and medium-sized batch production (5-50kg/batch) and maintenance scenarios, to meet the clean needs of metal electroplating, spraying, and assembly, and the surface tension of the workpiece after drying is ≥ 72mN/m, which effectively improves the yield rate of subsequent processes (such as the electroplating leakage rate is reduced by 60%).

Manual controllable operation design
1. Flexible process adjustment
Dual-knob control panel:
▶ Left knob: Adjust ultrasonic frequency (28kHz/40kHz), power (10%-100%), time (0-60 minutes)
▶ Right knob: set drying temperature (50-80°C), fan speed (low/medium/high 3 gears), drying time (0-90 minutes)
Visualization:
✔ The 4-inch LED screen displays the tank temperature, ultrasonic power, and drying time in real time
✔ Transparent acrylic protective cover: Observe the washing and drying process, IP54 protection against splashing water
2. Safety redundancy design
Leakage protection: Ground resistance ≤4Ω, 30mA leakage circuit breaker, manual reset button on the side of the device (anti-mistouch)
Anti-scald design: the temperature of the outer surface of the drying chamber ≤ 50°C, and the handle is made of heat-insulating silicone material to avoid scalding during operation

Top 3 reasons to choose us:
(1) Cost-effective preferred: manual controllable design reduces equipment costs, adapts to small and medium-sized batch production, and the payback period is ≤ 6 months
(2) Flexible operation: The double knob is intuitive to adjust the parameters, without complex programming, and is suitable for rapid switching of hardware processing sites
(3) Durable and reliable: stainless steel PP composite tank, 5000 hours of continuous operation without failure, suitable for 24-hour shift operation
Contact us now to get the "Hardware Manual Cleaning Operation Guide" and exclusive equipment quotation plan!
