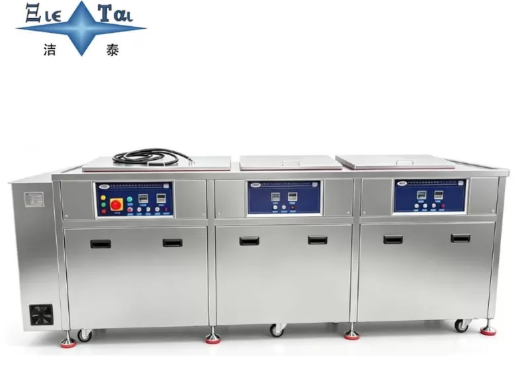

Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying
Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying
Specifications
Supply Ability :
One unit. It will take 30 to 60 days.
Time Control :
1-99MIN
Cleaning frequency :
28KHZ/40KHZ
Model Number :
JTM-3024FRD
Power :
0-600W*2
Payment Terms :
T/T
Filter Accuracy :
10um
Overall Dimensions :
500*300*300mm
Price :
￥27000
tank capacity :
45L
Model :
JTM-3024FRD
MOQ :
1
Delivery Time :
30-60work days
Cleaning Temperature Control :
Normal - 95℃
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
Heating Power :
1.5KW
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm
Brand Name :
Jietai
Drying Temperature (℃) :
Normal - 150℃
Description
Triple Tank Ultrasonic Cleaning Machine for Metal Parts Degreasing, Built with Circulating Filtration, Spray Rinsing & Hot Air Drying

All-in-One Industrial-Grade Cleaning System
Designed for high-yield industrial batch cleaning, this complete three-tank cleaning workstation combines four core processes including ultrasonic degreasing, circulating filtration, overflow rinsing and constant-temperature hot air drying into one integrated automatic working flow.
It removes the trouble of matching multiple separate machines and manual workpiece transfer. A complete full-cycle workflow including cleaning, impurity filtration, residual rinsing and moisture drying can be finished on one single machine. It is perfect for precision workpieces that demand ultra-high cleanliness and no residual moisture, improving production efficiency and finished product quality while lowering operation costs.
Core Advantages

4-in-1 Integrated Structure, Optimized Workshop Layout
Three independent tanks accommodate four functional processes, removing the demand for extra separate rinsing or drying equipment.
It saves 40% workshop space and cuts manual transfer steps by 60%, greatly shortening the processing cycle for mass cleaning tasks. Its compact structure can be perfectly connected to automatic production lines to satisfy high-volume manufacturing requirements.
Separated Triple-Tank Working Zones for Superior Cleaning Results

Ultrasonic Cleaning Tank: Supports adjustable multi-frequency ultrasonic operation ranging from 28kHz to 130kHz with 0-100% stepless power adjustment. Strong cavitation thoroughly removes grease, metal scraps, soldering flux and rust, penetrating deep into blind holes, narrow slits and tiny grooves to eliminate all pollutants.

Circulation Filtration & Overflow Rinsing Tank: Standard fitted with 5μm precision circulating filter (1μm filter for optional upgrade) to trap suspended pollutants continuously and avoid secondary contamination. Multi-level overflow rinsing fully washes residual cleaning agent and micro particles off workpiece surfaces for residue-free effect.

Constant Temperature Hot Air Drying Tank: Adjustable drying temperature ranges from 40℃ to 95℃, matched with Class 100 purified circulating air. Air knife fast drying removes all surface moisture within only 3-8 minutes without water stains, avoiding metal oxidation and rust so workpieces can directly enter subsequent assembly, electroplating and quality inspection procedures.

Energy & Consumable Saving, Long Service Life
The internal liquid circulation system raises the reuse rate of cleaning liquid by over 65%, extending the cycle of detergent replacement and cutting annual consumable expenses by over 40%.
All tanks are made of 2mm thick 304 stainless steel (316L stainless steel optional for stronger anti-corrosion performance) with precise TIG welding. Wear-resistant and anti-corrosion construction supports 24-hour non-stop operation, with a service life 30% longer than ordinary cleaning machines.
Gentle Non-Destructive Cleaning, Broad Material Compatibility
Adjustable multi-frequency and power parameters fit a wide range of workpiece materials without causing surface damage:

Soft metal materials (aluminum, copper, brass): Low-power high-frequency mode avoids surface scratch marks

Precision electronic components (PCB boards, connectors): Mild cleaning protects fragile electronic parts

Medical and optical parts: Ultra-clean residue-free treatment that meets professional industry cleanliness standards
The surface roughness of workpieces after cleaning reaches Ra ≤ 0.5nm, completely retaining the dimensional precision and surface texture of workpieces.
Intelligent Touch Control with Full Safety Protection
Easy-to-operate touch screen panel can store up to 10 sets of custom cleaning programs for one-click automatic running.
Complete safety protection configurations include over-temperature alarm, low liquid level interlock, overload protection and leak-proof structure, guaranteeing stable and safe running under harsh industrial working environments.
Product Images
Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying Triple Tank Industrial Metal Parts Ultrasonic Cleaning Machine with Filtration, Spray Rinse & Hot Air Drying
