30khz precise accurate power generator For Ultrasonic spray nozzles

The Generator is the next generation of our ultrasonic generator used to deliver high frequency electrical energy required to operate all of our ultrasonic nozzle systems.
The digital ultrasonic generator for atomizers with five icon front panel. Programable with LCD display, variable power control, probe selection, run time, contrast adjustment, external enable/disable. Menu driven software for selecting operating frequency with 15Khz,20Khz,28Khz,30Khz,35Khz, 40Khz and 50Khz. Operates from 110/220VAC, 50/60Hz. Fifty Watts maximum output, can operate any ultrasonic transducer. Windows PC Controler externally operates all functions of the generator, purchased separately.

This precise, accurate power generator, designed and manufactured by RPS-SONIC, incorporates modern controls in a user-friendly, intuitive interface that allows fine tuning of atomization and enhances the performance of ultrasonic nozzle systems for the most repeatable, accurate spray processes.

For applications requiring pinpoint accuracy, it is the best solution for spray processes that need ultra precise process monitoring and calibration, such as medical device manufacturers spraying materials at very low flow rates.

The Ultrasonic Generator Features:

• Operates over a frequency range of 15 – 60 kHz (frequency is user selectable through the display for any ultrasonic nozzle).
• Choice of load leveling or power leveling mode for increased precision and the greatest repeatability of atomization
• Display resolution of .01 Watts
• Graphic user interface with intuitive wheel encoder enables full on-screen control of all functions.
• Uses advanced phase-locked-loop control technology to automatically lock onto a nozzle’s optimal operating frequency.
• Contains inputs and outputs for remote alarm monitoring, external trigger signal, and remote power/load leveling control.
• ±4% accuracy allows for increased repeatability.

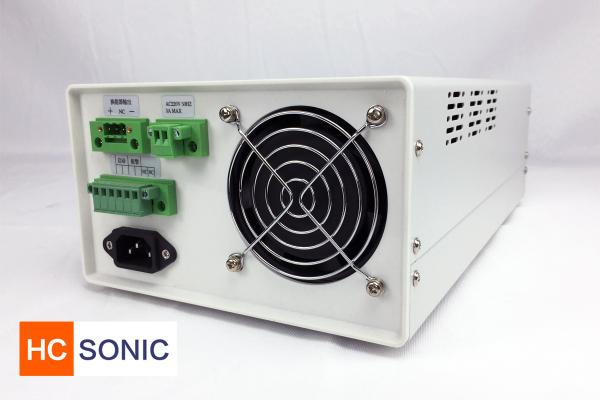

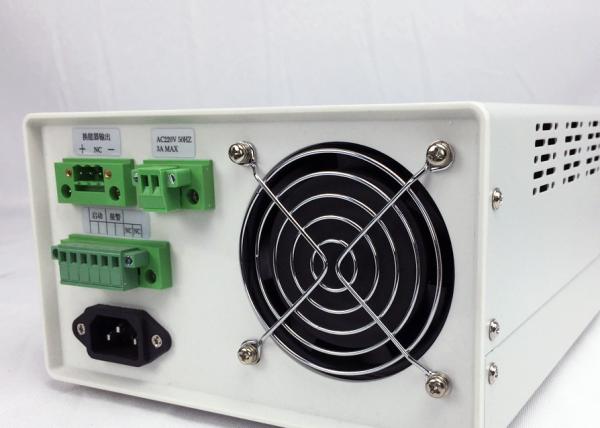

Generator is stat-of-the-art able operate any ultrasonic atomizer nozzle or probe including competitors from 20kHz to 600kHz and has virtually unlimited bandwidth under increased loads and frequency changes due to elevated temperatures. Power to the nozzle can be set in 1% increments or select our fine adjustment in 0.3% increments. Built inside the generator is a microprocessor and communication port with advanced electronics and unique software algorithms for effeciently driving the nozzle correctly under virtually all operating conditions. One feature is "Auto Atomization Power Adjustment" (AAPA) which can be turned on or off and is used to automatically adjust the power to the nozzle with changes in liquid flows without stalling. AAPA can be used with micro feed tubes or low flows with a high degree of control. Constant Power function freezes the power selected for the process and serves to help with coating processes increasing repeatability. All of the mentioned features are selectable from the menu and is displayed on the front panel screen. Several other functions are also available with our generator including power to the probe and bar graph. At the rear of the generator is a communication port, configurable enable/disable triggering, external power control, PLC interface and capabilities for customers who simply want to turn on/off the generator remotely with feedback or need to control all functions of the atomizer nozzle with a computer. One feature of our software tells the user if the power is too low for the liquid flow, disables power for any fault and provides this information to the user on the generator LCD display or GUI interface.
