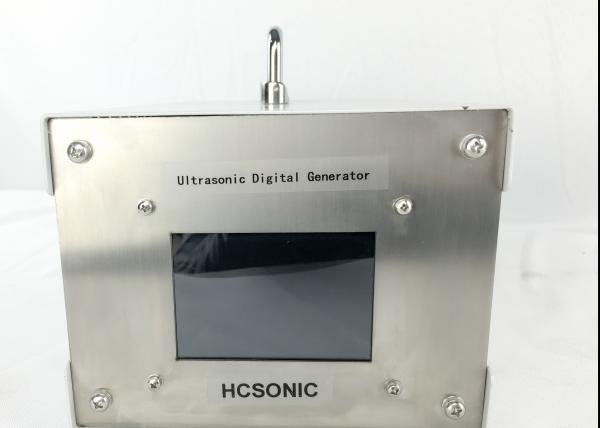

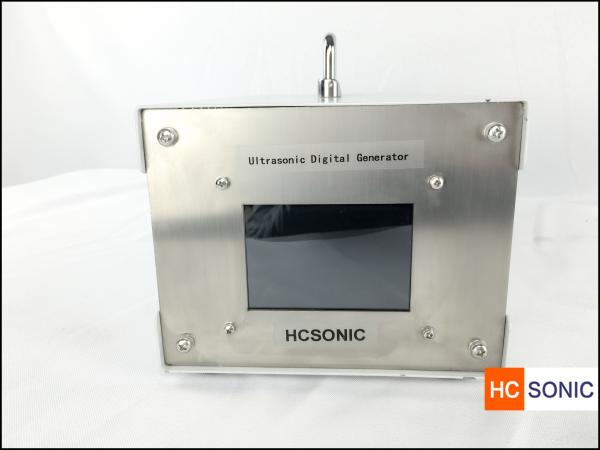

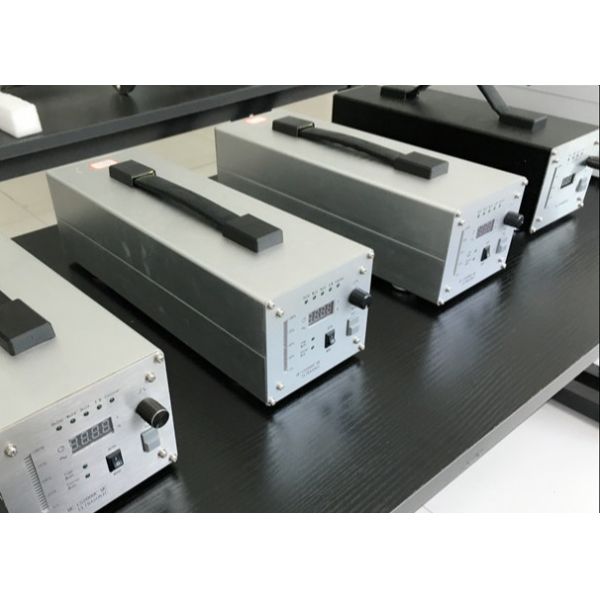

Ultrasonic Generator For Ultrasonic Welding, Cutting, And Sealing

Min size:130*130*380

Descriperson

This digital generator is available in frequencies of 15kHz, 20Khz, 28Khz,30 kHz, 35 kHz and 40Khz at a power range between 300 W and 3000 W. Programmable ramp up and ramp down times and infinitely variable adjustment of weld amplitudes are only some of the features of this product line. The biggest advantage of this generator is the wide frenquncy range, for example: the 20Khz generator, it can catch the frequency from 18~21khz, so it is easy to tuning. Also it is easy for some ultrasonic new user.

This kind of generator is capable of welding products by own or equiped with ultrasonic welding machine.

The generator converts electrical power from the single-phase mains to the correct frequency and voltage for the transducer to convert into mechanical vibrations. The microprocessor unit controls the welding cycle and feeds back key welding information to the user, via the user interface. The user interface also allows the operator to enter the required welding parameters.

Characteristic:

• Less space
• Perfect performance, quick welding.
• Reliable and stable welding.
• Less thermal diffusivity, easy wiring.
• Simple and semi-automated in adjustment.

Application:

Welding, insertion, bend, spot welding, cutting.

Product material: ABS,PP,PS,SNA,PC,PA,PET, non-woven, nylon, etc.

Application

The maximum allowable equipment environment

Available environment temperature: -20C° to 40°C, work over temperature may cause in abnormal operation of the equipment and safety accidents.

Available air humidity: less than 70%. Excessive air humidity may cause Short circuit of the internal electronic components.

Maximum electromagnetic interference intensity: less than 120E. Larger than 120E will cause seriously interfere and damage the equipment.

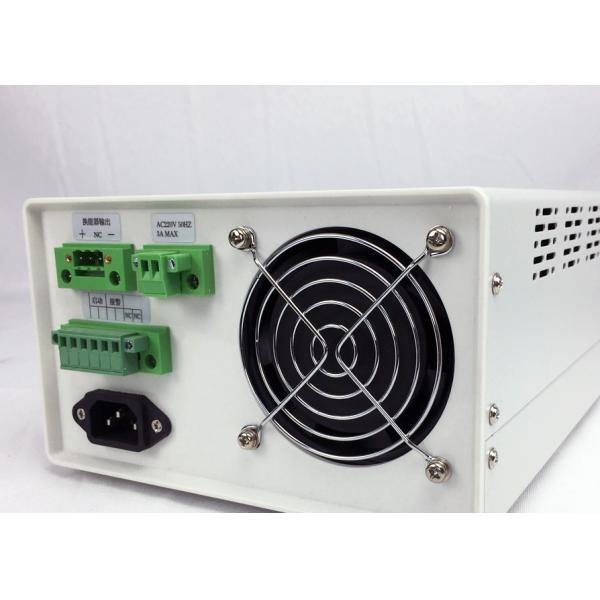

Power requirements

The power input standard is: single-phase AC220V 50HZ/60HZ.

Input power supply voltage fluctuation range: <10%.

Input power supply harmonic content: <20%.

Input power supply current: 10A.

Input power cord diameter: >1.5MM2.

Buyer notice

Before making the welder you require, please kindly send it with the below information:

The welding dimensions and Max.thickness

The material of Workpieces

Welding requirements

3D drawing or real picture

It’s better if you can send us the picture of workpieces or sample. We can provide your welding solution to your ref.
