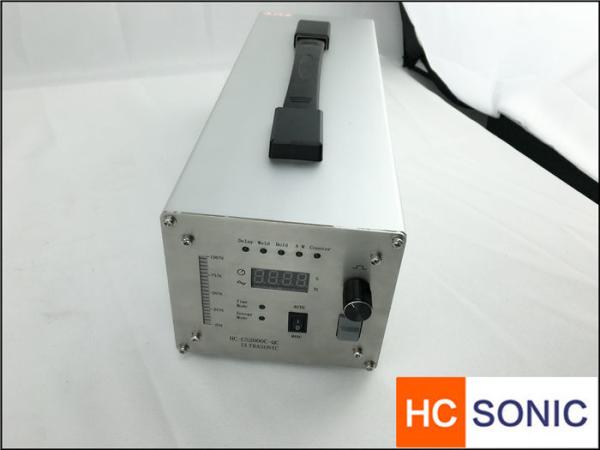

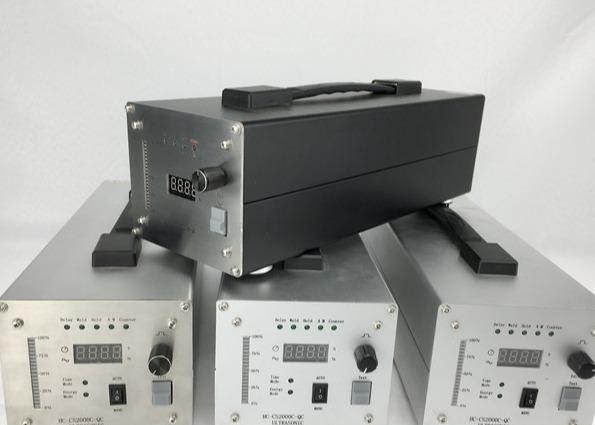

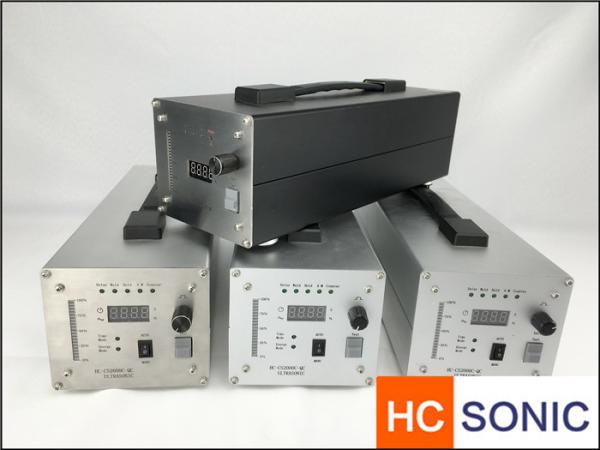

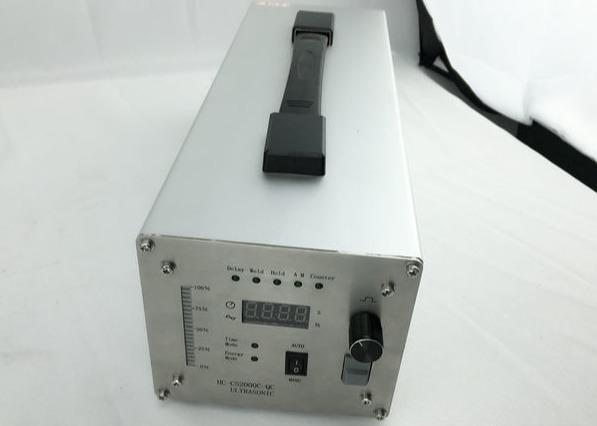

20KHz 1200W Ultrasonic power supply for Nonwovne face mask

Descriperson

This generator is design and producing by RPS-SONIC, we have applied patent in china.Also we have registered trademark with RPS-SONIC, so I think you will feel happy to cooperate with such a professional company.

The biggest advantage of this generator is the wide frenquncy range, for example: the 20Khz generator, it can catch the frequency from 18~21khz, so it is easy to tuning. Also it is easy for some ultrasonic new user.

This digital generator is available in frequencies of 15kHz, 20Khz, 28Khz,30 kHz, 35 kHz and 40Khz at a power range between 300 W and 3000 W. Programmable ramp up and ramp down times and infinitely variable adjustment of weld amplitudes are only some of the features of this product line.

Advantage:

Min out size, easy take(120*120*380,2.5KG)

Digital generator, can tracking the frequency itself.

Work stable, high power output.

Touch screen Optional,easy operate.

Applied widely in welding, cutting,& sonochemistry.

Wide frequency range(+_1KHZ)

Parameter:

Application

The maximum allowable equipment environment

Available environment temperature: -20C° to 40°C, work over temperature may cause in abnormal operation of the equipment and safety accidents.

Available air humidity: less than 70%. Excessive air humidity may cause Short circuit of the internal electronic components.

Maximum electromagnetic interference intensity: less than 120E. Larger than 120E will cause seriously interfere and damage the equipment.

Power requirements

The power input standard is: single-phase AC220V 50HZ/60HZ.

Input power supply voltage fluctuation range: <10%.

Input power supply harmonic content: <20%.

Input power supply current: 10A.

Input power cord diameter: >1.5MM2.
