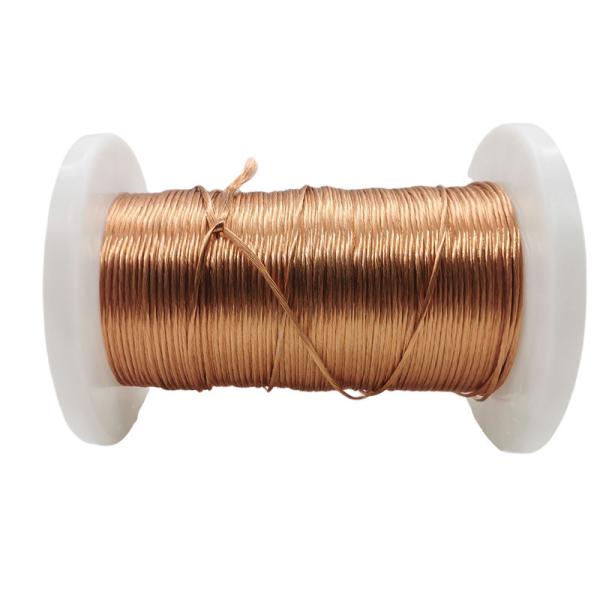

0.08mm X 350 Stranded Enameled Copper Litz Wire
0.08mm X 350 Stranded Enameled Copper Litz Wire
0.08mm X 350 Stranded Enameled Copper Litz Wire
0.08mm X 350 Stranded Enameled Copper Litz Wire
Specifications
Brand Name :
Ruiyuan
Model Number :
0.08*300
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
50kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
2-15 days
Packaging Details :
Carton
Product name :
Copper litz wire
No. of strands :
350
Single wire diameter :
0.08mm
Port :
Tianjin, China
Description

0.08mm x 350 Stranded Enameled Wire Copper Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.

0.08mm X 350 Stranded Enameled Copper Litz Wire0.08mm X 350 Stranded Enameled Copper Litz Wire0.08mm X 350 Stranded Enameled Copper Litz Wire

FEATURES

  • Outer insulation material: Dacron fiber, Nylon fiber.

  • Diameter of strands: 0,020 - 0,500 mm

  • Overall diameter: 0.1-8mm

  • Max cross section area: 38mm2

APPLICATION

Peaking coil, Antenna coil, Channel coil, IF coil

Ignition coil; High frequency coil
