0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
0.1*60 Class 180 Taped Polyimide Film Covered Copper High Frequency Litz Wire
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Product Name :
taped high frequency litz wire
Breakdown voltage :
5KV
Size :
0.1*60
strands :
10-3000
Certificate :
UL/SGS
conductor :
Copper
Description

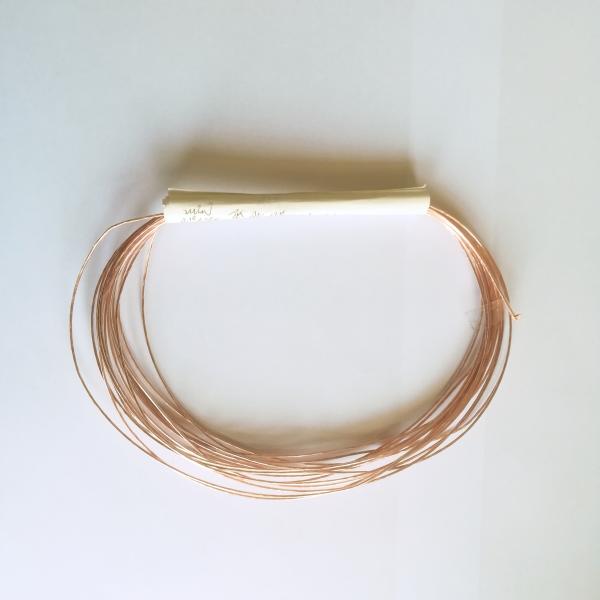

0.1*60 class 180 taped Polyimide film covered high frequency litz copper wire

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.

Features and benefits

Variants Dielectric strength Flexibility Splicing Contacting
Standard high very good good very good
Thermally Sealed elevated medium very good very good
Self-Adhesive very high good very good good

Specification:

　 Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
1 Surface Good OK OK OK OK
2 Breakdown Voltage ≥ 3.0 KV 5 5.3 6.2 OK
3 Pinhole Test ≤ 20 hole/6m 3 2 2 OK
4 Outer diameter ≤ 0.116 mm 0.111 0.112 0.113 OK
5 Inner diameter 0.10±0.003 mm 0.097 0.098 0.098 OK
6 Thickness of film(+0.002mm) 0.025 mm 0.025 0.025 0.025 OK
7 Width of film(,,) 8-15 mm 10 10 10 OK
8 Direction Bunch Left OK OK OK OK
Film cover Left OK OK OK OK
9 Conductor Resistance ≤ 40.87 Ω/km 31.69 32.01 32.08 OK
10 Overall Diameter ≤ 1.25 mm 0.874 0.896 0.902 OK
Remark: Conclusion:
Approved
Audit by Tested by
　 Pan Lihong

Certificates:


ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

Application:

1. Transformer Insulation Wire of Power Supplier & AC/DC Adapters,

2. Mobile Phone Battery Chargers and Ring Coil & Choke & PC Computer,

3. Netebook Computer,

4. Digital Camera Insulation wire.
