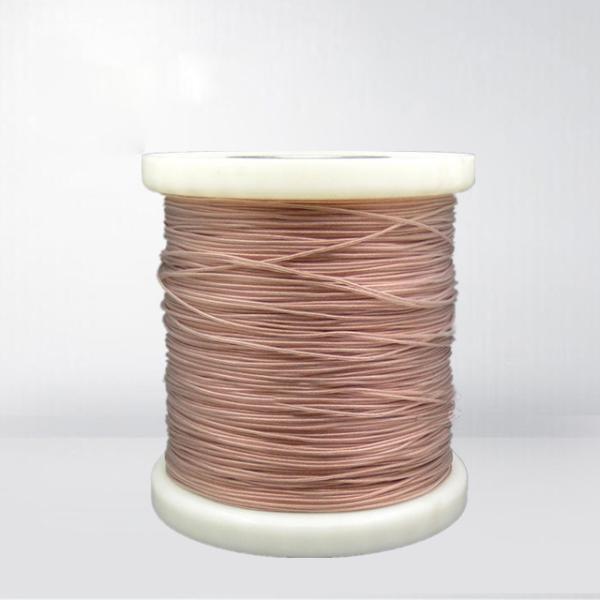

0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
Price :
Negotiation
Payment Terms :
Negotiation
MOQ :
20kg
Packaging Details :
Spool with carton
Delivery Time :
2-15 workding days
Supply Ability :
Satisfy your demand
Model Number :
0.1 - 0.2mm
Numberof strands :
1-36,000
Single wire diameter :
0.1-0.2mm
Temperature :
130/150℃
Conductor :
Round copper
Cover :
Nylon
Description

0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils

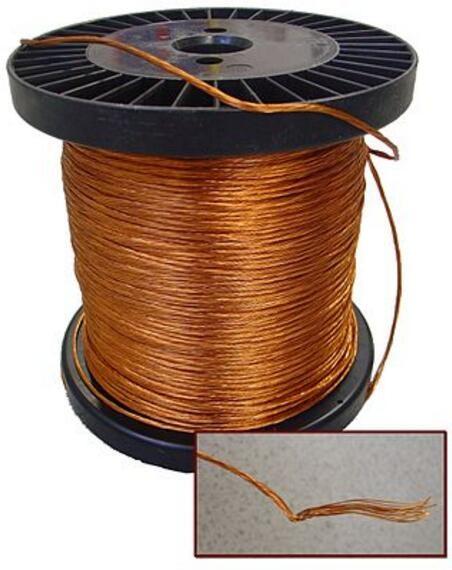

Litz Wire is a special type of enamelled wire widely used for high frequency coils. It consists of a many thin individual wires, coated with an insulating film and braided, thus increasing the surface area of the conductor and thereby reducing the skin effect and associated power losses when used with high frequency applications.When the number of wires is high, the construction of litz wires can also consist of multi-litz wires, where a number of Litz wires are stranded again. In this way, it is possible to have a Litz wire of more than 1,000 individual wires.

FEATRES

  • Increase Copper Density and Efficiencies

  • Mitigation of Skin and Proximity Effect

  • Reduce A.C. Losses

  • Reduction of Footprint and Weight

  • Minimum Eddy Current Losses

  • Lowered Operating Temperatures

  • Avoidance of "Hot Spots"

0.1 - 0.2mm USTC Litz Wire High Temperature Enameled Copper Wire For High Frequency Coils

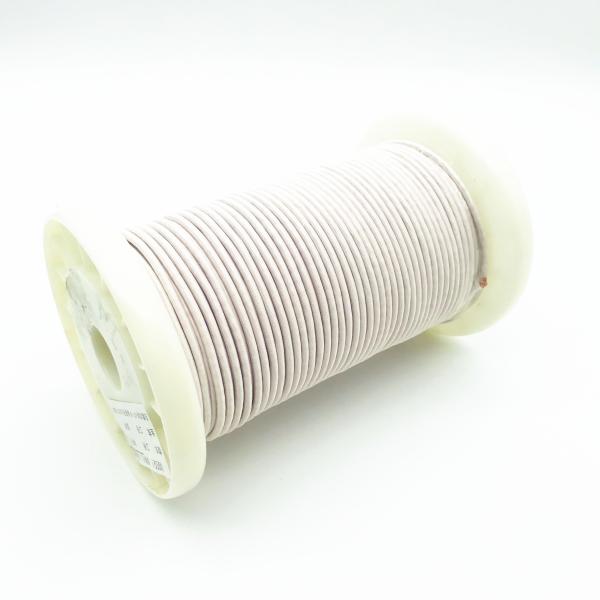

Silk covered litz wire 0.08mm x 112

Characteristics

Technical requests

Test Results
Inner diameter
0.080±0.003 mm
0.080mm
Thickness of coating
≥ 0.007mm
0.011
Outer diameter
≤ 0.094mm
0.091
Twist direction
S/Z
Z
Strands
112
112
Twist Pitch
20.5±3 mm
20.6
Breakdown Voltage
850V
1860V
Conductor Resistance
≤ 34.05Ω/km
31.29
Solder ability
YES
YES
Pinhole
≤224PCS/5m
9pcs
Overlapping Rate
33%/50%/60%
50%
