2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC
2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC
2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC
2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC
Specifications
Brand Name :
UCHI
Model Number :
SGM466
Certification :
Completed
Place of Origin :
Dongguan China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs
Delivery Time :
3weeks
Packaging Details :
Standard
Forward Voltage (E+ or E-) :
44V
Reverse Voltage (E+ to E-) :
-20V
UTDFN-2×2-2L, θJA :
206℃/W
UTDFN-2×2-4L, θJA :
90℃/W
Junction Temperature :
+150℃
Storage Temperature Range :
-65℃ to +150℃
Lead Temperature (Soldering, 10s) :
+260℃
HBM :
4000V
CDM :
1000V
Description
2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC
The SGM446 is a 2-terminal temperature sensor withan output current proportional to absolute temperature.It can be considered as a constant-current andhigh-impedance regulator passing 1μA/K in the supplyvoltage range from 4V to 35V. The SGM446 iscalibrated to 298.2μA output current at 298.2K (+25℃).Compared with the traditional electrical temperaturesensor, the SGM446 does not need resistancemeasurement circuit, linearization circuit, precisionvoltage amplifier and cold junction compensation. Italso integrates the compensation of temperature, flowrate measurement, discrete-component correlation,biasing proportional to absolute temperature, leveldetection of fluids and anemometry.The high-impedance current output of the SGM446makes the device insensitive to voltage dropsespecially on long lines. Therefore, it is particularlysuitable for remote sensing applications. The multiplexof the SGM446 is achieved by switching the currentthrough a CMOS multiplexer or switching the supplyvoltage through the logic gate.The SGM446 is available in Green UTDFN-2×2-2L andUTDFN-2×2-4L packages. It is specified over a widetemperature range of -55℃ to +150℃.
Key Features

● 2-Terminal Device: Voltage to Current
● Linear Current Output: 1µA/K
● Calibration Error: ±2℃
● Excellent Linearity: ±0.6℃ over Full TemperatureRange
● Wide Supply Voltage Range: 4V to 35V
● Operating Temperature Range: -55℃ to +150℃
● Available in Green UTDFN-2×2-2L andUTDFN-2×2-4L Packages

Applications
Temperature Sensing and Compensation
Industrial Temperature Measurement
Thermocouple Cold Junction Compensation
Remote Temperature Sensing

Pin Configurations
2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC

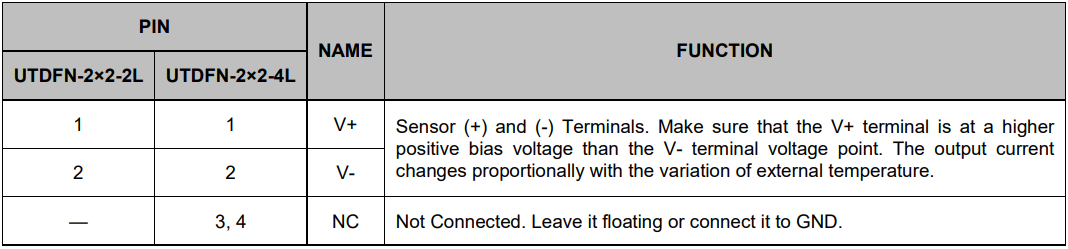

Pin Description

2-Terminal, High-Precision,Current Output Temperature Sensor Integrated Circuit IC
Product Selection Guid
Device Type
 Part Number
Interface
Vcc
(V)
Temp Resolution
Max (Bits)
Local Sensor Accuracy
Max (±℃)
Shutdown
Current
(μA)
Addresses
Quiescent
Current
(μA)
Operating
Temperature
Range (℃)
Remote Channels
(#)
Packag
 Features
Local and Remote
 SGM446
Analog Output
 4~35
-55℃ to +150℃: -5~2

298.2 -55℃ to +150 0
UTDFN-2×2-2L,UTDFN-2×2-4L
2-Terminal, High-Precision, Current Output Temperature Sensor
Loca
 SGM447
Analog Output
 1.5~5.5
-20℃ to +85℃: 2.5
-55℃ to +150℃: 3.5

3 -55℃ to +150 0
WLCSP-0.8×0.8-4B-A
Dual-Gain Analog Temperature Sensor with Class-AB Output
Local and Remote SGM448
Analog Output
 2.7~10
+25℃: 1
-55℃ to +125℃: 2

26 -55℃ to +150 0
SOT-23
Low Power, High Accuracy Analog Output Temperature Sensor
Local and Remote SGM449
Analog Output
 2.7~10
+25℃: 1
-55℃ to +125℃: 2

26 -55℃ to +150 0
SOT-23
Low Power, High Accuracy Analog Output Temperature Sensor
Loca SGM450
Analog Output
 2.3~5.5
-40℃ to +150℃: 2

7.5 -40℃ to +150 0
SC70-5,SOT-23
 Low Power, High Accuracy Analog Output Temperature Sensor
Local and Remote SGM451

I2C and SMBus

 3.0~5.5 12
-40℃ to +85℃: 0.8
-40℃ to +125℃: 1.2
 <10 8 122 -40℃ to +125 1
TDFN-2×2-8BL
±1℃ Local and Remote Temperature Sensor with η-Factor and Offset Correction,
Series-Resistance Cancellation, and Programmable Digital Filter
Loca SGM452

I2C

 2.7~5.5 12
-40℃ to +85℃: 1
-55℃ to +125℃: 1.2
 <3 8 49 -55℃ to +125 0
SOIC-8,MSOP-8
Digital Temperature Sensor and Thermal Watchdog with I 2C Interface
Loca SGM457

I2C

 1.6~5.5 12
-40℃ to +125℃: 2
 <2.5 8 14 -40℃ to +150 0
SOT-563-6
Low Power, Low Supply Voltage Digital Temperature Sensor
Loca SGM458 I2C and SMBus 1.6~5.5 12 -55℃ to +125℃: 1 <2.5 8 2.9 -55℃ to +125 0
WLCSP-0.85×0.85-4B
Low Power, Low Supply Voltage Digital Temperature Sensor
Loca SGM459 I2C 2.7~5.5 12 -55℃ to +125℃: 1.2 <3 8 49 -55℃ to +125 0
TDFN-2×2-8AL
Digital Temperature Sensor and Thermal Watchdog with I 2C Interface
Loca SGM460 I2C and SMBus 1.6~5.5 12 -40℃ to +125℃: 0.75 <1 8 3.2 -40℃ to +125 0
WLCSP-0.77×1.17-6B
Low Power, Digital Temperature Sensor with Two-Wire Serial Interface
