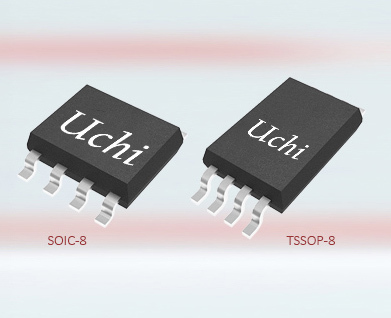

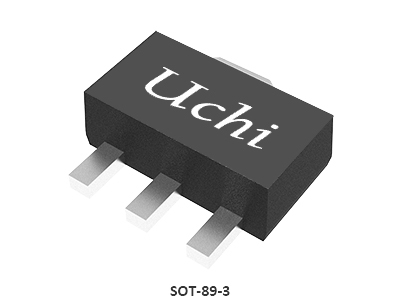

Precision Programmable Reference Integrated Circuit IC
Precision Programmable Reference Integrated Circuit IC
Precision Programmable Reference Integrated Circuit IC
Precision Programmable Reference Integrated Circuit IC
Specifications
Brand Name :
UCHI
Model Number :
SGM431
Certification :
Completed
Place of Origin :
Dongguan China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs
Delivery Time :
3weeks
Packaging Details :
Standard
Cathode Voltage (1), VKA :
40V
SOIC-8, θJA :
126℃/W
SOT-23, θJA :
245℃/W
SOT-23-5, θJA :
210℃/W
SOT-89-3, θJA :
71℃/W
SC70-6, θJA :
210℃/W
Junction Temperature :
+150℃
Storage Temperature Range :
-65℃ to +150℃
Lead Temperature (Soldering, 10s) :
+260℃
HBM :
4000V
CDM :
1000V
Description
Precision Programmable Reference Integrated Circuit IC
The SGM431x is a precision programmable shuntvoltage reference that can be used in manyapplications. It is a three-terminal adjustable-outputdevice that can keep stable under all capacitive loads.It requires two external resistors in application to set theoutput voltage is to any value between VREF and 36V.All versions have a maximum operating current of100mA.The SGM431x features low dynamic impedance, lownoise, and low temperature coefficient to ensure astable output voltage over a wide range of operatingtemperatures and currents. These high performancesmake it very suitable for multiple applications, such asprecision audio components and flyback switchingpower supplies.The SGM431 is available in Green SOIC-8, SOT-23,SOT-89-3, SOT-23-5 and SC70-6 packages. TheSGM431B is available in Green SOIC-8, SOT-23,SOT-89-3 and SOT-23-5 packages
Key Features

● Adjustable Output Voltage: VREF to 36V
● Sink-Current Capability: 1mA to 100mA
● Reference Voltage Tolerance at +25℃:
 SGM431: 1% (Standard Grade)
 SGM431B: 0.5% (B Grade)
● Output Impedance: 0.1Ω (TYP)
● Temperature Drift: 5mV (TYP)
● High Stability under Capacitive Load
● Low Output Noise
● -40℃ to +125℃ Operating Temperature Range
● SGM431 is available in Green SOIC-8, SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
● SGM431B is available in Green SOIC-8, SOT-23,SOT-89-3 and SOT-23-5 Packages

Applications
Portable, Battery-Powered Equipment
Voltage Monitoring
Flyback Switching Power Supplies
Instrumentation
Product Testing
Precision Audio Components

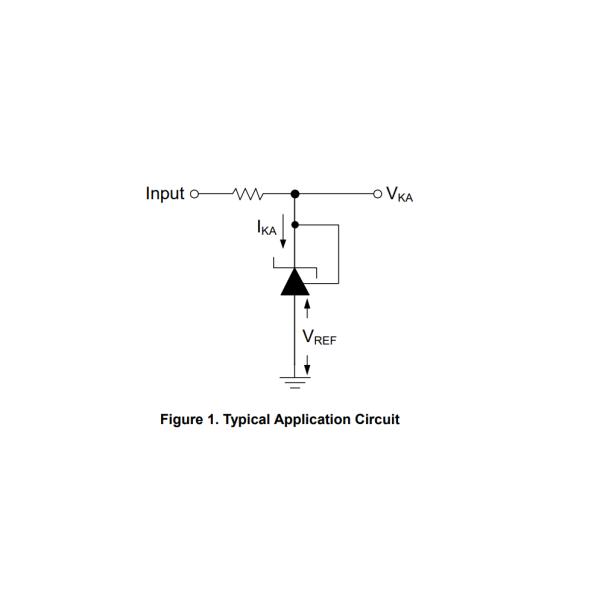

Typical Application

Precision Programmable Reference Integrated Circuit IC

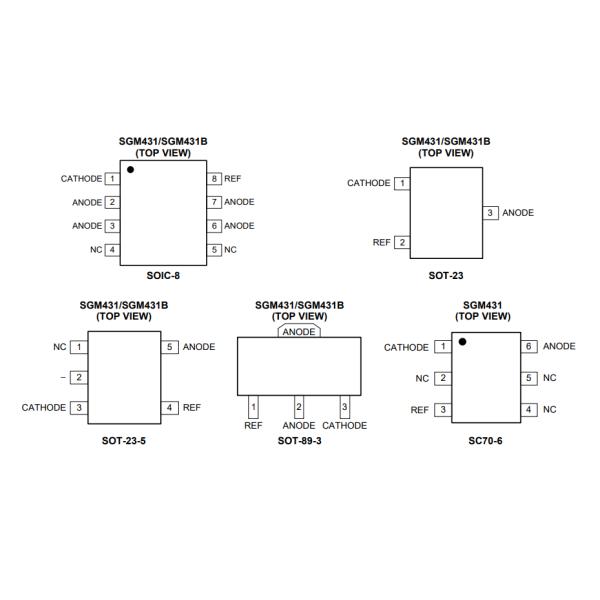

Pin Configurations

Precision Programmable Reference Integrated Circuit IC
Product Selection Guide
Part Number
Vo
(V)
 Reference
Voltage
Initial Accuracy
Max (%)
VO Ad
Min (V)
VO Adj
Max (V)
IZ for Regulation
Min (μA)
Temperature
Coefficient
Max (ppm/℃)
Operating
Temperature
Range (℃)
IOUT/IKA
Max (mA)
Package
 Features
SGM431 2.5 Adj 0.5,1 2.5 36 400 60
-40 to +125
 100
SOIC-8,SOT-23,SOT-89-3,SOT-23-5,SC70-6
Adjustable Precision Shunt Regulator
SGM431VB 1.24 Adj 0.5 1.24 18 65
-40 to +125
 70
SOT-23
Adjustable Precision Shunt Regulator
SGM432 2.5 Adj 0.5,1 2.5 36 400 60
-40 to +125
 100
SOT-89-3,SOT-23,SOT-23-5
Adjustable Precision Shunt Regulator
SGM4025 1.25,2.048
Fixed
 0.1

230† 30
-40 to +125
 10
UTQFN-1.5×1.5-8L
30ppm/℃, 230μA, CMOS Voltage Reference
SGM4027 2.048,2.5
Fixed
 0.1

245† 35
-40 to +125
 10
SOT-23
35ppm/℃, 245μA, CMOS Voltage Reference
SGM4029 2.5,3.0,4.096
Fixed
 0.1

1450† 10
-40 to +125
 10
SOIC-8
Low Noise, Low Drift, Precision Voltage Reference
SGM4040B

2.5
Fixed
 0.2

48
20†
-40 to +125
 15†
SOT-23
Micro-Power, Precision Shunt Voltage Reference
SGM4051C 1.2,Adj
Fixed,Adj
 0.5 1.206 10 45 20†
-40 to +125
 12†
SC70-5,SOT-23
Micro-Power, Precision Shunt Voltage Reference
Note: † Typical Values @ 25℃

Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aerospace/defense systems.
Precision Programmable Reference Integrated Circuit IC
Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.
Precision Programmable Reference Integrated Circuit IC

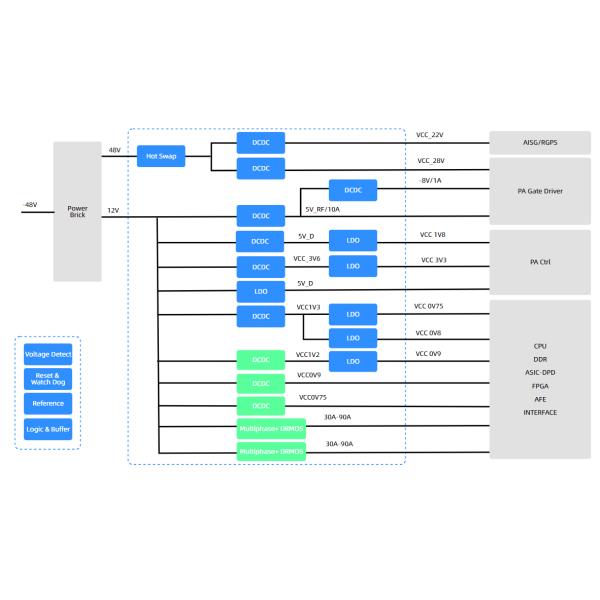

This solution demonstrates the application of integrated circuits in the base station RF power supply board. For assistance selecting the right product, please contact our technical support team.
