ESD Protection ICs 5V Bidirectional ESDand Surge Protection Device
ESD Protection ICs 5V Bidirectional ESDand Surge Protection Device
Specifications
Brand Name :
UCHI
Model Number :
SGM05HB1AM
Certification :
Completed
Place of Origin :
Dongguan China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs
Delivery Time :
3weeks
Packaging Details :
Standard
Peak Pulse Current (tP = 8/20μs) :
30A
ESD IEC 61000-4-2 (Air) :
±30kV
ESD IEC 61000-4-2 (Contact) :
±30kV
Operating Temperature Range :
-40 to +125℃
Storage Temperature Range :
-55 to +150℃
Lead Temperature (Soldering, 10s) :
+260℃
Description
ESD Protection ICs 5V Bidirectional ESDand Surge Protection Device
The SGM05HB1AM is designed to protect voltagesensitive components from ESD. Excellent clampingcapability, low leakage, high peak pulse currenthandling capability and fast response time provide bestin class protection on designs that are exposed to ESD.Because of its small size, it is suited for use in cellularphones, tablets, digital cameras and many other portableapplications where board space comes at a premium.
Key Features

● Low Clamping Voltage
● Low Leakage
● Small Package: UTDFN-1×0.6-2AL
● Protection for the Following IEC Standards:IEC 61000-4-2 Level 4: ±30kV Contact DischargeIEC 61000-4-5 (Lightning) 30A (8/20μs)
● These Devices are Pb-Free, Halogen Free/BFRFree and are RoHS Compliant

Applications
Battery Line Protection
Audio Line Protection
GPIO

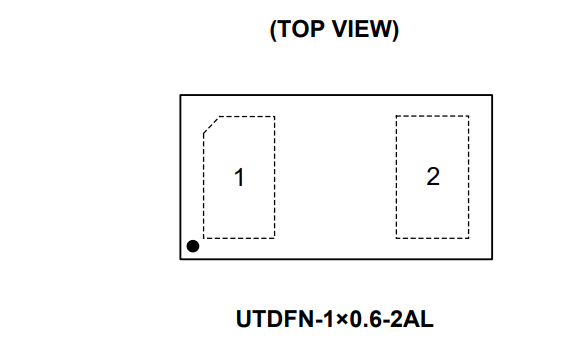

Pin Configurations
ESD Protection ICs 5V Bidirectional ESDand Surge Protection Device

Product Selection Guid
Channel Part Number
Configuration
VRWM
Max
(V)
IPPM
Max
(A)
CIN Typ (pF)
Packag
 Features
1 SGM05CB1A4
Bidirectional
 5 4 2.7
UTDFN-1×0.6-2L,XTDFN-0.6×0.3-2L
Low Capacitance, 1-Channel ESD Protection
1 SGM05CB1A7
Bidirectional
 5 7 9
X4DFN-0.63×0.33-2L
Low Capacitance, 1-Channel ESD Protection
1 SGM05CB1A8
Bidirectional
 5 8.5 9.6
UTDFN-1×0.6-2L
Low Capacitance, 1-Channel ESD Protection
1 SGM05FB1E2
Bidirectional
 5 2.4 0.3
UTDFN-1×0.6-2L,XTDFN-0.6×0.3-2L
Femto-Farad Capacitance, 1-Channel ESD Protection
2 SGM05FB2E2
Bidirectional
 5 2.5 0.3
UTDFN-1×0.6-3L
Femto-Farad Capacitance, 2-Channel ESD Protection

SGM05HB1AM
Bidirectional
 4.8/5.5 30 36
UTDFN-1×0.6-2AL
5V Bidirectional ESD and Surge Protection Device
1 SGM05UB1B3
Bidirectional
 5 4.2 0.5
UTDFN-1×0.6-2L,XTDFN-0.6×0.3-2L
Ultra-Low Capacitance, 1-Channel ESD Protection
1 SGM12CB1A5
Bidirectional
 12 5 1
UTDFN-1×0.6-2L
Low Capacitance, 1-Channel ESD Protection
1 SGM12UB1D2
Bidirectional
 12 2 0.35
UTDFN-1×0.6-2L,XTDFN-0.6×0.3-2L
Ultra-Low Capacitance, 1-Channel ESD Protection
1 SGM15CB1A4
Bidirectional
 15 4 1
UTDFN-1×0.6-2L
Low Capacitance, 1-Channel ESD Protection
1 SGM15UB1E2
Bidirectional
 15 2 0.35
UTDFN-1×0.6-2L,XTDFN-0.6×0.3-2L
Ultra-Low Capacitance, 1-Channel ESD Protection

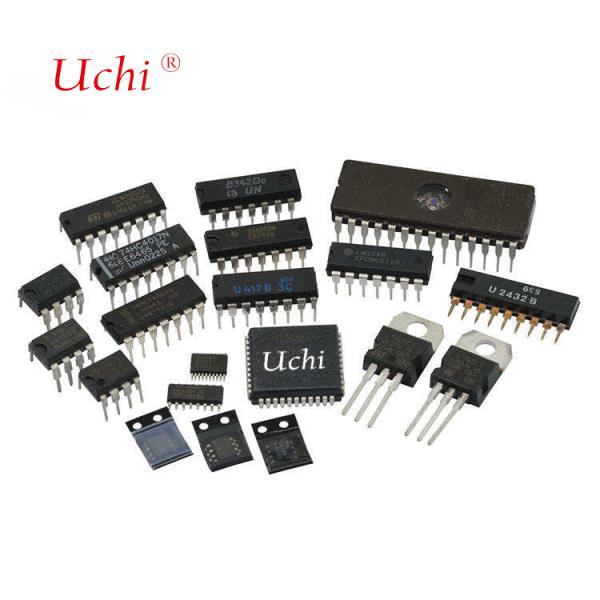

Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aerospace/defense systems.
ESD Protection ICs 5V Bidirectional ESDand Surge Protection Device
Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.
ESD Protection ICs 5V Bidirectional ESDand Surge Protection Device
This solution demonstrates the application of integrated circuits in portable POS machines. For assistance selecting the right product, please contact our technical support team.
