LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip
Specifications
Brand Name :
UCHI
Model Number :
SGM3732
Certification :
Completed
Place of Origin :
Dongguan China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs
Delivery Time :
3weeks
Packaging Details :
Standard
Input Voltage, VIN :
-0.3V to 6V
High Voltage Nodes, SW, VOUT :
-0.3V to 40V
Other Pins, FB, CTRL :
-0.3V to VIN + 0.3V
TSOT-23-6, θJA :
120℃/W
Junction Temperature :
+150℃
Storage Temperature Range :
-65 to +150℃
Lead Temperature (Soldering, 10s) :
+260℃
HBM :
4000V
MM :
200V
Description
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip
The SGM3732 is a high efficiency constant current LEDdriver with a 1.1MHz PWM boost converter. An internallow-side N-channel MOSFET and a high switchingfrequency make the SGM3732 easy to use smallcomponents and optimized for compact solutions.
The SGM3732 is capable of driving either up to 10LEDs in series for 38V output or total 260mA currentwith 3 LEDs in series per string while achieving highconversion efficiency. The LED current can beprogrammed by digital PWM dimming interface. ThePWM frequency is in the range from 2kHz to 60kHz.
The SGM3732 provides very low shutdown current. Italso includes a comprehensive set of protectionfeatures such as over-voltage protection, cycle-bycycle input current limit and thermal shutdown.The SGM3732 is available in a Green TSOT-23-6package. It operates over an ambient temperaturerange of -40℃ to +85℃
Key Features

● Input Voltage Range: 2.7V to 5.5V
● Support up to 10 LEDs in Series
● Integrated 40V/1.35A Switch
● High Efficiency PWM Boost Converter
● Switching Frequency: 1.1MHz
● Low Feedback Voltage: 200mV
● PWM Dimming Frequency: 2kHz to 60kHz
● 38V LED Open Protection
● 500kΩ Pull-Down Resistor on CTRL Pin
● Automatic Soft-Start for Reducing Inrush Current
● Less than 1µA Shutdown Current
● -40℃ to +85℃ Operating Temperature Range
● Available in a Green TSOT-23-6 Package

Applications
LED Backlighting
Mobile Phones and Digital Photo Frames
Portable Devices
Automotive Navigation

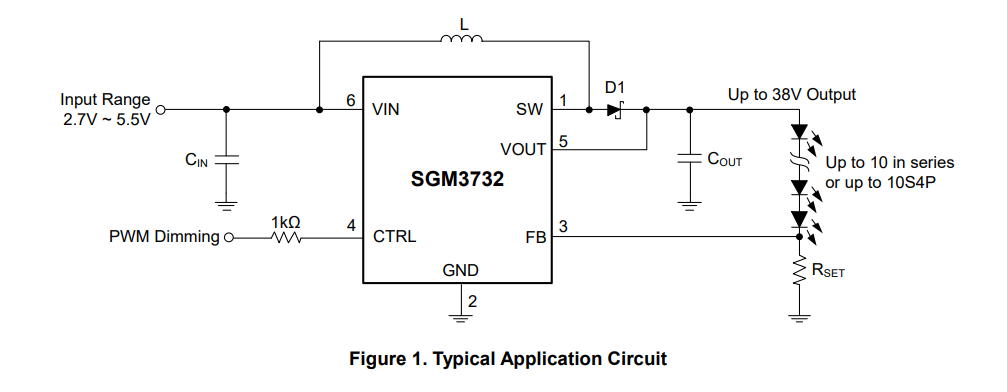

Typical Application
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip

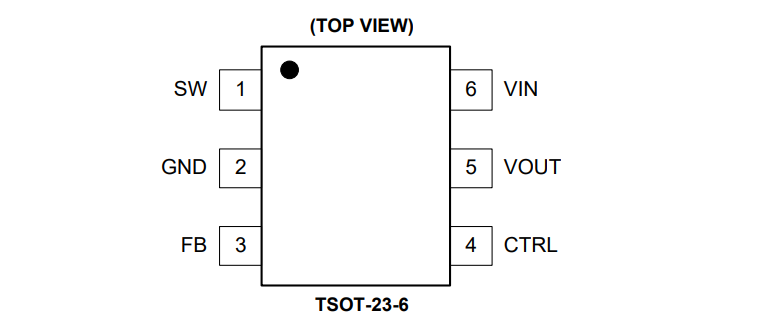

Pin Configurations
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip

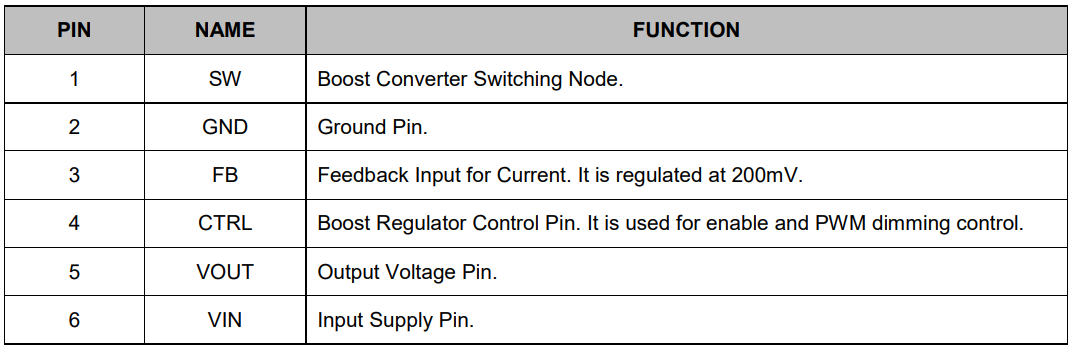

Pin Description

LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip

Product Selection Guid
Channels
per
Package
 Part Number
VIN
Min
(V)
VIN
Max
(V)
LEDs
per
String
Shutdown
Current
(μA)
Switching
Frequency
(MHz)
LED
Connection
Type
Quiescent
Current
(mA)
Dimming Method
Packag
 Features
1
SGM3732
2.7
5.5
 10
<1
1.1
Common Anode
0.2
PWM
TSOT-23-6
10 LEDs per String
2
SGM3738
 3 18 10
<1
 0.6
Common Anode
 0.24
PWM & One-Wire
TQFN-3×3-16L
2 Feedback Channels, 18V Input, Serial LED Driver
3
SGM3740
 3 18 10
<1
 0.6
Common Anode
 0.24
PWM & One-Wire
TQFN-3×3-16L
3 Feedback Channels, 18V Input, Serial LED Driver
4
SGM3740B
 3 18 10
<1
 0.6
Common Anode
 0.24
PWM & One-Wire
TQFN-3×3-16L
4 Feedback Channels, 18V Input, Serial LED Driver
3
SGM3741
 3 18 10
<1
 0.6
Common Anode
 0.24
PWM & PWM
TQFN-3×3-16L
3 Feedback Channels, 18V Input, Serial LED Driver
2
SGM3743
 3 18 10
<1
 1.2
Common Anode
 1.2
PWM & One-Wire
WLCSP-1.32×1.32-9B
2 Feedback Channels, 18V Input, Serial LED Driver
1
SGM3747
 2.7 5.5 10
<1
 1.1
Common Anode
 0.2
PWM
TSOT-23-6
1:500 High Performance, 10 LEDs per String
1
SGM3748
 2.7 5.5 10
<1
 1.1
Common Anode
 0.2
PWM
TDFN-2×2-8L
1:500 High Performance, 10 LEDs per String
1
SGM3749
 3 20 10
<1
 1.25
Common Anode
 0.4
PWM
TDFN-2×2-6L,TSOT-23-6
1:500 High Performance, 10 LEDs per String, 20V Input
1
SGM3750
 2.7 20 10
<1
 0.65
Common Anode
 0.4
PWM
TDFN-2×2-6L,TSOT-23-6
1:500 High Performance, 10 LEDs per String, 20V Input
1
SGM3752
 2.7 5.5 10
<1
1.2
Common Anode
 0.2
PWM
TSOT-23-6
1:250 High Performance, 10 LEDs per String
1
SGM3756
 2.7 5.5 10
<1
1.2
Common Anode
 0.2
PWM
TDFN-2×2-6L
1:250 High Performance, 10 LEDs per String
1
SGM3757
 2.7 5.5 10
<1
1.2
Common Anode
 0.2
PWM
TDFN-2×2-8L
1:250 High Performance, 10 LEDs per String
1
SGM3758
 2.7 5.5 7
<1
1.2
Common Anode
 0.2 PWM
TDFN-2×2-6L
1:500 High Performance, Screen Flash Mode Support
1
SGM3759
 2.7 5.5 7
<1
1.2
Common Anode
 0.2
PWM
TSOT-23-6
1:500 High Performance, Screen Flash Mode Support
3
SGM37603A
 3 24 8
<1.5
1.2
Common Anode
 0.66
PWM & I 2C
WLCSP-1.78×1.36-12B,TDFN-3×3-12L
12-Bit, 3 Feedback Channels, 24V Input, Serial LED Driver
3
SGM37603S
 3 5.5 9
1.2
Common Anode
 1.35
PWM & I 2C
WLCSP-1.35×1.7-12B
12-Bit, 3 Feedback Channels LED Driver
4
SGM37604A
 3 24 8
<1.5
1.2
Common Anode
 0.66
PWM & I 2C
 WLCSP-1.78×1.36-12B,TDFN-3×3-12L
12-Bit, 4 Feedback Channels, 24V Input, Serial LED Driver
4
SGM37604S
 3 5.5 9
1.2
Common Anode
 1.35
PWM & I 2C
 WLCSP-1.35×1.7-12B
12-Bit, 4 Feedback Channels LED Driver
1
SGM3766
 2.7 5.5
10
<1
1.2
Common Anode
 0.2
PWM
TSOT-23-5
1:500 High Performance, 10 LEDs per String

Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aerospace/defense systems.
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip
Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.
LED Backlight Drivers PWM Dimming, 38V Boost LED Driver Integrated Circuit IC Chip

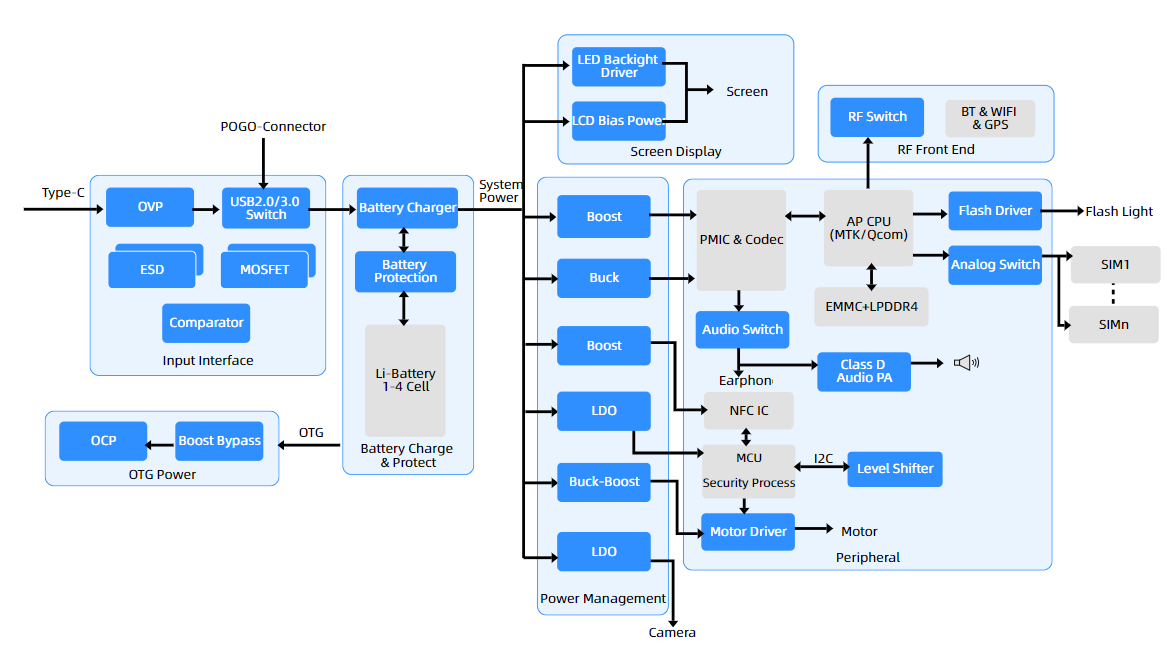

This solution demonstrates the application of integrated circuits in portable POS machines. For assistance selecting the right product, please contact our technical support team.
