1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
Specifications
Brand Name :
UCHI
Model Number :
SGM42507
Certification :
Completed
Place of Origin :
Dongguan China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs
Delivery Time :
3weeks
Packaging Details :
Standard
VCC :
-0.3V to 9V
Digital Input Pin Voltage Range :
-0.3V to 6V
SC70-6, θJA :
245.8℃/W
TSOT-23-6, θJA :
217.8℃/W
Junction Temperature :
+150℃
Storage Temperature Range :
-65 to +150℃
Lead Temperature (Soldering, 10s) :
+260℃
HBM :
5000V
CDM :
1000V
MM :
300V
Description
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
The SGM42507 is an integrated driver IC for drivingmotors and coils in industrial applications. The PH andEN/FAULT pins allow simple interfacing to controllercircuits.
Internal protection functions are provided for undervoltage lockout (UVLO), over-current protection (OCP)and over-temperature protection (OTP). Faultconditions are indicated by the EN/FAULT pin.
The SGM42507A is available in a Green TSOT-23-6package. The SGM42507B/C are available in GreenSC70-6 and TSOT-23-6 packages. They operate overan ambient temperature range of -40℃ to +125℃.
Key Features

● Internal OC/UV/OT Protections
 Over-Current Threshold Options:0.45A/0.9A/1.5A
 Under-Voltage Threshold Options:1.75V/2.8V/3.6V
 Over-Temperature Protection
● Up to 7.5V Supply Range for ApplicationsPowered by:
 1 Li+/Poly Cell 2/3/4 Dry Cells
 1/2 LiSOCl2 Cell(s)
● Selectable Slow or Fast Decay Modes
● -40℃ to +125℃ Operating Temperature Range
● SGM42507A is Available in a Green TSOT-23-6PackageSGM42507B/C are Available in Green SC70-6 andTSOT-23-6 Packages

Applications
Robot
Utility Meter
Solenoid

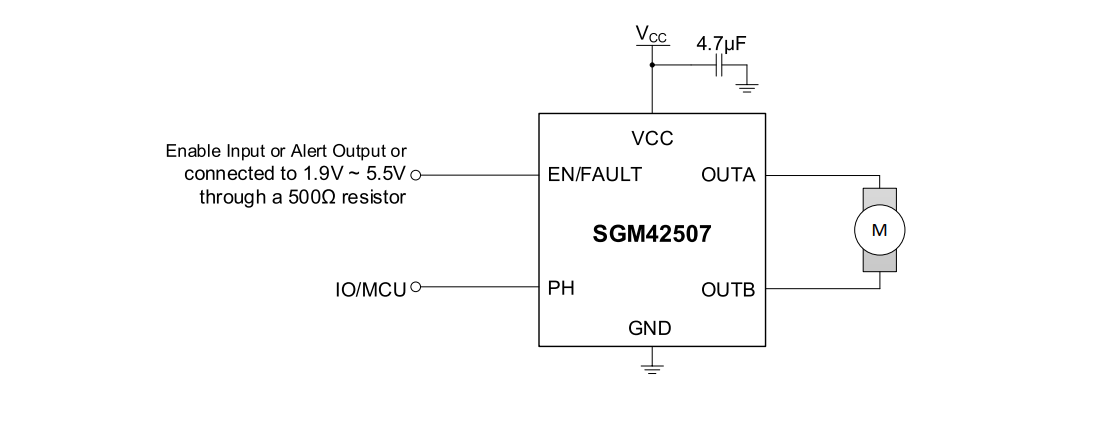

Typical Application
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip

Pin Configurations
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
Pin Description

1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip

Product Selection Guid
Part Number
Full Bridges
per
Package
Motor Type
VCC
Min
(V)
VCC
Max
(V)
RMS
Output Current
(A)
Peak
Output Current
(A)
Control
Interface
RDS(ON)
(HS+LS) per Channel
(mΩ)
Operating
Temperature
Range (℃)
Packag
 Features
SGM42500
 1
DC Motor
7
 40
3.6
PWM
410
-40 to +125
SOIC-8 (Exposed Pad)
3.6A Brushed DC Motor Driver
SGM42501
 1
DC Motor
7
 40
3.6
PH/EN
410
-40 to +125
SOIC-8 (Exposed Pad)
3.6A Brushed DC Motor Driver
SGM42505
 1
DC Motor
7
 40
3.6
PWM
410
-40 to +125
SOIC-8 (Exposed Pad)
3.6A Brushed DC Motor Driver
SGM42506
 1
DC Motor
7
 40
3.6
PH/EN
410
-40 to +125
SOIC-8 (Exposed Pad)
3.6A Brushed DC Motor Driver
SGM42507
 1
DC Motor
1.9
 7.5
1.5
PH/EN
 555
-40 to +125
SC70-6,TSOT-23-6
1.5A, 7.5V H-Bridge Driver for Motor/Coil
SGM42512
 1
DC Motor
1.9
 5.5
1.5
PH/EN
 545
-40 to +125
 TSOT-23-6
Single H-Bridge Motor Driver
SGM42513
 1
DC Motor
1.9
 5.5
1.5 PWM 545
-40 to +125
 TSOT-23-6
Single H-Bridge Motor Driver
SGM42540
 1
DC Motor
8
 45 3.5 4.5
PH/EN
210
-40 to +85
TSSOP-28 (Exposed Pad)
Single H-Bridge DC Motor Driver
SGM42609
 1
DC Motor
 2.7 24 1.5 2 PWM 480 -40 to +125
MSOP-10,TDFN-3×3-10L
 Single H-Bridge Motor Driver
SGM42541
 2
DC/Stepper Motor
8
 45
2 PWM 420 -40 to +85
TSSOP-28 (Exposed Pad)
Dual H-Bridge Driver
SGM42544
4 Half
DC/Stepper Motor
8
 45 1.75 2
EN/IN
 440 -40 to +125
TSSOP-28 (Exposed Pad)
Quad Half-Bridge Driver
SGM42600
 2
DC/Stepper Motor
 2.7 24 1.5 2 PWM 410 -40 to +125
TSSOP-16 (Exposed Pad),TQFN-4×4-16L
Dual H-Bridge Motor Driver
SGM42610
 2
DC/Stepper Motor
2.5
 16 0.85 1.2
4×PWM
1540
 -40 to +85
MSOP-10 (Exposed Pad),SSOP-10
Stepper Motor Driver
SGM42611A
 2
DC/Stepper Motor
2.5
 16 0.85 1.2
4×PWM
1540
 -40 to +85
MSOP-10 (Exposed Pad),SSOP-10
Stepper Motor Driver
SGM42611B
 2
DC/Stepper Motor
2.5
 16 0.85 1.2
2×PWM
1540
 -40 to +85
MSOP-10 (Exposed Pad),SSOP-10
Stepper Motor Driver
SGM42633
 2
DC/Stepper Motor
2.5
 12 0.6 1 PWM
1610
 -40 to +125
TSSOP-16 (Exposed Pad),TQFN-3×3-16L
Dual H-Bridge Motor Driver
SGM42606
 1
DC Motor
 2 12 3 6 PWM 72 -40 to +85
TQFN-5.5×3.5-24L
H-Bridge Motor Driver
SGM42622B
 2
Stepper Motor
 1.8 12 1.3 2
STP/DIR
 500 -40 to +85
TQFN-3×3-16L
Stepper Motor Driver with 1/256 Micro-Stepping

Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aer ospace/defense systems.
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip
Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.
1.5A, 7.5V H-Bridge Driver For Motor/Coil Integrated Circuit IC Chip

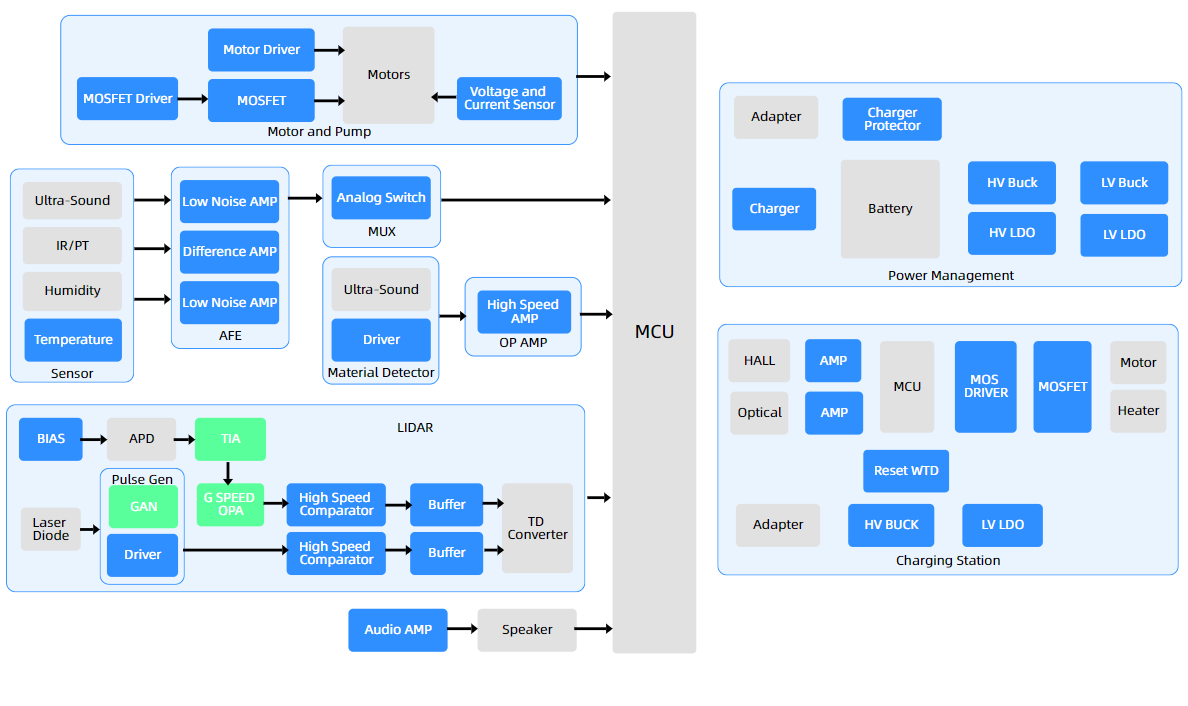

This solution demonstrates the application of integrated circuits in sweeping robots. For assistance selecting the right product, please contact our technical support team.
