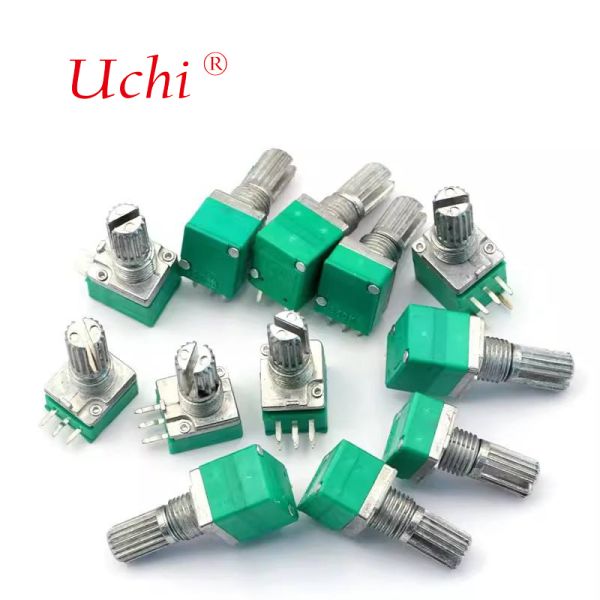

RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
Specifications
Brand Name :
Uchi
Model Number :
RK097NS/RV097NS
Certification :
SMC
Place of Origin :
Dongguan，Guangdong,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Supply Ability :
50000000pcs per Month
Resistance :
10Ω~100MΩ
Application :
Audio equipment
Key words :
20k potentiometer rotary
Shaft Length :
15mm(20mm & 10 mm can be Customization)
Resistance Tolerance :
±20%
Total rotation angle :
300°±10°
rotation Life :
15000 cycles
Single package size :
10X10X5 cm
Single gross weight :
0.250 kg
Description
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS is a potentiometer. It can be used to regulate the single -connected and dual -connectors of the volume, sound,There are four pins

RV097NS RK097NS single -connected dual -connected dual -connected electric titer advantages: excellent craftsmanship, smooth movement, reliable performance, stable performance, insulation and dustproof interface protection level protection level.


Product size
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer

Specification parameters

Product number RV097NS/RKO97NS potentiometer
Full impedance value 5K,10K,20K,50K,100K,500K
Full impedance resistance poorly accommodate ±20%
rated power 0.05W
Characteristics change characteristics ABC
Residual resistance 20Ω
Sliding noise 100mv
Resistance AC 250V/1min
Connection error -40dB~OdB+3dB MAX
Switching power DC12V1A (5 pins, 8 pins)
Rotation angle 300+5°
Rotating torque 20-250gf.cm
Stop intensity 3Kgf.cm
Switching angle 50°Max
Switch rotation torque 150-300gfcm
Rotation life 10000 times
Operating temperature -10°C~+70°
application area
RK097NS/RV097NS volume potentiometer is suitable for lighting audio equipment: tuning device, shining table, professional amplifier CD/VCD/DVD machine, balanced, car built -in audio, etc.
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
product catalog

RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer

Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing.
  • Advanced production equipment
  • Professional R&D team
  • OEM/ODM capabilities
  • Strict quality control standards
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
  • Express Mail Service
  • DHL Express
  • UPS
  • FedEx
RK097NS 5-pin 9mm 10K Rotary Mono Precision Potentiometer
Frequently Asked Questions
  • Are you a factory or trading company? We are a factory offering direct pricing with professional technical support.
  • Could you provide samples? Samples are available upon request after order placement.
  • Can your product be customized? We accept OEM/ODM orders with flexible requirements.
  • What is your delivery time? Delivery varies by quantity and model, with urgent requests accommodated when possible.
  • Do you offer after-sales service? We provide comprehensive 24-hour support for all products.
