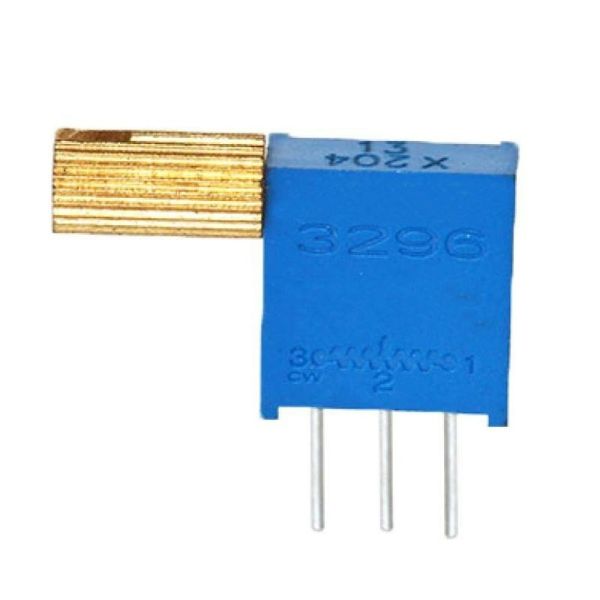

3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Specifications
Brand Name :
Uchi
Model Number :
3296X
Certification :
SMC
Place of Origin :
Dongguan，Guangdong,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Supply Ability :
50000000pcs per Month
Resistance :
10Ω~5MΩ
Specification :
3296W\3296Z\3296Y\3296X\3296P
Features :
Multi-turn
Terminal resistance :
≤±1%R or 2Ω
Insulation resistance :
≥ 1GΩ (100V AC)
Temperature range :
-55°C~+125°C
Resistance Tolerance :
±10%
Size / Dimension :
10*9.6mm
Rated power :
0.5W ( 300V max)
TCR :
±250*10-6/°C
Description

3296X 8mm copper long knob 10k trimmer potentiometer Precision potentiometer

The 3296X is a multi-turn potentiometer with adjustment accuracy of 5% or 10%. With a resistance range of 10Ω to 5MΩ and total mechanical stroke of 28±2 turns, it's one of the most commonly used multi-turn potentiometers. The 3296 series includes various models (3296W, 3296X, 3296P, 3296Y, 3296Z) with different specifications and packaging.

Product Features
  • High accuracy and reliability
  • Long service life
  • High resolution for precise adjustments
  • Suitable for signal gain and linearity adjustment
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Specification Parameters
3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Electrical Characteristics
Range of nominal resistance 10Ω~5MΩ
Resistance tolerance ±10%
Terminal resistance ≤±1%R or 2Ω
Contact resistance variation (CRV) ≤±1%R or 3Ω
Insulation resistance ≥ 1GΩ (100V AC)
Withstand voltage 640V (DC or AC peak value)
Effective electrical travel ≥70% of mechanical travel
Environment Characteristics
Rated power 0.5W (300V max)
Temperature range -55°C~+125°C
TCR ±250×10-6/°C
Collision (390m/S2, 4000 times) ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Physical Characteristics
Total mechanical travel 28±2 lap
Starting torque ≤25mN.m
Packaging

Standard package: 50 pcs/tube (3296W, 3296Y) or 40 pcs/tube (3296X, 3296Z, 3296P)

Applications

This potentiometer is used in industrial control, communication equipment, precision instruments, automotive electronics, LCD panels, switching power supplies, and other fields.

3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Company Profile

We are a factory with many years of production experience, dedicated to providing high-quality products and services. With advanced production equipment and professional R&D team, we can provide sufficient capacity and accept OEM/ODM orders.

Our product quality has been widely recognized, and our after-sales service highly praised. We adhere to "quality first, customer first" philosophy and look forward to your cooperation.

3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Shipping Options

We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx for safe and efficient delivery.

3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Frequently Asked Questions
Are you a factory or trading company?

We are a factory offering direct pricing with professional technical support.

Could you provide samples?

Samples available upon request after order placement.

Can your product be customized?

We accept OEM/ODM orders with flexible requirements.

What is your delivery time?

Varies by quantity and model, with urgent request accommodation.

Do you offer after-sales service?

Comprehensive 24-hour support for all products.
