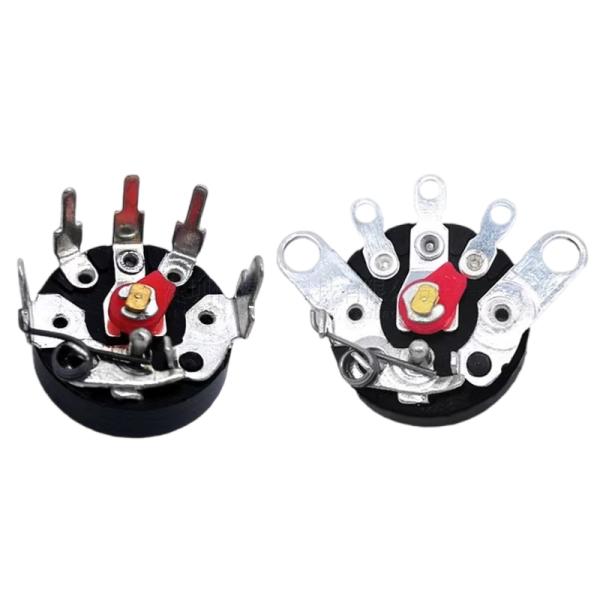

RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
Specifications
Brand Name :
Uchi
Model Number :
RV12
Certification :
SMC
Place of Origin :
Dongguan，Guangdong,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Supply Ability :
50000000pcs per Month
Resistance :
5K
Size / Dimension :
16*12mm
Packaging Type :
Paper package
Swtich action :
50g.cm~350g.cm
Diameter :
12mm 14mm 16mm
Technology :
Carbon Composition
Max. Operating Voltage :
AC150V
switch rated power :
1.0A at AC/DC 12V
rotational life :
10000cycles
Operating Temperature :
-10 ~ 60
Rated Power :
0.1W
Description
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
The advantages of RV12 potentiometer are its simple structure and convenient use, which are widely used in various audio equipment. The RV12 potentiometer also has good damping characteristics and linearity, which can achieve precise volume adjustment. It should be noted that when using the RV12 potentiometer, it is necessary to pay attention to its rated voltage and rated load resistance value to ensure effective and safe use.
The RV12S potentiometer is a knob potentiometer commonly used in audio equipment and electronic devices. It consists of a knob and a resistor. The knob is used to adjust the resistance of the potentiometer, while the resistor is used to control the flow of current.
The resistance of the RV12S potentiometer can be adjusted according to the position of the knob, which is usually marked with a scale to indicate the magnitude of the resistance. By turning the knob, the resistance of the potentiometer can be changed, thereby adjusting the current or signal in the circuit.


Specification

Electronical Characteristics Total Resistance 100-1MΩ
Total Resistance Tolerance ±20%
Resistance of temperature
change character		 20°C~-75°C:ΔR/R≤±5%R
-25°C~-20°C:ΔR/R≤±4.5%R
Resistance taper B
Residual resistance Term 1~2: less than 10Ω
Term 2~3: less than 20Ω
Rated power 0.1 W
Max. operating voltage AC 200V
Rotational noise Less than 47mV
Insulation resistance More than 50MΩ at DC500V
Withstand voltage 1 minute at: AC500V
Switch contact resistance /
Switch rated power /
Mechanical Characteristics Rotation angle 260 °±10°
Rotation torque 20~150gf. Cm
Pull-push strength 1Kgf,cm
Rotational stop-end torque 2Kgf,cm
Resistance or soldering heat 260 ±5°C and less than 3 seconds
Switch rotational angle /
Switch action /
Durability Rotation life 10.000cycles

Application areas

Widely used in audio, lighting, speed regulation, household appliances, toys, LED and other equipment

Product size
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch

Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
  • Advanced production equipment
  • Professional R&D team
  • OEM/ODM capabilities
  • Strict quality control standards
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
  • Express Mail Service
  • DHL Express
  • UPS
  • FedEx
RV12 Linear Carbon Film Rotary Finger Wheel Potentiometer With Switch
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
