Specifications
Brand Name :
HYH
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram,D/P
Supply Ability :
10set/month
Delivery Time :
30days
Type :
Simulation Equipment
Simulated Targets :
Aircraft, Missiles, Ships, Ground Vehicles
Power Output :
Up to 1000 Watts
Simulated Environment :
Air, Sea, Land
Pulse Repetition Frequency :
100-1000 Hz
Operating Temperature :
0°C - 50°C
Control Interface :
Ethernet, RS-232, GPIB
Modulation :
AM, FM, Pulse, Chirp
Signal Generation Modes :
Single, Dual, and Multichannel
Frequency Range :
1 MHz - 40 GHz
Pulse Width :
1-10 μs
Minimum Detection Range :
10 m
Operating Frequency Band :
X Band
Range Resolution :
1-10 m
Scanning Range Pitch :
0°-40°
Antenna Diameter :
1-5 m
Blind Range :
180m
Scan Mode :
Sector Scan
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Transmitter Power :
1-10 kW
Range :
Up To 100 Km
Description

Advanced Tactical Simulator: 16 Simultaneous Signals, Phase Coding & Military Certification

Functional Overview

The LD-RS320400 Portable Radar Signal Simulator operates across a 32–40 GHz frequency range, capable of generating multiple radar signals (including complex modulated signals) and simulating radar antenna patterns and scanning characteristics. It creates realistic, combat-ready electromagnetic environments for radar reconnaissance/jamming equipment testing, performance validation, and tactical training. Ideal for military units, testing bases, and research institutes.

Key Features

  1. Advanced Signal Simulation: Utilizes mainstream technologies for high-fidelity signal generation and real-world countermeasure testing.

  2. Portable & Lightweight: Compact design (≤10 kg total weight) for easy transport and rapid deployment.

  3. Multi-Platform Compatibility: Supports ground elevation, vehicle mounting, and UAV payload integration.

Performance Specifications

Category Details
Frequency Range 32–40 GHz (customizable)
Instantaneous Bandwidth 1000 MHz
Frequency Accuracy ≤10⁻⁶ × center frequency
Radar Signal Types - Continuous wave
- Pulse (conventional, frequency-agile, diversity)
- LFM (up to 40 MHz/μs)
- Phase-coded (2/4/8 phases)
PRI Range & Accuracy - Range: 3 µs–50,000 µs
- Accuracy: ≤(0.05 + 10⁻³×PRI) µs
PW Range & Accuracy - Range: 0.1 µs–5000 µs
- Accuracy: ≤(0.05 + 10⁻³×PW) µs
Output Power - Linear output: ≥1 W (CW)
- Power control: 30 dB range, 1 dB step
Signal Capacity Up to 16 simultaneous signals in 1000 MHz bandwidth
Environmental - Storage: -40°C to +65°C
- Operation: -20°C to +50°C
Power & Control - AC 220V or mobile power (≥6 hours runtime)
- Ethernet/wireless remote control
Portability Total weight ≤10 kg (including antennas)

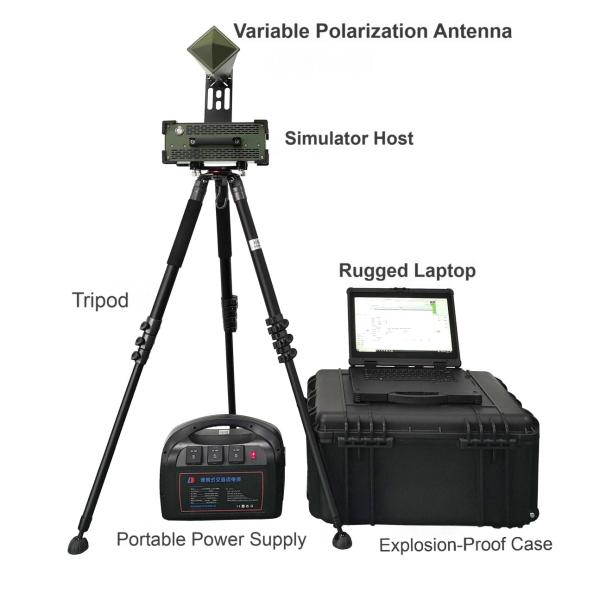

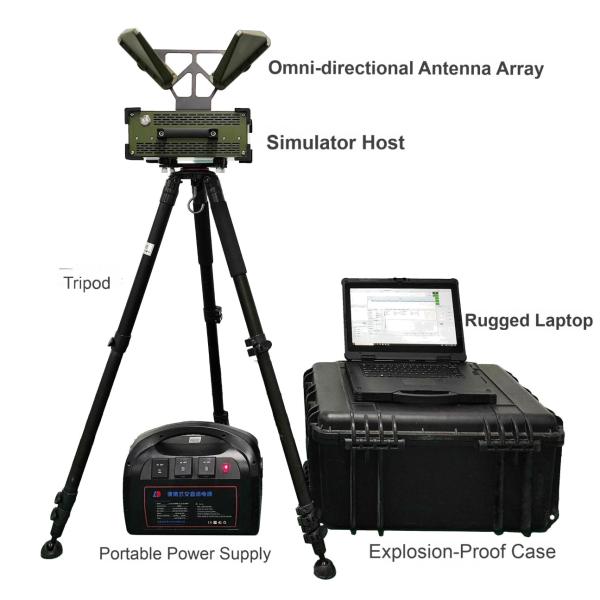

Configuration List

No. Item Qty. Config. Remarks
1 Simulator Main Unit 1 set Standard 32–40 GHz frequency band
2 Antenna Assembly 1 set Standard Includes mounting brackets
3 Rugged Laptop 1 set Standard —
4 Mobile AC Power Supply 1 set Standard 1000W rated power
5 Tripod 1 set Standard Height ≥1.5 meters
6 System Cables 1 set Standard RF, power, and Ethernet cables
7 Documentation Kit 1 set Standard Includes CD
8 Explosion-Proof Case 1 set Standard —
9 Carbon Fiber Lift Pole 1 set Optional Height ≥5 meters
10 Multi-Rotor UAV 1 set Optional Payload capacity ≥10 kg

Advanced Radar Signal Simulator 16 Simultaneous Signals Phase Coding Military Certificated

Design & Applications

  • Rapid Deployment: Lightweight and compact for quick setup in field operations.

  • Multi-Scenario Use: Compatible with ground elevation, vehicle platforms, and UAV integration.

  • High Precision: ±1 µs PRI/PW accuracy for realistic electronic warfare (EW) training.

Why Choose This Simulator?

✅ Broadband Coverage: 32–40 GHz frequency range for advanced radar systems.
✅ Flexible Signal Generation: Supports LFM, phase coding, and multi-signal output.
✅ Military-Grade Durability: Operates reliably in extreme temperatures (-20°C to +50°C).
