• Falcon100-B L-band Integrated Detection System | 500km Range, High-Precision Military Reconnaissance & Multi-Station Networking

• Product Overview

The Falcon100-B is a combat-ready L-band integrated detection device designed for practical operations. It enables full-time, all-domain reconnaissance, interception, high-precision direction finding, and accurate identification of line-of-sight targets. The system supports signal types including NATO Identification Friend or Foe (IFF), JTIDS (Link16), TACAN, and DME. A single unit can independently execute reconnaissance and direction-finding missions, while multiple units can form a networked collaborative positioning system to effectively address the challenge of tracking low-altitude penetrating targets.

• Technical Features

1. Compact size, lightweight, low power consumption, and ease of transport and deployment;

2. Long operational range (over 500 km) and high direction-finding accuracy (better than 1.5° RMS);

3. Extremely high sensitivity for detecting specialized signals with real-time demodulation capabilities;

4. Flexible deployment: standalone reconnaissance/direction-finding or multi-station collaborative positioning.

• Performance Specifications

1. Capable of reconnaissance, demodulation, decoding, direction finding, and storage of IFF signals;

2. Ability to identify target attributes using IFF plaintext information;

3. Dedicated channel processing and real-time demodulation for IFF Mode 5 signals;

4. Supports classified IFF data interception with customizable data interfaces;

5. Continuous reconnaissance, direction finding, and storage of JTIDS (Link16) signals;

6. Continuous reconnaissance, direction finding, and storage of TACAN and DME signals;

7. Reserved high-precision time-space annotation interfaces for time-difference positioning networks;

8. Number of detection channels: 6;

9. Frequency range: 1018 MHz ~ 1102 MHz;

10. Detection coverage: 360° instantaneous horizontal omnidirectional;

11. Detection range: 500 km (reconnaissance), 400 km (direction finding);

12. Instantaneous dynamic range: 50 dBm (IFF signals), 40 dBm (other signals);

13. Direction-finding accuracy: Better than 1° (RMS, standard conditions);

14. Maximum detectable targets: ≥200.

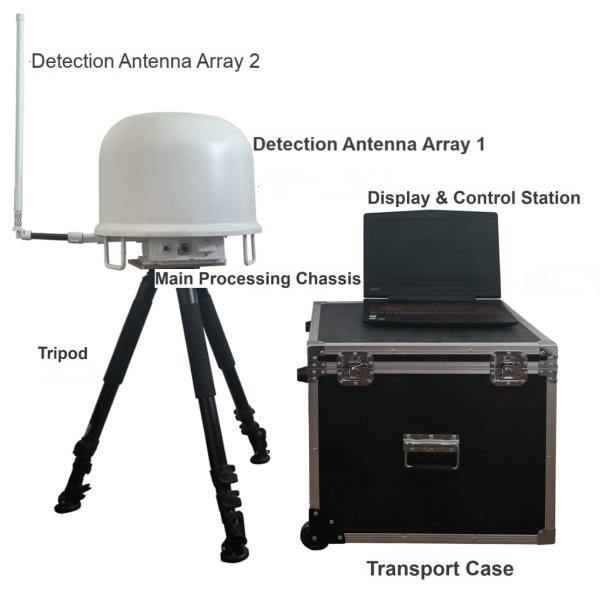

• Configuration List

  ---

  No. Item Qty. Config. Remarks

  复制

   1        Main Unit                1 set      Standard       L-band configuration    2        Rugged Laptop            1 set      Standard      3        AC Mobile Power Supply   1 set      Standard      Rated power: 1000W    4        Tripod                   1 set      Standard      Height ≥1.5 meters    5        System Cables            1 set      Standard      Ethernet/power cables    6        Documentation Kit        1 set      Standard      Includes CD    7        Explosion-Proof Case     1 set      Standard
