Advanced Professional UAS Detection System For Interference Target Integration
Advanced Professional UAS Detection System For Interference Target Integration
Advanced Professional UAS Detection System For Interference Target Integration
Advanced Professional UAS Detection System For Interference Target Integration
Specifications
MOQ :
1
Price :
Negotiable
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15days
Minimum Detection Range :
10 m
Operating Frequency Band :
X Band
Range Resolution :
1-10 m
Scanning Range Pitch :
0°-40°
Antenna Diameter :
1-5 m
Blind Range :
180m
Scan Mode :
Sector Scan
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Transmitter Power :
1-10 kW
Pulse Repetition Frequency :
100-1000 Hz
Range :
Up To 100 Km
Description

XHMN-HHTS-SCXKU Advanced and Professional Radar Signal Simulation for Interference and Target Integration

Product Description

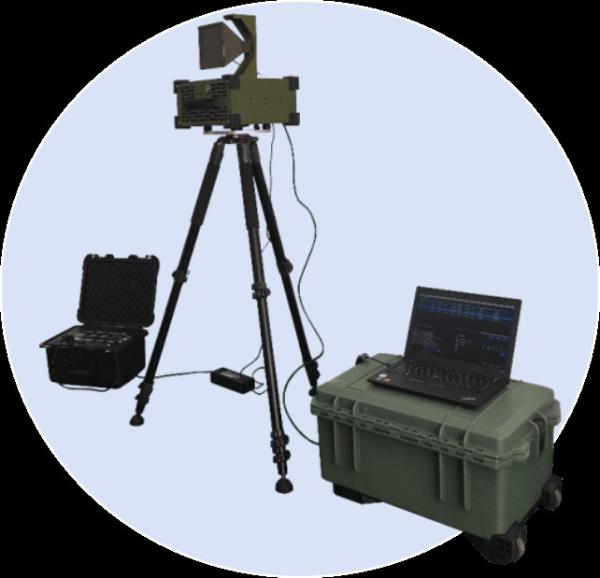

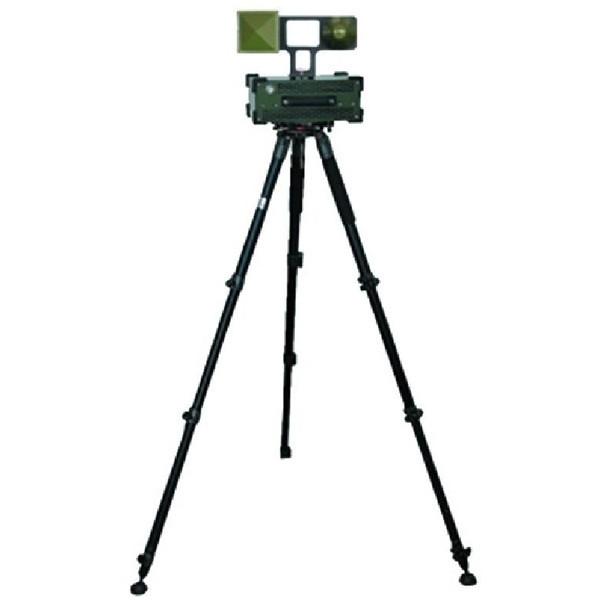

Interference and Target Integration Simulator

Product Introduction:


The interference and target integration simulator is based on digital radio frequency memory (DRFM), digital jamming synthesis (DJS) and other technologies, and can simulate radar interference scenarios such as long-range support interference, team support interference, self-defense interference, etc. It can flexibly generate interference signals of noise suppression, coherent suppression, deception and other styles, as well as high-precision radar target echo signals. The signal parameters are flexible and controllable, which can create a realistic interference and target environment for air defense early warning radars within the working frequency band. It is suitable for radar interference and anti-interference performance testing, tactical technology training and other application scenarios, and meets the needs of users such as troops, bases, firing ranges, and research institutes.

Product Features:


1, Based on mainstream technology realization, strong signal simulation ability, good effect of actual installation confrontation test.
2, Portable design, small equipment size, easy transportation and use.
3, Strong multi-platform adaptability, meet the needs of ground, vehicle, UAV and other multiple use.

Parameter Name Parameter Value
Operating Frequency 2GHz-18GHz
Instantaneous Operating Bandwidth 400MHz,1000MHz
Interference Transmit Performance Transmit Power ≥5W Continuous Wave
Transmit Power (Single Channel): ≥ 10W Continuous Wave
Reconnaissance Reception Performance Receiver Sensitivity:≤-60dBm
Interference Simulation Performance Noise suppression interference, coherent suppression interference, deception interference, combination interference
Target Simulation Performance Quantity: 1-8 batches, can be Planned
RCS: Range 0.01m2-100m2
Distance: Range 10km-500km
Speed: range ±1000m/s,Accuracy≤1m/s
Environmental Adaptability Storage Temperature:-40℃-+65℃
Operating Temperature: -20℃-+50℃
Power Supply Method AC220V
Weight ≤10kg(Includes Main Unit and Antenna)
