PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Seaworthy packing or bare packing or as your requirements
Supply Ability :
200 Sets per Year
Price :
$3000-$8000/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Condition :
New
Power :
15kw
Warranty :
1 Year
Key Selling Points :
Easy to Operate
After-sales Service Provided :
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Port :
SHANGHAI
Description

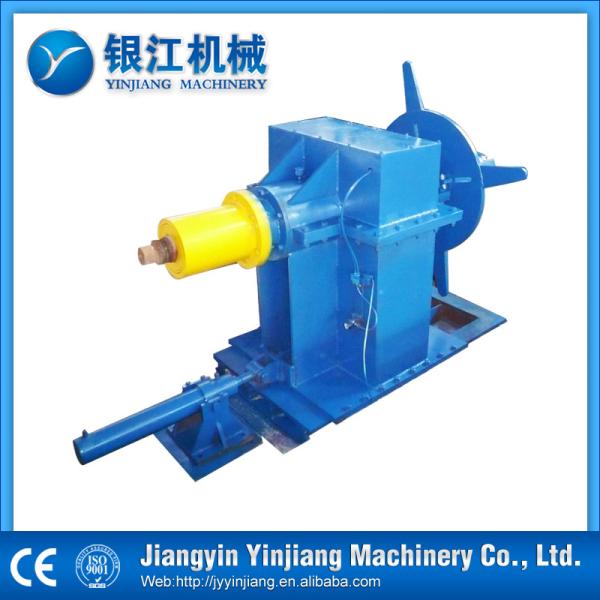

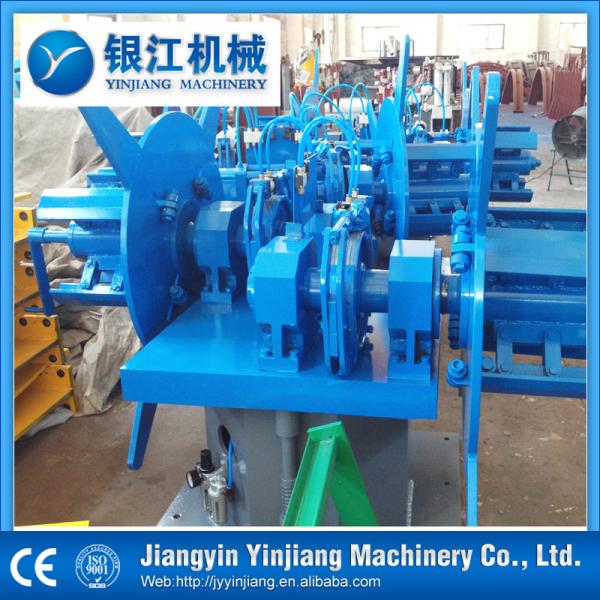

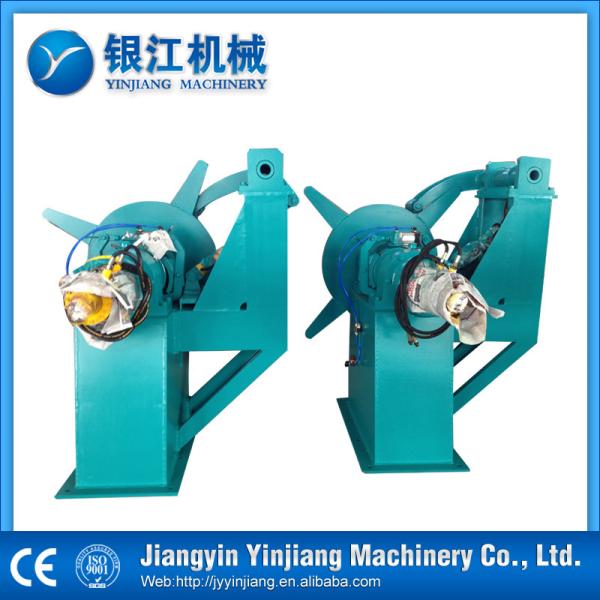

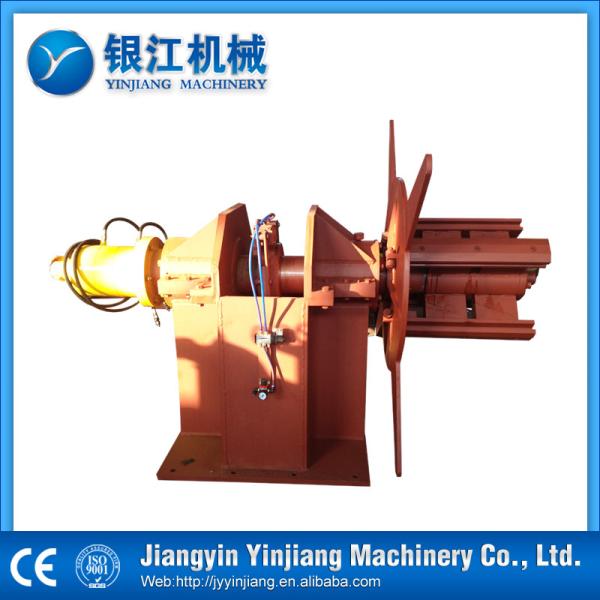

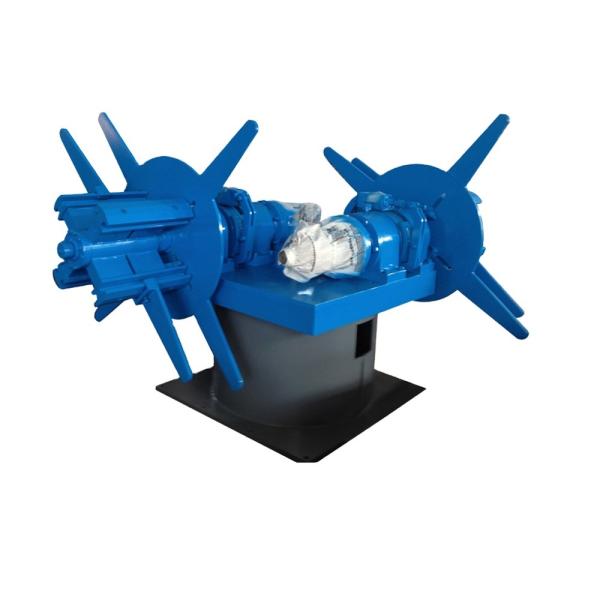

Tube mill uncoiler machine/decoil machine for Pipe production Line

Product Description

Uncoiler is one of the essential and important equipment in welded pipe production line. One of its functions is to support the coil by tightening the inner hole of the coil; The other is to feed the steel strip head into the leveler through rotation with the cooperation of the straightener. Therefore, the performance of uncoiler is very important to the whole production line. In many years of design practice, the structure of the uncoiler has been continuously optimized and improved, so that the performance of the uncoiler has been improved. The uncoiler spindle has two functions: one is to drive the steel coil to rotate; The other is the tension support of steel coil.

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine PLC Steel Coil Uncoiler 200-600mm Metal Slitting MachinePLC Steel Coil Uncoiler 200-600mm Metal Slitting MachinePLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

Specifications

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

NO. Product Name Model Steel Strip Width(mm) Steel Strip Thickness(mm)
1 Single-Head manual uncoiler ≤250 ≤3
2 Double-Head manual uncoiler YJ32 ≤100 ≤4
YJ60 ≤200 ≤4
3 Single-head simple uncoiler YJ400 ≤420 ≤3
YJ550 ≤550 ≤3
YJ750 ≤750 ≤3
4 Hydraulic uncoiler double-head ≤1050 ≤10
single-head ≤1050 ≤10

Company Information

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

Packaging & Shipping

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

Team & Certificate

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

Workshop Show

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

Working Flow

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine

FAQ

PLC Steel Coil Uncoiler 200-600mm Metal Slitting Machine
