Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Bare packing, or according to the customer's request...
Supply Ability :
200 Sets per Year
Price :
$3500-$9500/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty :
1 Year
Key Selling Points :
Easy to Operate
After-sales Service Provided :
Field installation, commissioning and training
Color :
according to customer's request
After sales service :
provide spare parts and online support
Usage :
used for pipe mill line
Port :
SHANGHAI
Description

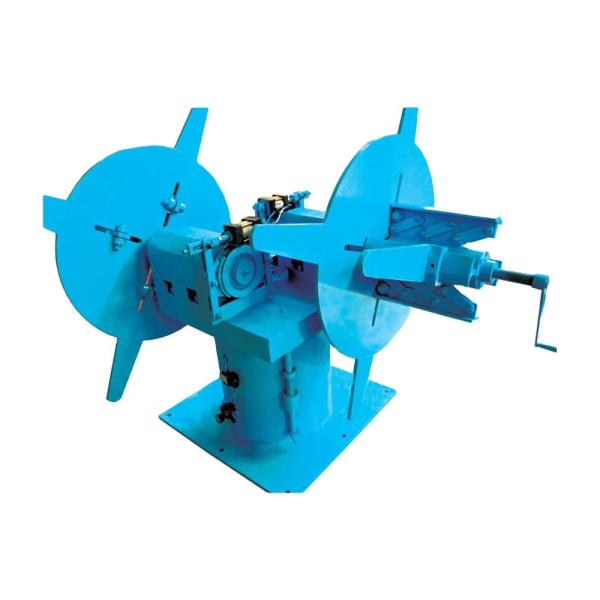

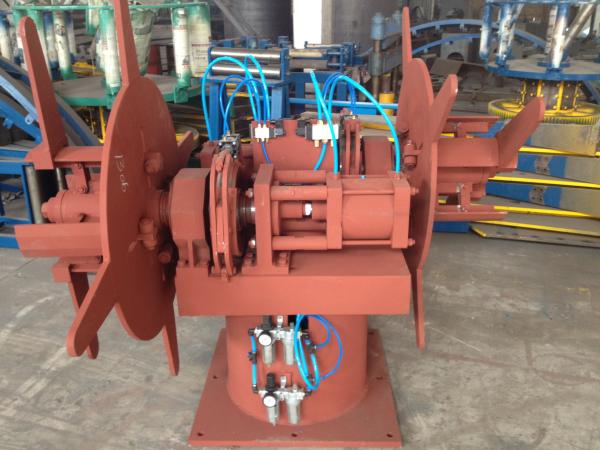

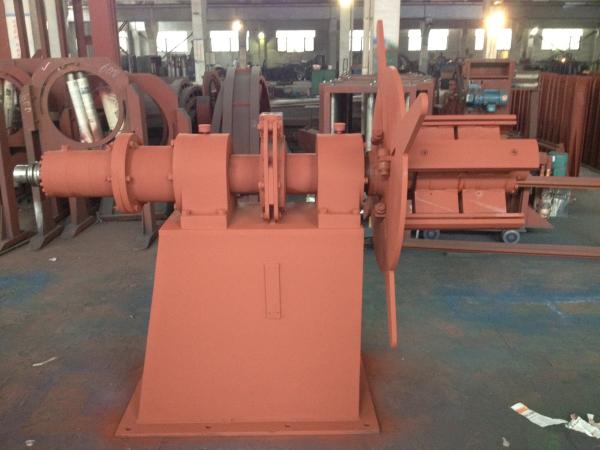

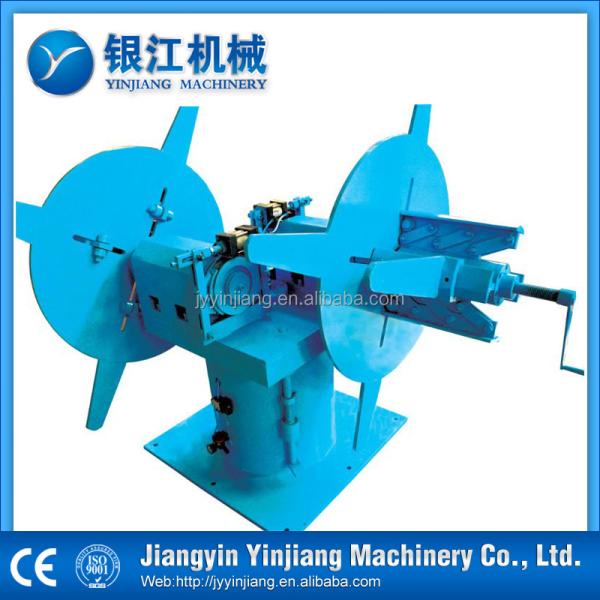

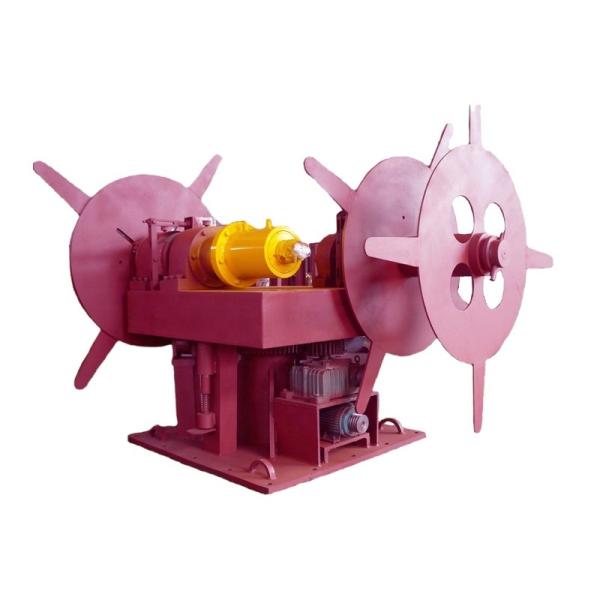

Dual-Head Manual Steel Uncoiler Machine decoiler machine

Uncoiler is the main auxiliary equipment of welded pipe production line, which is used to support the strip steel coil and provide raw materials for the production line,

In order to ensure the continuous production of the whole production line, the braking mode is the linkage control of the whole line to ensure that the strip steel does not loose during operation.

Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate

Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate

Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate

Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate

1. The steel coil OD: φ1200-φ1600mm

2. The steel coil ID: φ380-φ450mm

3. The steel strip thickness: ≤4.0mm

4. The steel strip width: ≤420mm

5. The max. weight of steel coil: ≤2T

The model and basic parameters:

No.

Product Name

Model

Steel Strip Widthmm

Steel Strip Thicknessmm

1

Double-headed Uncoiler

YJMU2U32

≤100

≤4

YJMU2U60

≤200

≤4

2

Single-headed Simple Uncoiler

YJSU400

≤420

≤3

YJSU550

≤550

≤3

YJSU750

≤750

≤3

3

Single-headed Manual Uncoiler

YJMU1U

≤250

≤3

4

Hydraulic Uncoiler

 YJHD2U

≤1050

≤10

YJHD1U

≤1050

≤10

Remark

We can design according to the customer's demand, please feel free to contact us if you have any questions!

Dual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To OperateDual Head Steel Coil Uncoiler 1200-1600mm Manual Easy To Operate
