Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Seaworthy packing or bare packing or as your requirements
Supply Ability :
50 Sets per Year
Price :
$2500-$10000/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Type :
Manual/Automatic
Color :
as customer's request
After-sales Service Provided :
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Port :
Shanghai
Description

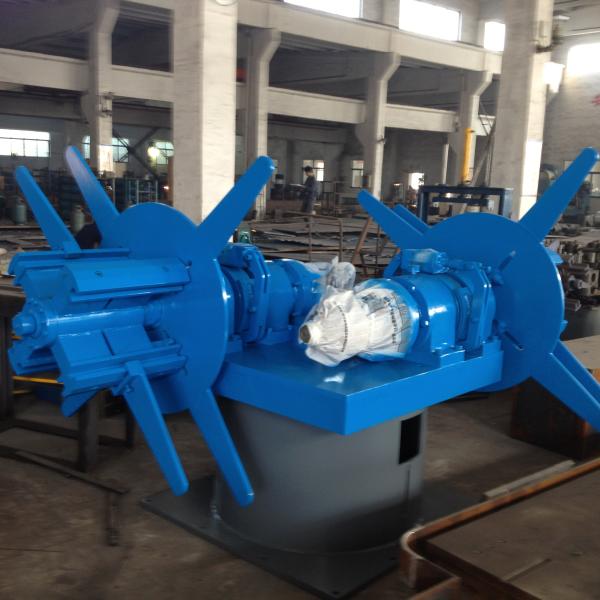

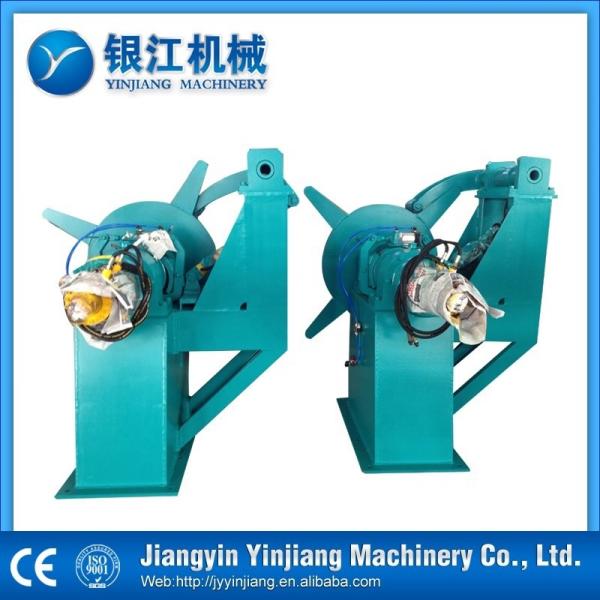

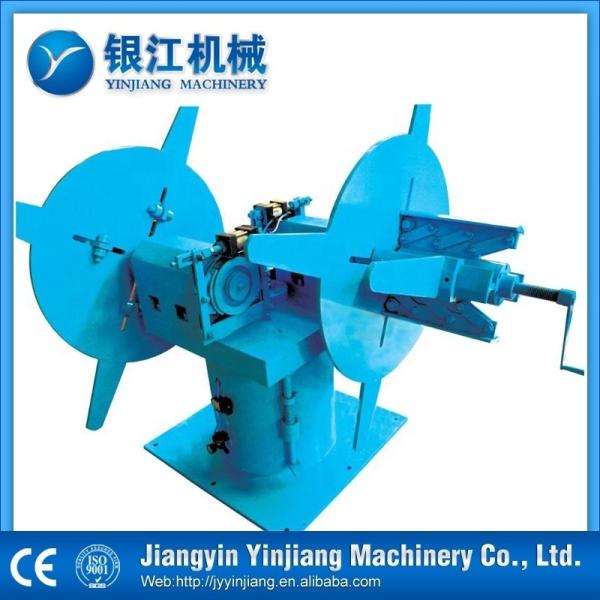

Double-Head Hydraulic Steel Coil Uncoiler Decoiler for Metal Sheet Manual Automatic with Manufacture Price

Product Description

Uncoiler is one of the essential and important equipment in welded pipe production line. One of its functions is to support the coil by tightening the inner hole of the coil; The other is to feed the steel strip head into the leveler through rotation with the cooperation of the straightener. Therefore, the performance of uncoiler is very important to the whole production line. In many years of design practice, the structure of the uncoiler has been continuously optimized and improved, so that the performance of the uncoiler has been improved. The uncoiler spindle has two functions: one is to drive the steel coil to rotate; The other is the tension support of steel coil.

Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler Double Head Automatic Decoiler For Metal Sheet Manual Steel DecoilerDouble Head Automatic Decoiler For Metal Sheet Manual Steel DecoilerDouble Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler

Specifications

Double Head Automatic Decoiler For Metal Sheet Manual Steel Decoiler

NO. Product Name Model Steel Strip Width(mm) Steel Strip Thickness(mm)
1 Single-Head manual uncoiler ≤250 ≤3
2 Double-Head manual uncoiler YJ32 ≤100 ≤4
YJ60 ≤200 ≤4
3 Single-head simple uncoiler YJ400 ≤420 ≤3
YJ550 ≤550 ≤3
YJ750 ≤750 ≤3
4 Hydraulic uncoiler double-head ≤1050 ≤10
single-head ≤1050 ≤10
