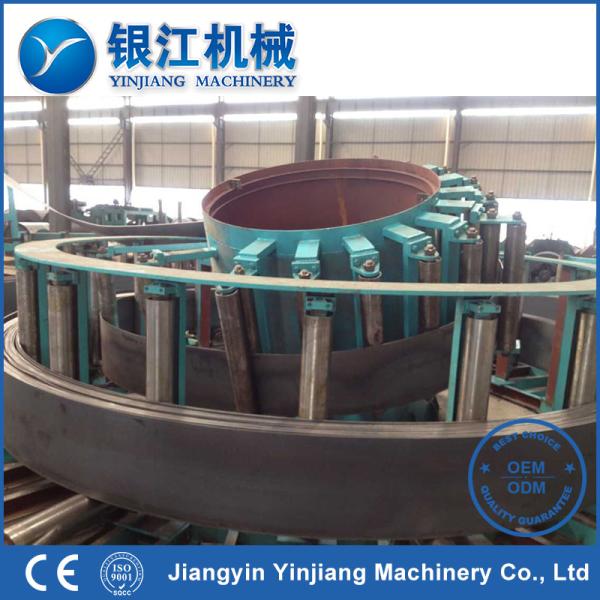

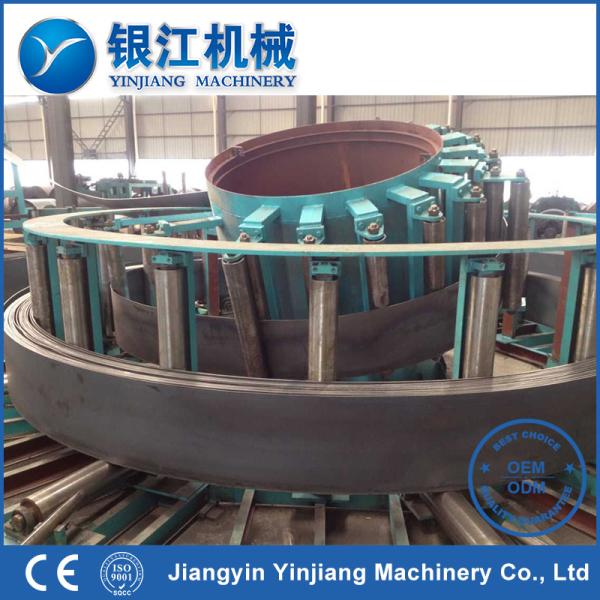

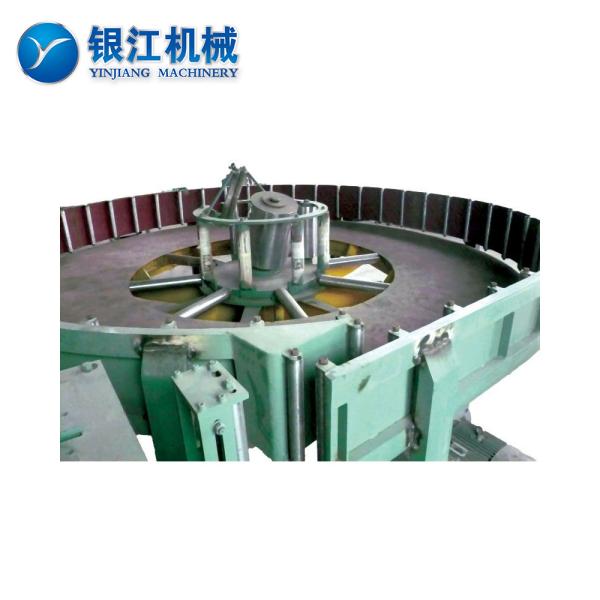

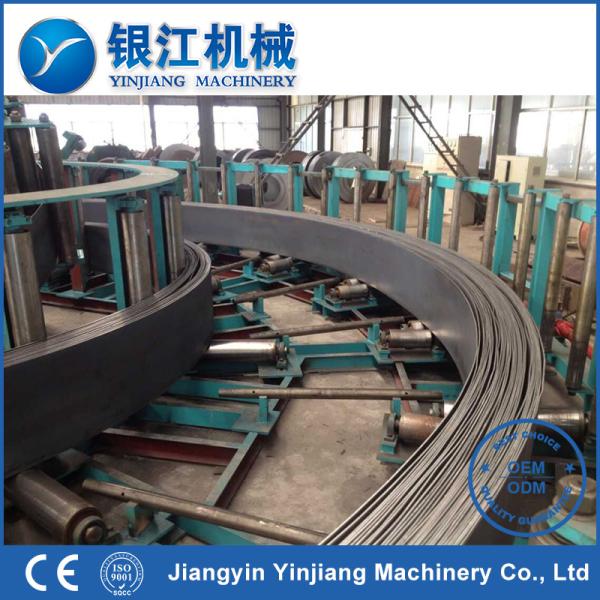

5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Model Number :
YJ series
Certification :
CE ISO
Packaging Details :
Bare packing,or according to customer's request...
Supply Ability :
50 Sets per Year
Price :
$10000.00 - $120,000.00/set
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Condition :
New
Dimension(L*W*H) :
Customized
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Factory history :
19 Years
Color :
customized
Port :
SHANGHAI
Description

5.5M Horizontal Spiral Accumulator for Steel Pipe Making Machine

Product Description

5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine

Strip Accumulator is the main auxiliary equipment of high-frequency welded pipe production line and cold rolling production line. It can store a certain amount of strip steel, provide the production line with the time for the shear butt welding of the tail of the previous coil of strip steel and the head of the next coil of strip steel, and ensure the continuous and smooth progress of the production line.

It is composed of power part, inner ring part, neutral roll part, horizontal roll part, outer ring stop roll part, feeding stop roll frame and other parts. The transmission part is composed of motor, reducer and universal coupling.Every model in the range is designed for easy installation and requires little maintenance. They are built with maximum attention to noise control and safety and offer an efficient way of maintaining mill feed and improving productivity.

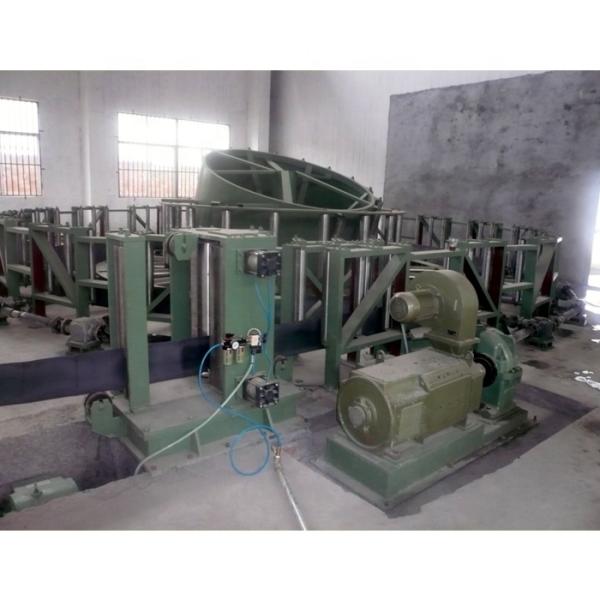

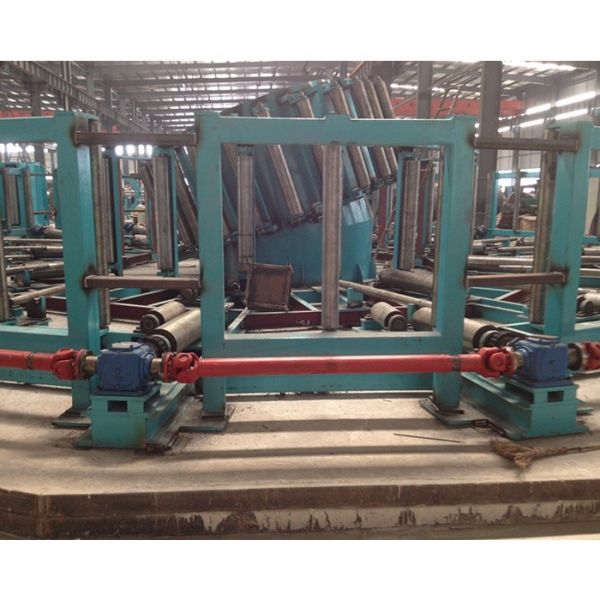

5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine

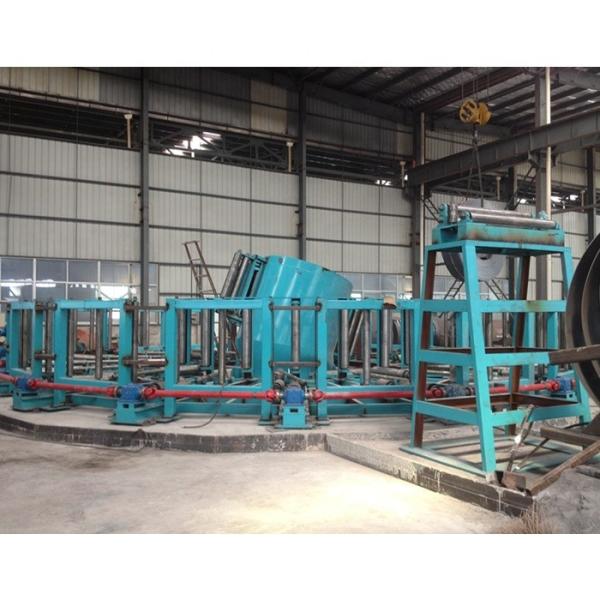

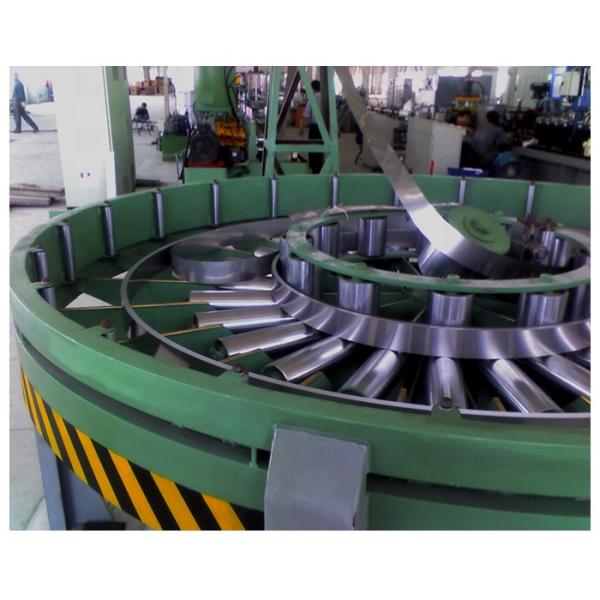

5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine

Specifications

5.5m Horizontal Accumulator Spiral For Steel Pipe Making Machine

No. Model Steel Strip Width Steel Strip Thickness Feeding Speed(m/min) Length(m) Motor(Kw)
1 φ2.5M 60~180mm 0.5~2.0mm 160 15 7.5
2 φ3.5M 60~230mm 0.8~2.5mm 160 15 7.5
3 φ4.0M 60~350mm 0.8~3.0mm 160 18 11
4 φ4.2M 80~400mm 0.8~3.5mm 160 18 15
5 φ4.5M 100~400mm 0.8~4.0mm 160 18 18.5
6 φ4.8M 100~450mm 1.0~4.5mm 160 18 18.5
7 φ5.0M 120~500mm 1.0~5.0mm 160 23 22
8 φ5.5M 150~600mm 1.0~5.5mm 160 23 30
9 φ6.0M 180~700mm 1.2~6.0mm 160 23 30
10 φ8.0M 200~800mm 1.5~8.0mm 120 43 55
11 φ10M 300~800mm 2.0~10.0mm 120 43 75
12 φ12M 500~900mm 5.0~12.0mm 100 48 110
13 φ14M 500~900mm 5.0~14.0mm 100 48 132
14 φ16M 500~1000mm 6.0~16.0mm 100 55 160
Remarks We can design according to the customer's demand, please feel free to contact us if you have any questions!
