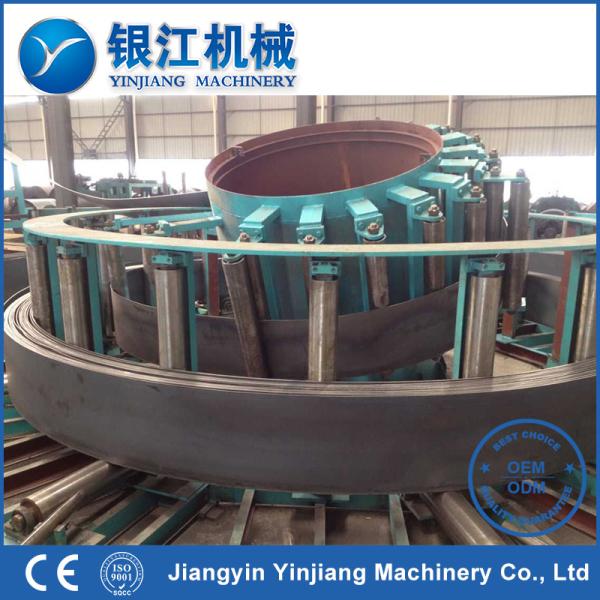

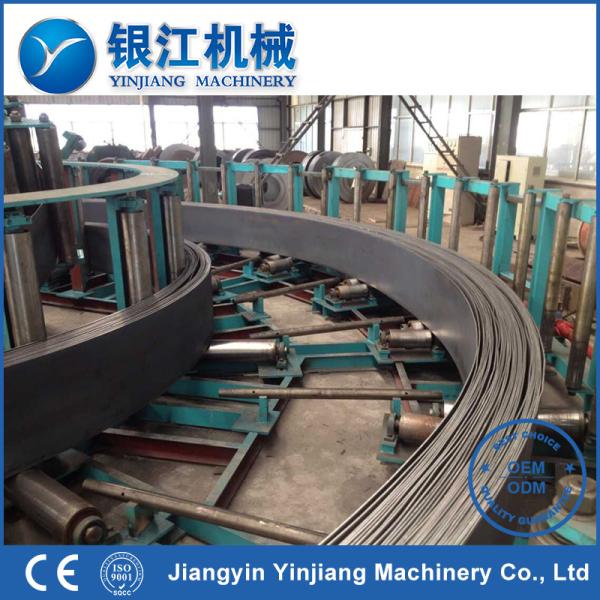

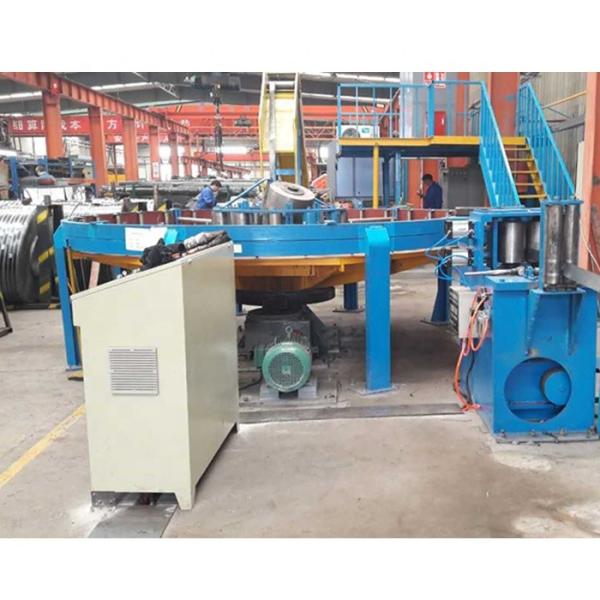

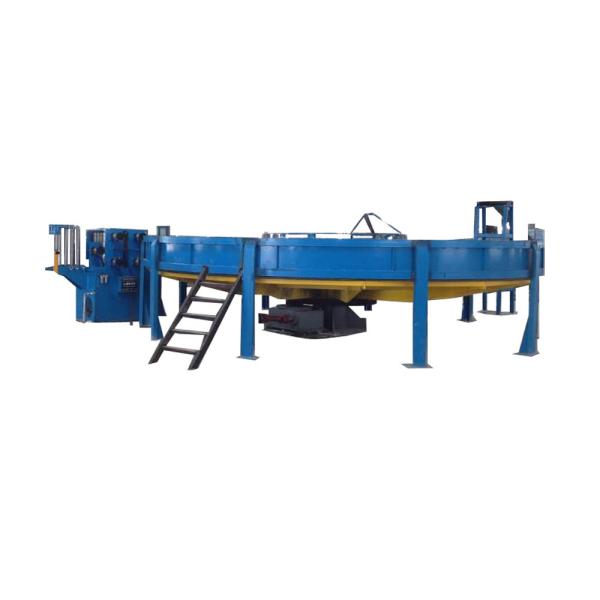

5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line
Specifications
Brand Name :
YJ
Model Number :
YJHT-4M
Certification :
ISO9001 CE
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
$6500-$10000.00/set
Payment Terms :
T/T, Western Union
Supply Ability :
500 Sets per Year
Delivery Time :
60 days
Packaging Details :
Seaworthy packing
Function :
to store steel strip
Color :
customized
applicable strip width :
60-220mm
applicable strip thickness :
0.4-2.5mm
Description
The Accumulator is the main auxiliary equipment on the production line of high frequency welded pipe line,cold rolling,cold forming,acid(water) washing etc.It can store certain amount of steel strip and provide cutting butt welding time of the tail of the previous coil and the next coil of the production line.Ensure the continuous and smooth progress of the production line.

螺旋活套

Accumulator

活套直径

(米Meter)

Accumulator

Diameter

型号

Model

适用带宽(mm)

Applicable Bandwidth

适用带厚(mm)

Applicable Strip Thickness

盘式活套

Horizontal Accumulator

 Φ 2M YJHT-2M 20-80 0.4-1.5
Φ 2.5M YJHT-2.5M 60-180 0.4-2.0
Φ 3M YJHT-3M 60-220 0.4-2.5
Φ 3.5M YJHT-3.5M 60-240 0.6-3.0
Φ 4M YJHT-4M 60-350 0.8-3.0
Φ 4.2M YJHT-4.2M 80-400 1.0-3.5
Φ 4.5M YJHT-4.5M 100-450 1.0-4.0
Φ 4.8M YJHT-4.8M 100-450 1.0-4.5
Φ 5M YJHT-5M 120-550 1.0-4.5
Φ 5.5M YJHT-5.5M 150-600 1.2-5.0
Φ 6M YJHT-6M 180-650 1.5-5.5
Φ 6.5M YJHT-6.5M 180-700 1.5-6.0

落地式活套

Floor Type Accumulator

 Φ 4M YJLD-4M 60-350 0.5-3.0
Φ 5M YJLD-5M 120-550 1.0-4.5
Φ 6M YJLD-6M 180-650 1.5-5.5
Φ 7M YJLD-7M 200-800 2.0-7.0
Φ 8M YJLD-8M 250-800 2.5-8.0
Φ 9M YJLD-9M 300-1050 3.0-9.0
Φ 10M YJLD-10M 300-1250 3.0-10.0
Φ 11M YJLD-11M 300-1400 4.0-12.0
Φ 12M YJLD-12M 300-1400 4.0-13.0
Φ 13M YJLD-13M 400-1400 6.0-14.0
Φ 14M YJLD-14M 400-1400 6.0-15.0
Φ 15M YJLD-15M 500-1600 6.0-16.0
Φ 16M YJLD-16M 500-1600 6.0-17.0
Φ 17M YJLD-17M 500-1800 6.0-18.0
Φ 18M YJLD-18M 500-2200 6.0-20.0
Φ 20M YJLD-20M 600-2400 8.0-22.0
5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line5M Hydraulic Loop Strip Accumulator Horizontal Spiral Accumulator for Pipe Mill Line

FAQ
1. who are we?
We are based in Jiangsu, China, start from 2000,sell to Domestic Market(50.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tube Mill,Slitting Machine,Cut to Length Machine,Cold Forming Machine,Metal Baler

4. why should you buy from us not from other suppliers?
Our Company has been established for 25 years and is the first manufacturer to research and develop Strip Accumulator. We have 9000 square workshops, professional after-sales team and technical department, and we provide a lot of Machine products.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
