Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Bare packing,or according to customer's request
Supply Ability :
50 Sets per Month
Price :
$6000-$20,000.00 sets
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Machine Type :
Accumulator (material storage)
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty :
1 Year
Condition :
New
Applicable Industries :
Manufacturing Plant
Color :
Customer's Requirement
Weight :
depends on machine type
Thickness :
0.5-16mm
Width :
60-1000mm
After-sales Service Provided 1 :
Field installation, commissioning and training
Port :
Shanghai
Description

Best Quality Horizontal Steel Strip Spiral Accumulator Machine for Tube Mill in Making Pipe Line

Product Description

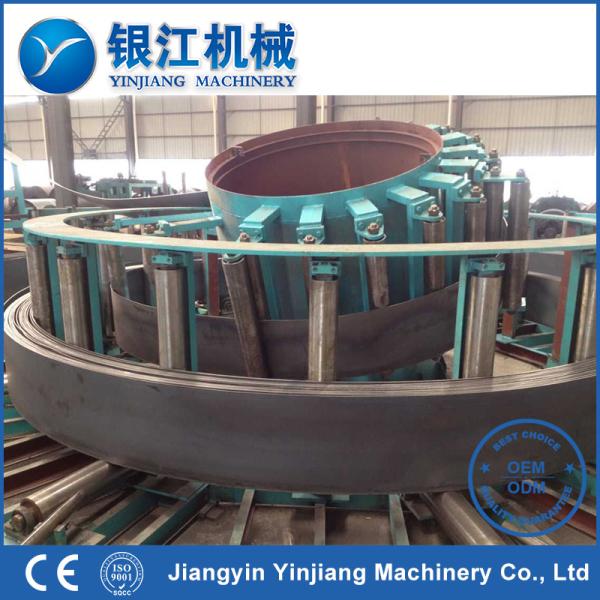

Strip Accumulator is the main auxiliary equipment of high-frequency welded pipe production line and cold rolling production line. It can store a certain amount of strip steel, provide the production line with the time for the shear butt welding of the tail of the previous coil of strip steel and the head of the next coil of strip steel, and ensure the continuous and smooth progress of the production line.

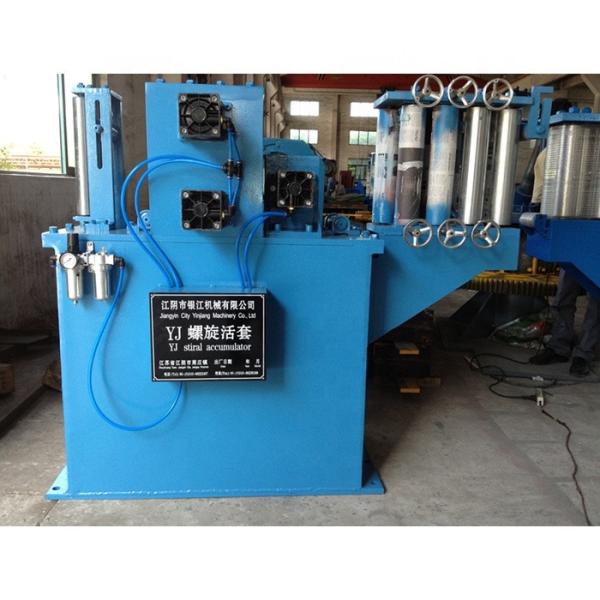

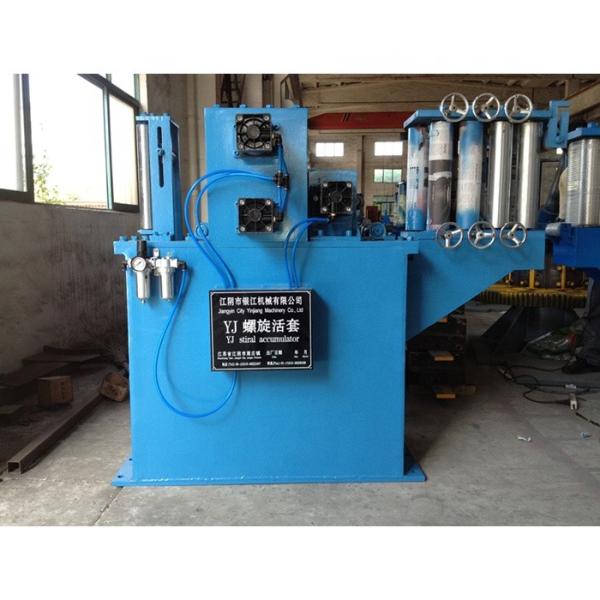

It is composed of power part, inner ring part, neutral roll part, horizontal roll part, outer ring stop roll part, feeding stop roll frame and other parts. The transmission part is composed of motor, reducer and universal coupling.Every model in the range is designed for easy installation and requires little maintenance. They are built with maximum attention to noise control and safety and offer an efficient way of maintaining mill feed and improving productivity.

Carbon Steel Coil Horizontal Accumulator For Tube Mill In Making Pipe Line Carbon Steel Coil Horizontal Accumulator For Tube Mill In Making Pipe LineCarbon Steel Coil Horizontal Accumulator For Tube Mill In Making Pipe Line

Spiral looper is the main auxiliary equipment in high-frequency welded pipe production line and cold rolling production line. It can store a certain amount of strip steel, and provide butt welding time of the last strip steel strip and subsequent strip steel to ensure the production line goes on smoothly

Specifications

Carbon Steel Coil Horizontal Accumulator For Tube Mill In Making Pipe Line

No. Model Steel Strip Width Steel Strip Thickness Feeding Speed(m/min) Length(m) Motor(Kw)
1 φ2.5M 60~180mm 0.5~2.0mm 160 15 7.5
2 φ3.5M 60~230mm 0.8~2.5mm 160 15 7.5
3 φ4.0M 60~350mm 0.8~3.0mm 160 18 11
4 φ4.2M 80~400mm 0.8~3.5mm 160 18 15
5 φ4.5M 100~400mm 0.8~4.0mm 160 18 18.5
6 φ4.8M 100~450mm 1.0~4.5mm 160 18 18.5
7 φ5.0M 120~500mm 1.0~5.0mm 160 23 22
8 φ5.5M 150~600mm 1.0~5.5mm 160 23 30
9 φ6.0M 180~700mm 1.2~6.0mm 160 23 30
10 φ8.0M 200~800mm 1.5~8.0mm 120 43 55
11 φ10M 300~800mm 2.0~10.0mm 120 43 75
12 φ12M 500~900mm 5.0~12.0mm 100 48 110
13 φ14M 500~900mm 5.0~14.0mm 100 48 132
14 φ16M 500~1000mm 6.0~16.0mm 100 55 160
Remarks We can design according to the customer's demand, please feel free to contact us if you have any questions!
