Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Bare packing,or according to customer's request
Supply Ability :
50 Sets per Year
Price :
$6500-$100,000.00/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Condition :
New
Type :
Pipe Welding Machine
Production Capacity :
0-120m/min
Warranty :
ONE YEAR
Color :
Client's Request
Function :
store steel coil for forming
Port :
SHANGHAI
Description

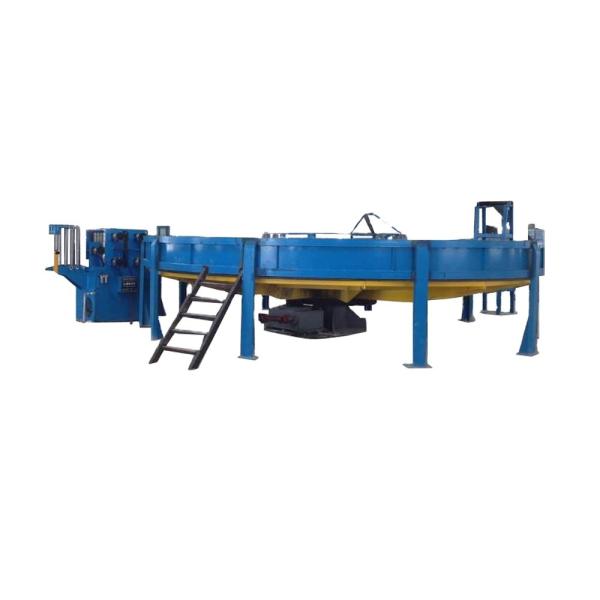

11M Horizontal steel strip Spiral Accumulator for tube mill

Strip Accumulator is the main auxiliary equipment of high-frequency welded pipe production line and cold rolling production line. It can store a certain amount of strip steel, provide the production line with the time for the shear butt welding of the tail of the previous coil of strip steel and the head of the next coil of strip steel, and ensure the continuous and smooth progress of the production line.

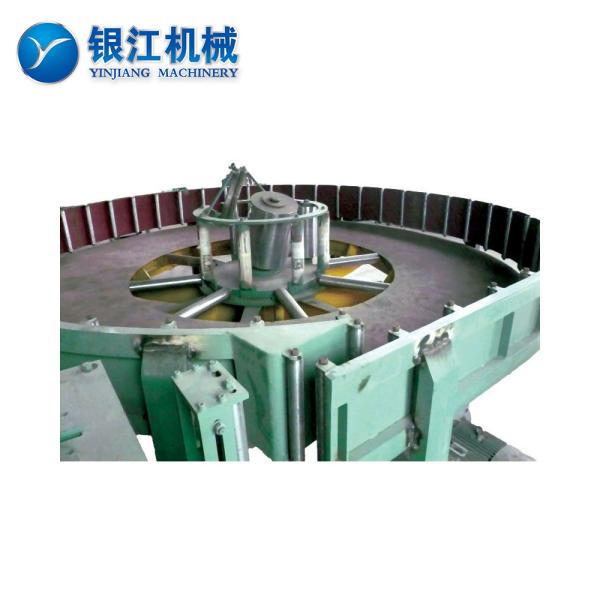

It is composed of power part, inner ring part, neutral roll part, horizontal roll part, outer ring stop roll part, feeding stop roll frame and other parts. The transmission part is composed of motor, reducer and universal coupling.Every model in the range is designed for easy installation and requires little maintenance. They are built with maximum attention to noise control and safety and offer an efficient way of maintaining mill feed and improving productivity.

11m Spiral Coil Accumulator Tube For Pipe Welding Machine

11m Spiral Coil Accumulator Tube For Pipe Welding Machine11m Spiral Coil Accumulator Tube For Pipe Welding Machine

11m Spiral Coil Accumulator Tube For Pipe Welding Machine

YJ Series Horizontal Sprial Looper-11M

The model and basic parameters:

No.

Model

Steel Strip Width

Steel Strip Thickness

Feeding Speed(m/min)

Length(m)

Motor(Kw)

1

φ2.5M

60~180mm

0.5~2.0mm

160

15

7.5

2

φ3.5M

60~230mm

0.8~2.5mm

160

15

7.5

3

φ4.0M

60~350mm

0.8~3.0mm

160

18

11

4

φ4.2M

80~400mm

0.8~3.5mm

160

18

15

5

φ4.5M

100~400mm

0.8~4.0mm

160

18

18.5

6

φ4.8M

100~450mm

1.0~4.5mm

160

18

18.5

7

φ5.0M

120~500mm

1.0~5.0mm

160

23

22

8

φ5.5M

150~600mm

1.0~5.5mm

160

23

30

9

φ6.0M

180~700mm

1.2~6.0mm

160

23

30

10

φ8.0M

200~800mm

1.5~8.0mm

120

43

55

11

φ10M

300~800mm

2.0~10.0mm

120

43

75

12

φ12M

500~900mm

5.0~12.0mm

100

48

110

13

φ14M

500~900mm

5.0~14.0mm

100

48

132

14

φ16M

500~1000mm

6.0~16.0mm

100

55

160

Remarks

We can design according to the customer's demand, please feel free to contact us if you have any questions!
