Specifications
Brand Name :
YJ
Model Number :
YJ273
Certification :
ISO9001 CE
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
$6500-$100,000.00/set
Payment Terms :
T/T, Western Union
Supply Ability :
50 Sets per Year
Delivery Time :
120 days
Packaging Details :
Seaworthy packing
Pipe material :
Carbon Steel,hot/cold roll steel, galvanized steel
Application :
Energy Supply Pipe
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field maintenance and repair service,Field installation
Voltage :
220/380/415/420/440V
Weight :
10 Tons
Dimension(l*w*h) :
According to the machine
Warranty :
1 Year
Thickness :
3.0-9.0mm
Color :
Any color
Raw material :
carbon steel,Galvanized steel
Pipe shape :
Round,Rectangle,Square,Circular and Square Pipe,L
Pipe diameter :
114-254mm
Description
Product Description

High Frequency Welded ERW Pipe Mill YJ254 Steel Pipe Making Machine

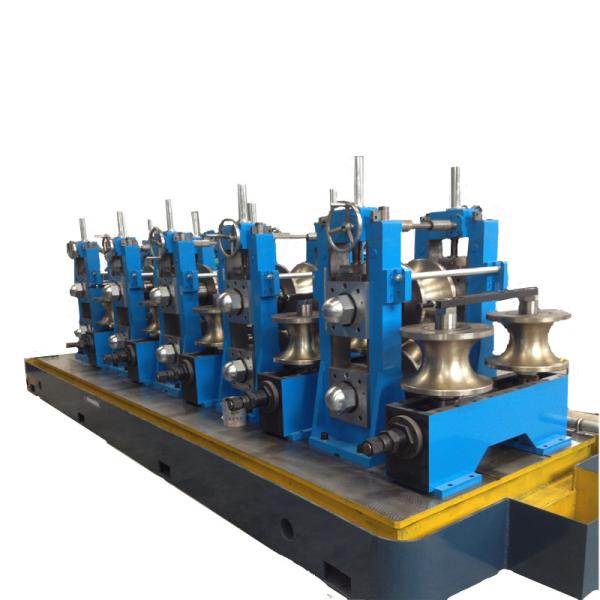

Forming and Sizing Machine is the main equipment on the welded pipe production line.

It can continuously roll long strip steel of certain specifications into shape and weld it into pipe or tubes. It can produce not only round pipes, but also special-shaped tubes and square tubes.

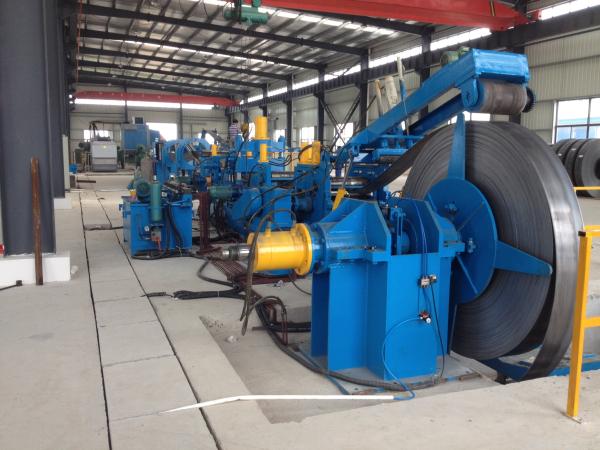

This machine adopts roller It can produce steel pipes of certain specifications, that is, feed the steel strips of certain specifications into the machine, roll the steel strips into tube blanks through forming rollers, and undergo high-frequency induction heating, cooling, sizing and rough straightening to form the required steel pipes.

There are more models and customized models, please consult for deta

regular standard model

reccommended production diamter

applicable thickness

production speed

YJ20

Φ10-Φ25.4mm

0.4-1.5mm

0-100m/min

8x8-20x20mm

0.4-1.0mm

10x6-25x15mm

0.4-1.0mm

YJ32

Φ12.7-Φ38.1mm

0.4-2.0mm

0-120m/min

10x10-30x30mm

0.4-1.5mm

12x8-40x20mm

0.4-1.5mm

YJ50

Φ19.1-Φ63.5mm

0.6-3.0mm

0-100m/min

15x15-50x50mm

0.6-2.5mm

20x10-60x40mm

0.6-2.5mm

YJ76

Φ38.1-Φ89mm

0.8-3.5mm

0-80m/min

30x30-70x70mm

0.8-3.0mm

40x20-80x60mm

0.8-3.0mm

YJ89

Φ50-Φ102mm

1.0-4.0mm

0-70m/min

40x40-80x80mm

1.0-3.5mm

50x30-90x70mm

1.0-3.5mm

YJ102

Φ50-Φ114mm

1.2-4.5mm

0-70m/min

40x40-90x90mm

1.2-4.0mm

50x30-100x80mm

1.2-4.0mm

YJ114

Φ63.5-Φ127mm

1.5-5.0mm

0-60m/min

50x50-100x100mm

1.5-4.2mm

60x40-120x80mm

1.5-4.2mm

YJ127

Φ63.5-Φ140mm

1.5-5.0mm

0-60m/min

50x50-110x110mm

1.5-4.5mm

60x40-130x90mm

1.5-4.5mm

YJ165

Φ76-Φ165mm

1.5-6.0mm

0-50m/min

60x60-130x130mm

1.5-5.0mm

70x50-150x110mm

1.5-5.0mm

YJ219

Φ89-Φ219mm

2.0-8.0mm

0-50m/min

70x70-170x170mm

2.0-7.0mm

80x60-190x150mm

2.0-7.0mm

YJ254

Φ114-Φ254mm

3.0-9.0mm

0-40m/min

90x90-200x200mm

3.0-7.5mm

100x80-250x150mm

3.0-7.5mm

YJ273

Φ140-Φ273mm

4.0-10.0mm

0-30m/min

110x110-215x215mm

4.0-8.5mm

130x90-250x180mm

4.0-8.5mm
