Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
ISO9001 CE
Packaging Details :
Seaworthy packing
Supply Ability :
50 Sets per Year
Price :
USD11000-40000/set
Model Number :
YJ series
MOQ :
1 set
Delivery Time :
60 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor
Condition :
New, New
Type :
Pipe Mill, Pipe Welding Machine
Pipe Material :
Carbon steel, Carbon Steel
Production Capacity :
5 set / month
Voltage :
380V/440V 50HZ
Power :
About 500KW for all line
Weight :
15000 kg
Warranty :
1 Year, One Year
Key Selling Points :
High-accuracy
Color :
Blue
Speed :
30-70m/min according to size and wall thickness
After-sales Service Provided :
Field installation, commissioning and training
Port :
SHANGHAI
Description

carbon steel pipe making machine Gl steel high frequency welded tube mill Pipe Making Machine

Product Description

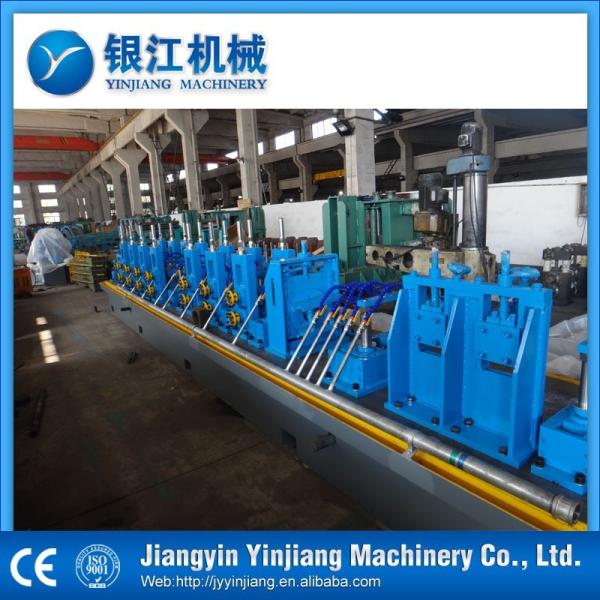

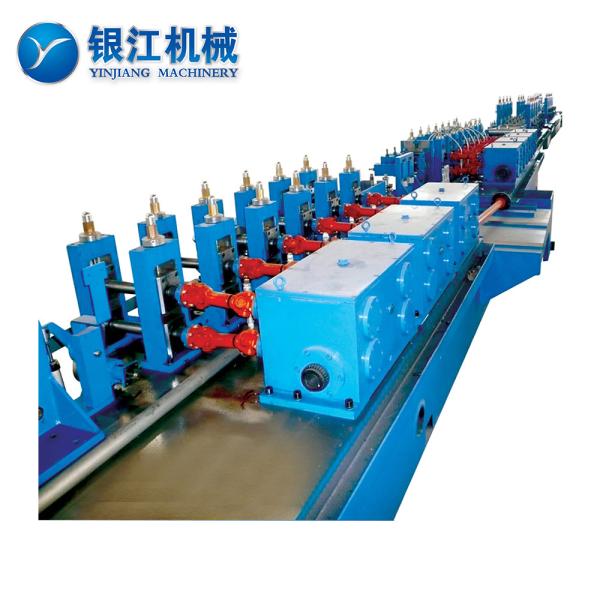

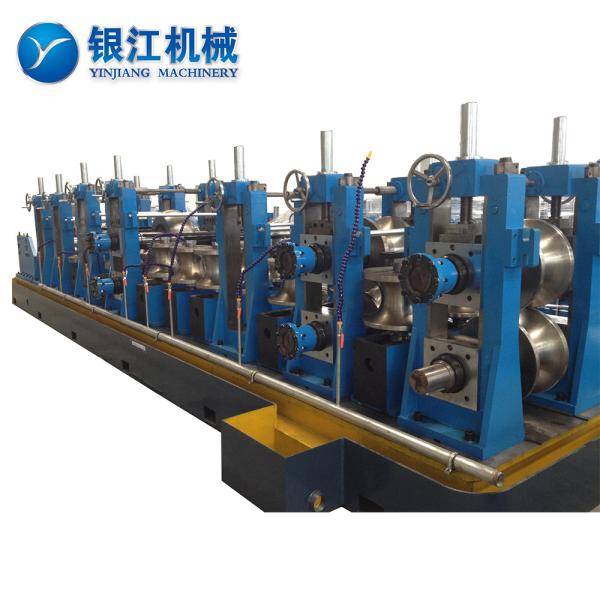

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table


Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

The model and basic parameters

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-165 YJ-219
Diameter(mm) 8-16 10-26 13-38 20-63.5 32-76 40-89 50-102 65-127 89-165 102-219
Thickness(mm) 0.3-1.0 0.4-1.5 0.4-2.0 0.5-3.0 0.6-3.0 0.8-4.0 1.0-4.0 1.5-5.0 1.5-7.0 2.0-10.0
Speed(m/min) 0-100 0-100 0-120 0-100 0-90 0-70 0-70 0-60 0-50 0-40
Host motor power(Kw) 22 37 75 110 132 132/110 132*2 160/132 200*160 220*2
High-frequency equipment(Kw) 100 100 200 200 250 300 300 400 500 600
Equipment composition Uncoiler, leveler, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!
Detailed Images

Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming


Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

Hot Products

Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

Company Information

Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

Packaging & Shipping

Carbon Steel High Frequency Gi Pipe Manufacturing Machine PLC End Forming

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team and factory. Welcome to visit us.

Q:What kind o f payment term you can do?
A:We are flexible about payment terms,please contact us for details.

Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this area for more than 20 years,and especially our company’s YJ series spiral accumulator won a utility model patent certificate issued by intellectual property office (patent no:ZL200820132936.X).Our pipe making machine line directly export to Russia,Vietnam,India,Indonesia,and many countries in Asia.

Contact Us

Our Deputy General Manager: Fred

Email : fred@jyyjjx.com

whatsapp/wechat: +86 13906160128

Address: No.199 ChangHe Street, ZhouZhuang Town, JiangYin area, Wuxi City, JiangSu Province, China.
