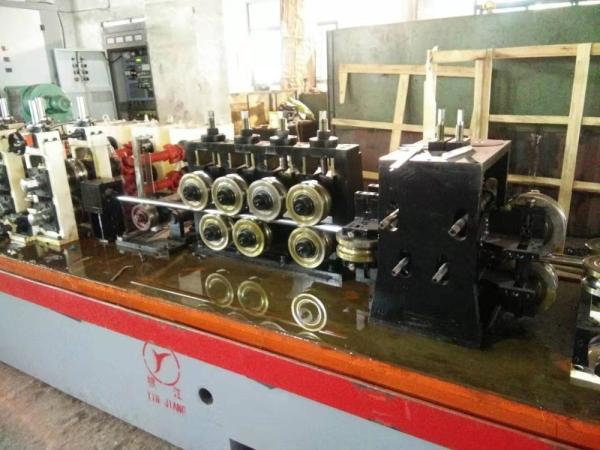

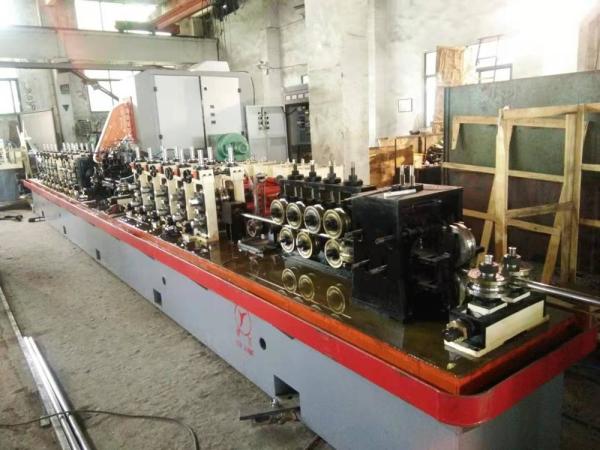

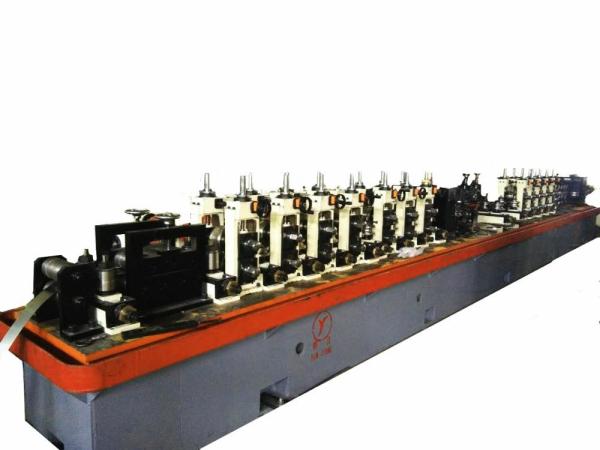

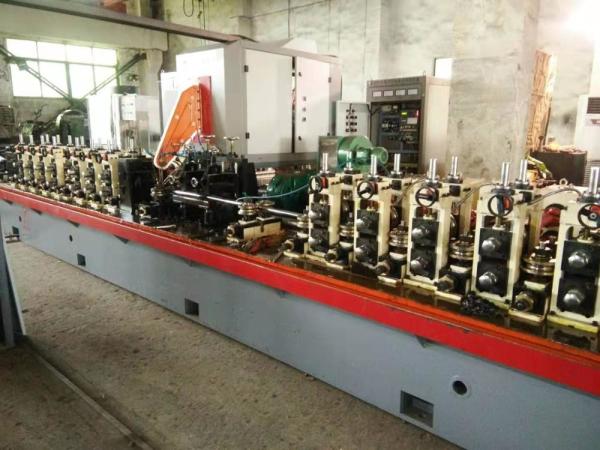

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Certification :
CE ISO9001
Packaging Details :
Seaworthy packing
Supply Ability :
50 Sets per Year
Price :
$6500-$100,000.00/set
Model Number :
YJ series
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
120 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Condition :
New
Type :
Pipe Mill
Pipe Material :
Carbon steel
Application :
Energy Supply Pipe
Production Capacity :
30-100M/min
Voltage :
380v/420v
Power :
220
Dimension(L*W*H) :
depends on machine type
Weight :
l: 2500kgs
Warranty :
1 Year
Key Selling Points :
Long Service Life
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
None
After-sales Service Provided :
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Color :
Customer's Requirement
Pipe diameter :
8-275mm
Material :
CR Carbon Steel
Port :
Shnaghai
Description

Pipe making machine steel pipe tube mill manufacturer

Straight Seam High Frequency Welded Pipe Making Machine

Material: Hot/cold roll steel, galvanized steel, carbon steel

Tube Shape:Round tube, square tube, rectangular tube, special tube

Thickness: 0.4-12mm

Pipe size: round tube Φ8-Φ273mm

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill

The model and basic parameters

Item Model YJ-16 YJ-20 YJ-32 YJ-50 YJ-60 YJ-76 YJ-89 YJ-114 YJ-125 YJ-165
Diameter(mm) 8-16 10-26 14-38 20-63.5 32-70 40-80 50-90 60-120 60-130 80-165
Thickness(mm) 0.3-1.0 0.5-1.5 0.6-1.8 0.8-3.0 1.0-3.0 1.0-3.5 1.5-4.0 2.0-5.0 1.5-5.5 2.0-6.0
Speed(m/min) 80-100 80-100 80-100 70-80 70-80 60-70 50-60 40-60 20-60 20-50
Host motor power(Kw) 22 37 75 132 55*2 132*2 90*2 110*2 220*2 220*2
High-frequency equipment(Kw) 60 60 100 200 250 250 250 300 300 400
Equipment composition Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw,
discharging table,packer, high-frequency device
Remark If you have any question, please contact us freely!
Working Flow

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill

Workshop Show

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill

FAQ

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill

Team & Certificate

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill

Packaging & Shipping

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill

Company Information

30-100M/Min Square Pipe Manufacturing Machine 380v Erw Mill
