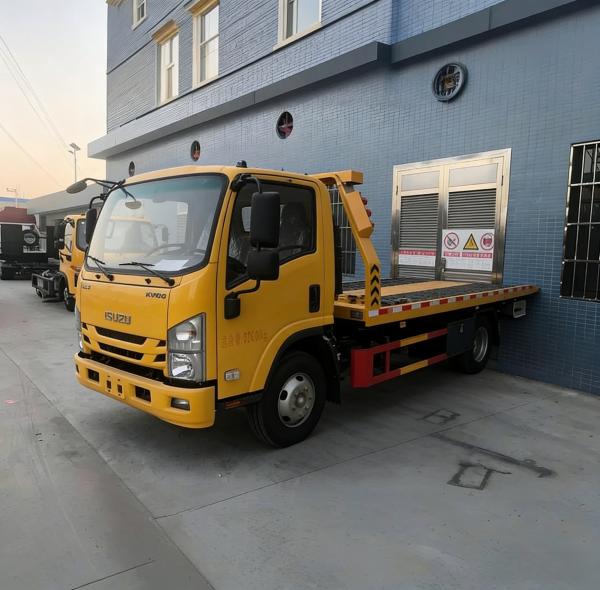

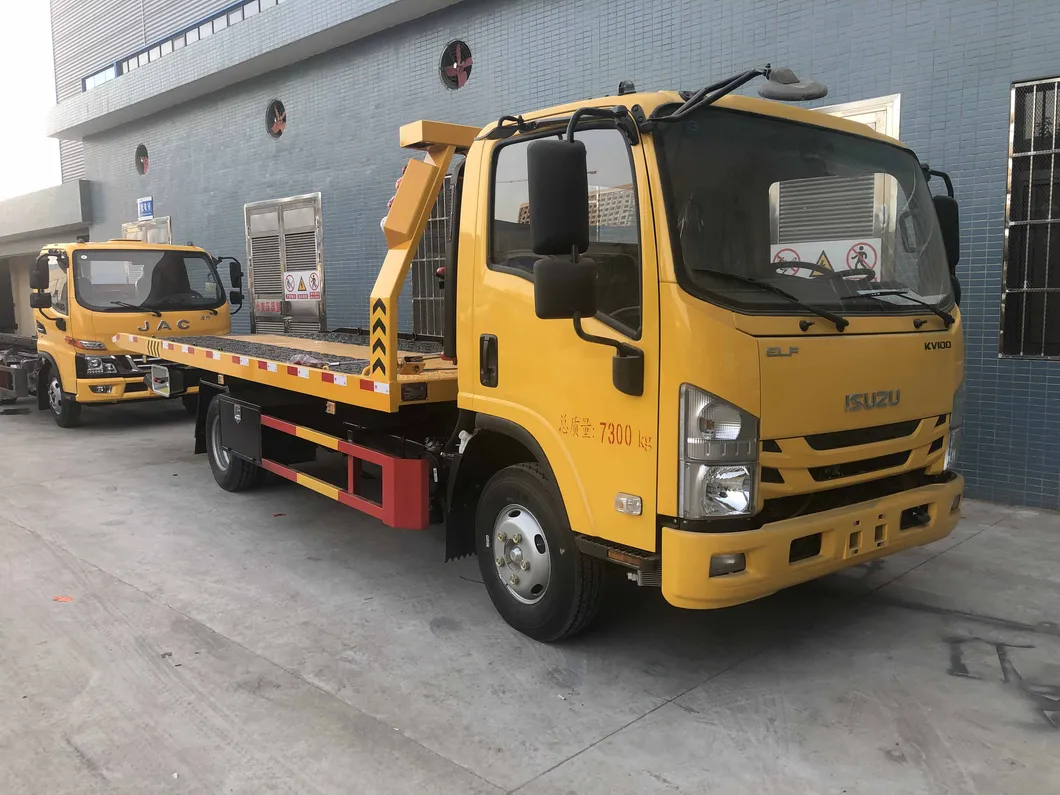

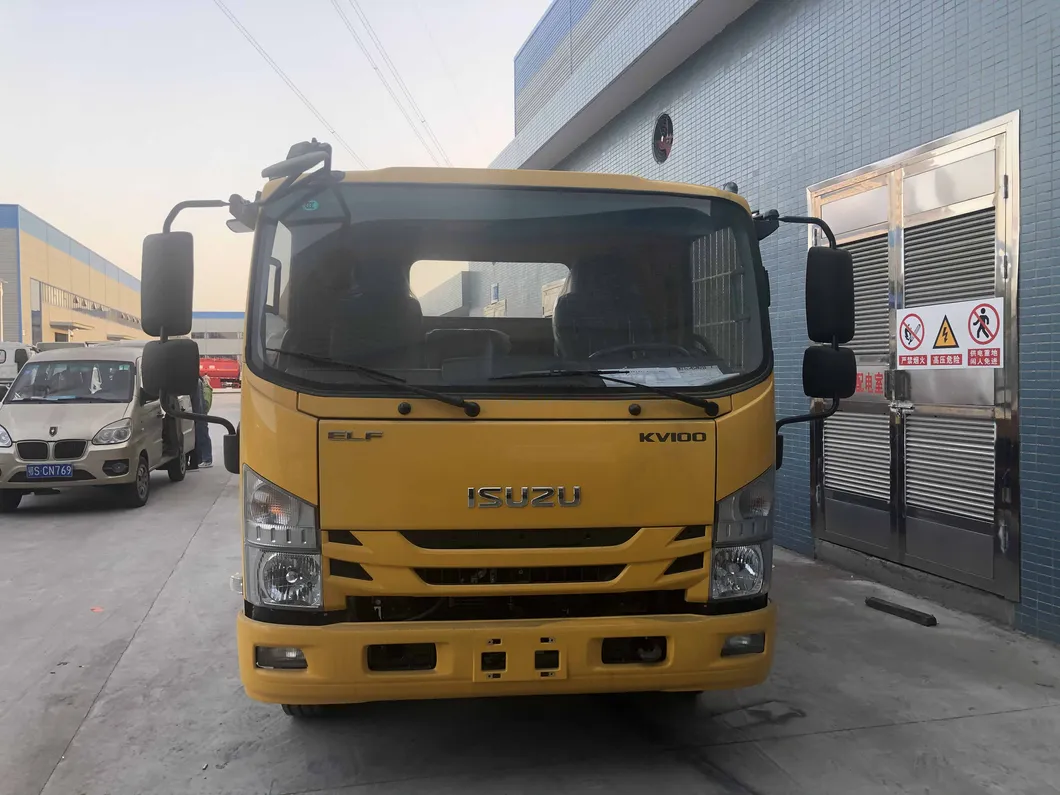

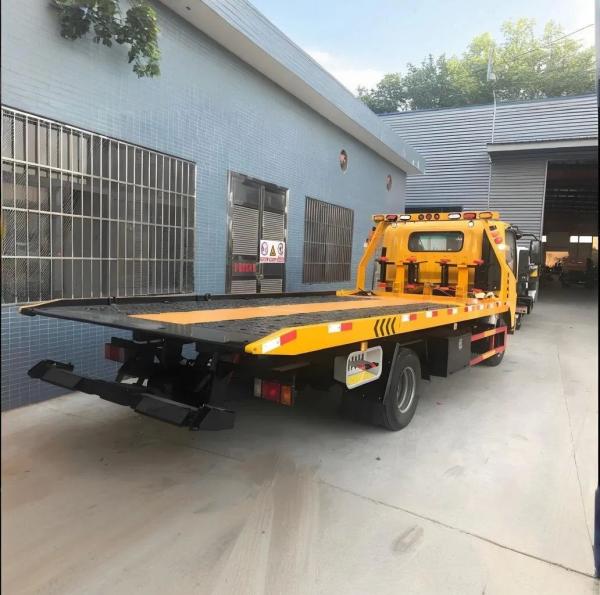

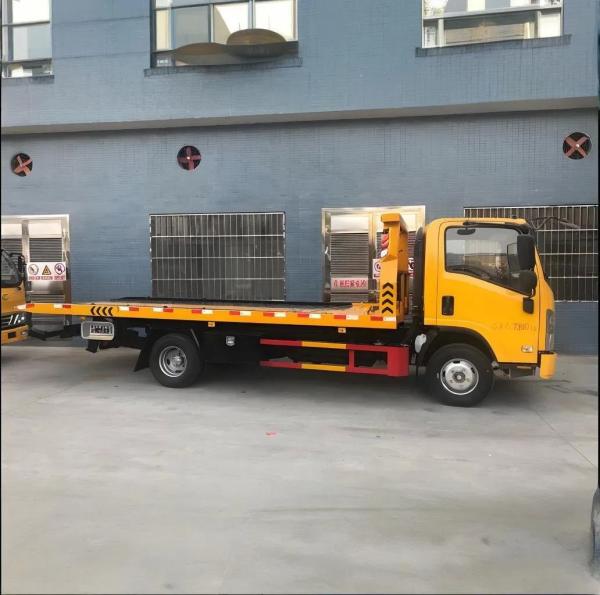

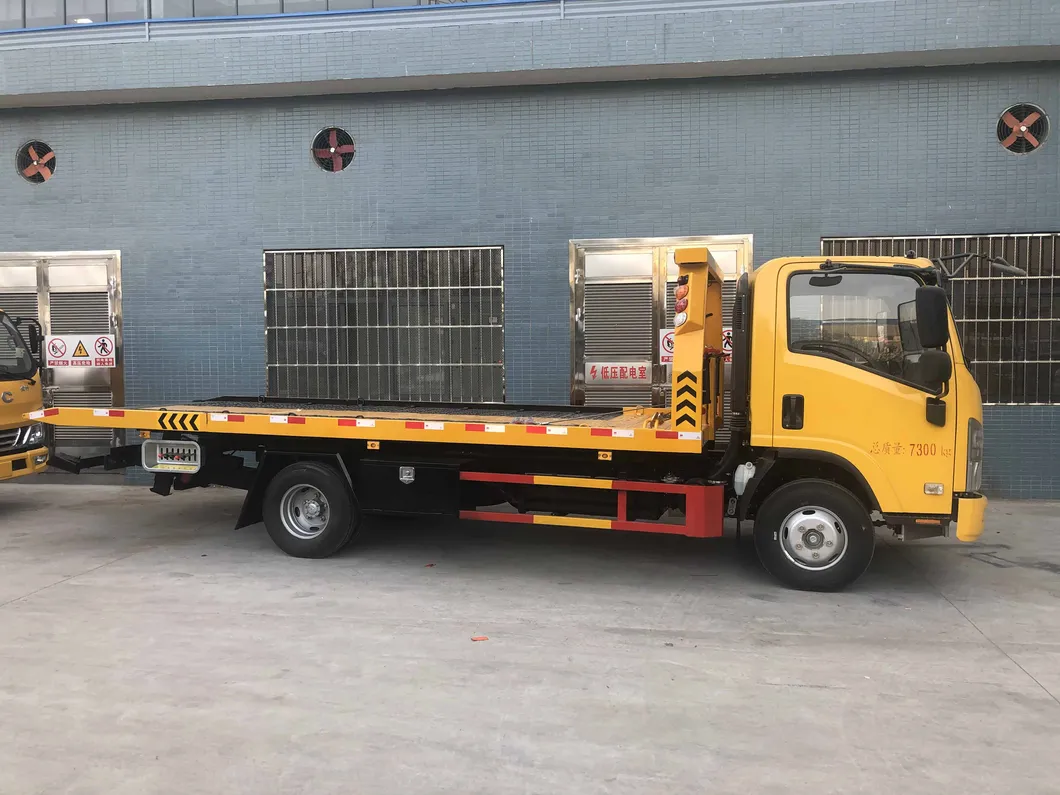

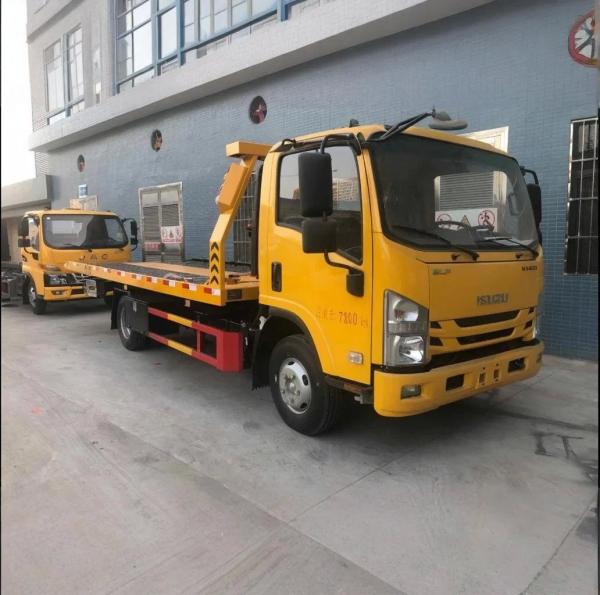

5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
5.6m Platform Road Rescue Truck 4tons 5tons 6tons Recovery Vehicle
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Emission Standard :
Euro 2
Max Lifting Weight :
4tons; 5tons; 6tons
HS Code :
8705909990
Name :
Road Rescue Truck
Winch Rope :
25m, 25meters
Model NO. :
CLW5076BGV
Brand :
Optional
Wrecker Type :
One-Towing-One, One-Towing-Two
Towing Tonnage :
4ton
Transport Package :
Bulk, RO-RO, Container
Trademark :
CLW
MOQ :
1
Price :
15000-35000 per unit
Cabin :
2~3 Personn with A/C
Bearing Capacity :
Medium
Condition :
New
Engine :
130HP
Truck Overall Size :
7280*2350*2400mm
Origin :
Suizhou, China
Production Capacity :
500unit Per Month
Chassis Brand :
Dongfeng, HOWO, Foton, JAC, etc.
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Fuel :
Diesel
Hydraulic Systemht :
Famous International Brand
Wheel Base :
3815mm
Steering :
LHD, Rhd, Left Hand Drive, Right Hand Drive
Specification :
4t, 4tons, 4ton, 4T, 5t, 5tons, 5ton, 5T, 8tons
Transmission Type :
Manual
Description

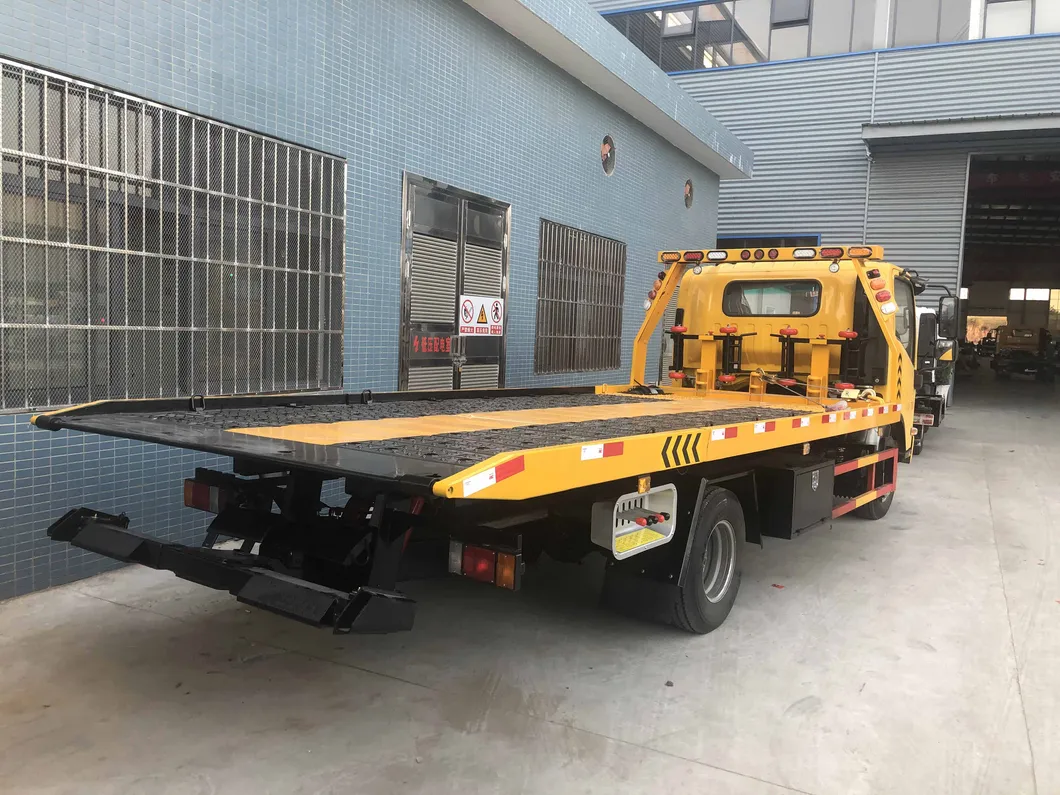

Tow wrecker recovery truck with 5.6m platform road rescue flatbed towing Truck

Product Description

1) 5Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission

3) Spare parts of 5tons wrecker tow truck:

  • Italy brand multi-way valve and balance valve;
  • Gernamy Roxroth technology hydraulic cylinder and joint;
  • International Brand Sealing elements;
  • Strengthed Checked platform.

Product Specification

General Technical Specification
Overall Dimension 7280*2350*2400(mm)
Gross Vehicle Weight 7300 (Kg)
Curb Weight 4280 (Kg)
Chassis Specification
Chassis Brand optional
Drive model 4*2
Cabin Single, Left Hand Drive

Engine

 Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power 96KW/130HP
Emission standard EURO 4
Displacement 2999(ml)
Fuel type Diesel
Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System Oil Brake
Wheel Base 3815(mm)
Front/Rear Axle Loading 3000/4800(Kg)
Approach/Departure Angle 24/12(°)
Tire 7.50R16, 6pcs + 1 spare tire
Max Driving Speed 98(km/h)

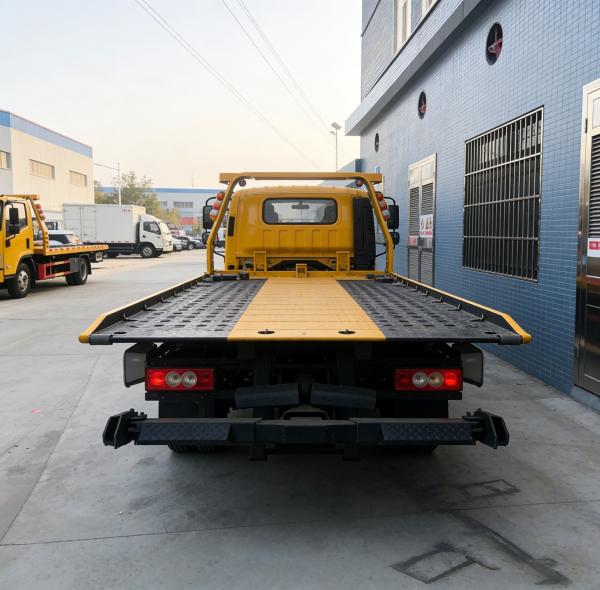

Superstructure Specification

Platform Organ

 Dimension 5600*2350(mm)
Rear manual flip board length 1200(mm)
Material Q235 carbon steel
Max Loading capacity 4000(kg)

Winch

 Quantity 1
Winch rating towing capacity 4000(kg)
Length of steel rope 25(m)
Speed of winch 3.23~8 (m/min)

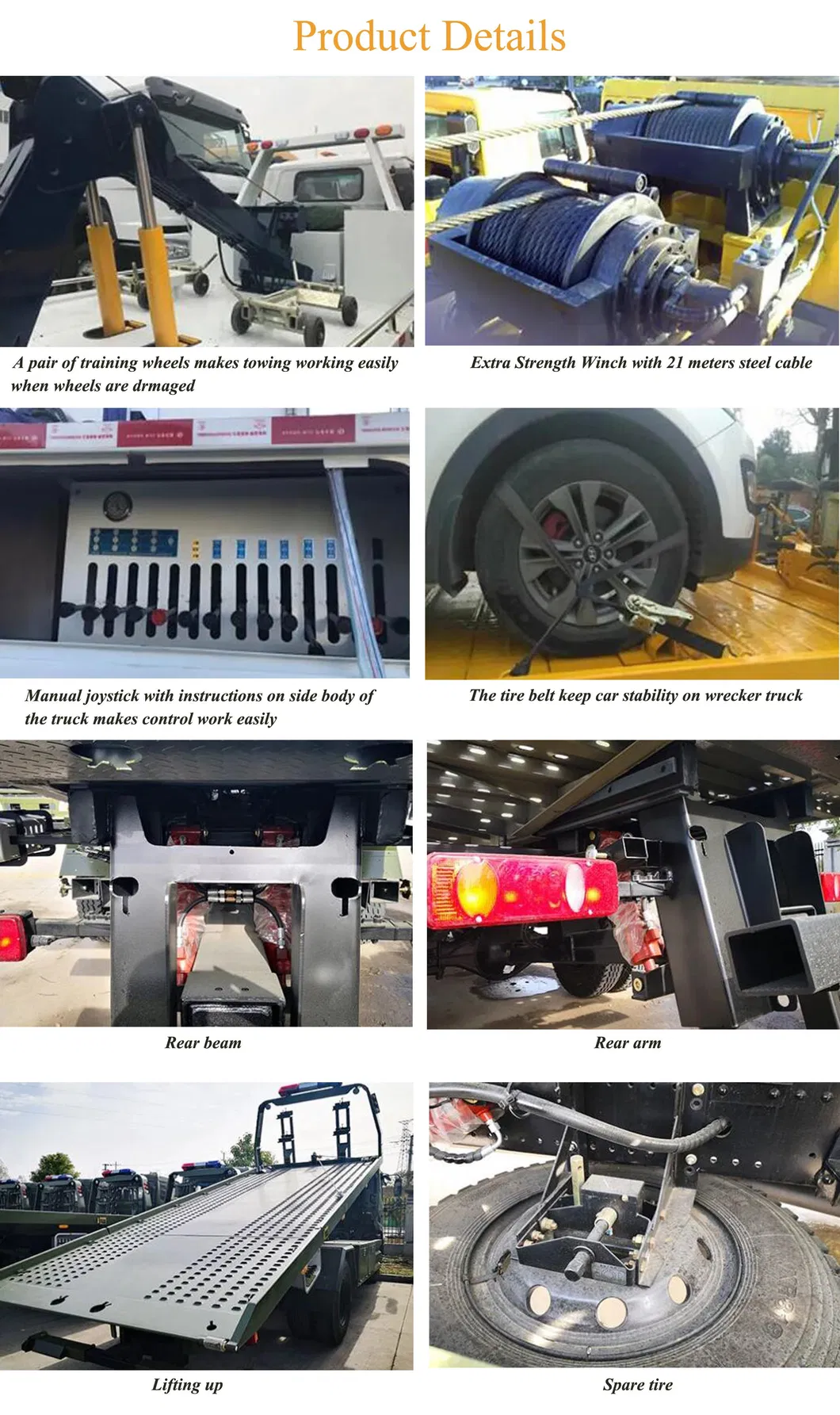

Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.
Options Caution light, air condition,inlet valve.
