Specifications
Hydraulic Tailgate :
1200 mm
Towing Tonnage :
4ton
Winch Rope :
25 Meters
Tire :
7.00r16
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Place of Origin :
CHINA
Brand Name :
CLW
Logo :
as Per Customer's Request
Trademark :
CLW
Wheel Base :
3308 mm
Brand :
Dongfeng
Gearbox :
5 Forward & 1 Reverse
MOQ :
1
Price :
15000-35000 per unit
Winch Rating Pulling Capacity :
4000kg
Flatbed Dimension :
4200*2320mm
Origin :
Suizhou, China
Name :
Wrecker Truck
Transmission Type :
Manual
Model NO. :
CLW5367QTB
Max. Loading Weight :
4000kg
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Condition :
New
Fuel :
Diesel
Delivery Time :
30 Days
Production Capacity :
500unit Per Month
Emission Standard :
Euro 2
HS Code :
8705909990
Bearing Capacity :
Medium
Specification :
6000x2500x3300 mm
Description

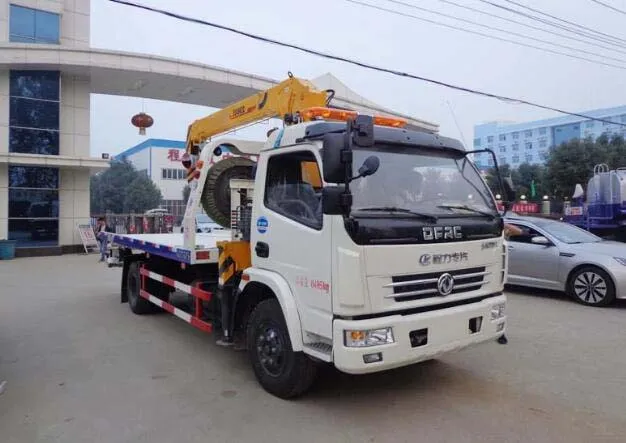

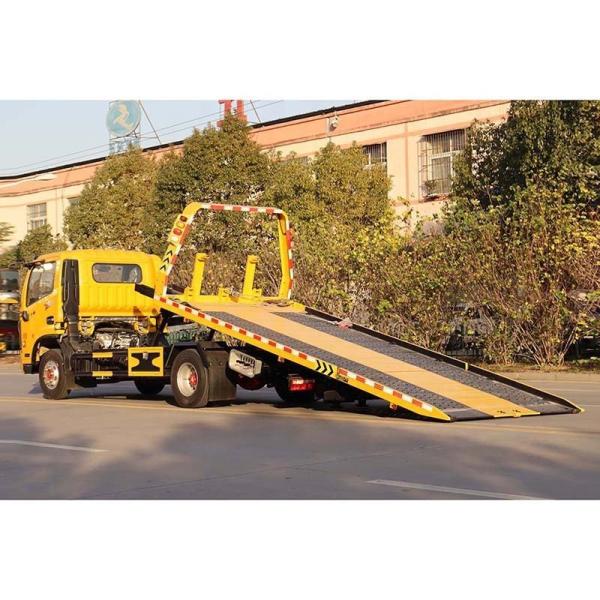

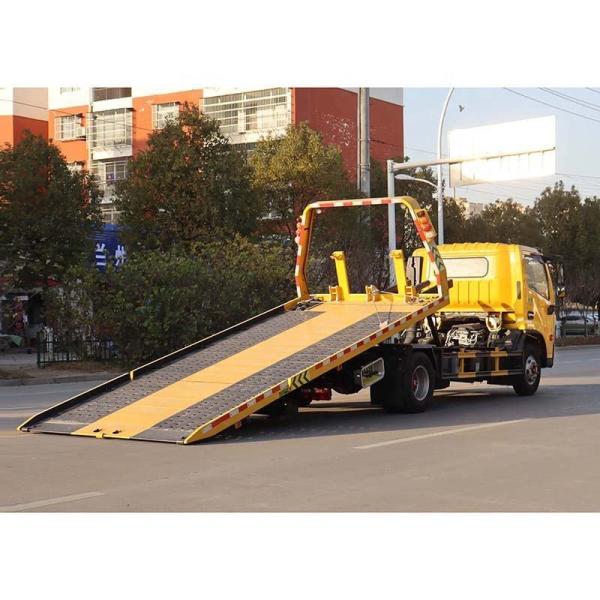

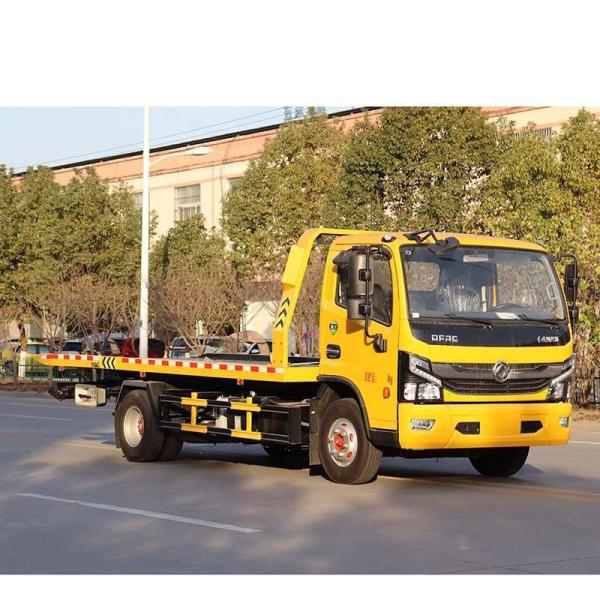

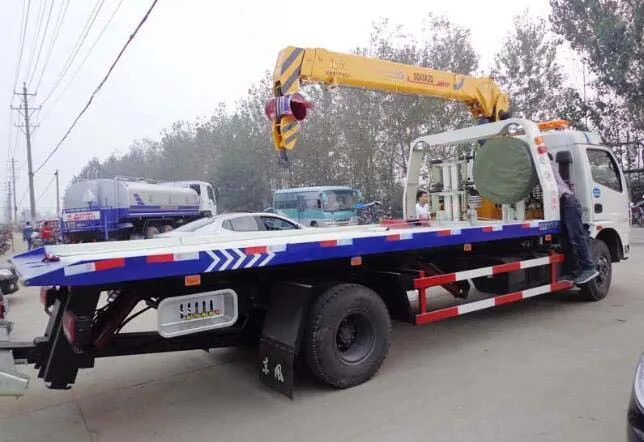

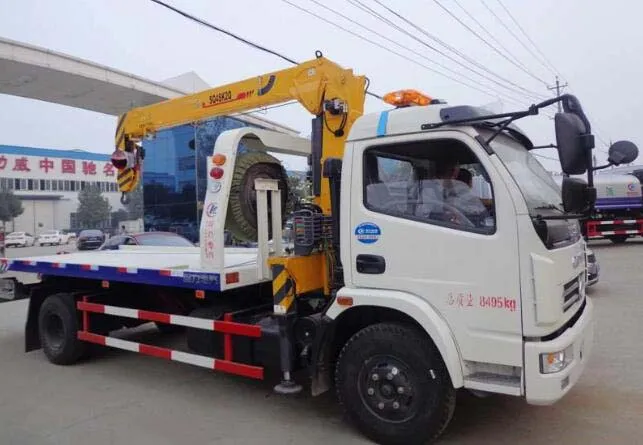

Dongfeng Rollback Tow Truck Mounted Crane Wrecker Flatbed Wheel Lift Car Carrier

Product Description:

  1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
  2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman.
  3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
  4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
  5. The customers can choose to install the crane.
General Technical Parameters
Overall Dimension5995x2300x2250 (mm)
Gross Vehicle Weight4495kg
Curb Weight3800kg
Chassis Specification










Chassis Parameters

Chassis BrandJAC
CabinSingle, Left Hand Driving



Engine

Model4 Cylinders
Power88 KW/120HP
Emission StandardEURO II
Displacement2771ML
Fuel TypeDiesel
Gearbox5 Forward & 1 Reverse Gear
Front and Rear Axle Load3T/6T
Wheel Base3308(mm)
Overhang( Front/Rear)1015/2450(mm)
Angle(Approach/departure)24/9(°)
Brake Systemoil brake
Steering GearPower Assistant
Tire7.00R16, 6 Pieces with 1 Spare Tire
Maximum Speed90 (km/h)
Superstructure



Flatbed

Dimensions4200x2320 (mm)
Max. Loading Weight4000(kg)
Operating Stroke2700 (mm)
Min. Angle of Slope8(°)
Platform Height from the Ground1070(mm)


Winch

Quantity1pc
Winch Rating Pulling Capacity4000 (kg)
Length of Steel Cable25 (m)



Hoisting Organ

Rating Under-Pulling Capacity6000 (kg)
Rating Under-Hoisting Capacity2000 (kg)
Fully Extended Max Under-Hoisting Capacity1600 (kg)
Max Under-Hoist Useful Length1640 (mm)


Remarks

1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
