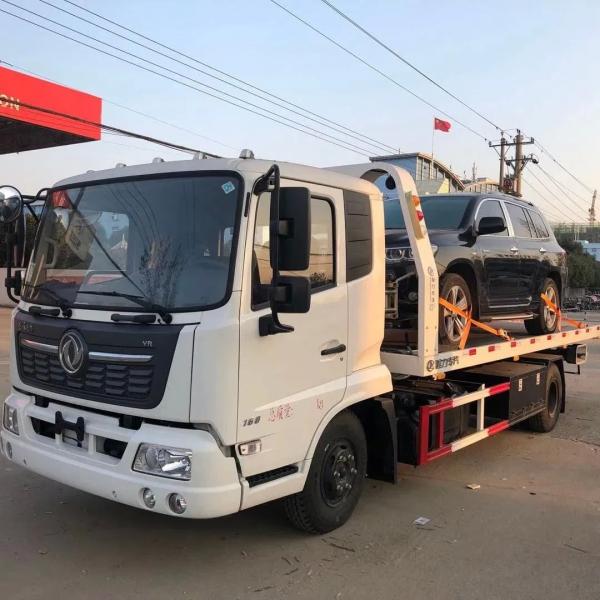

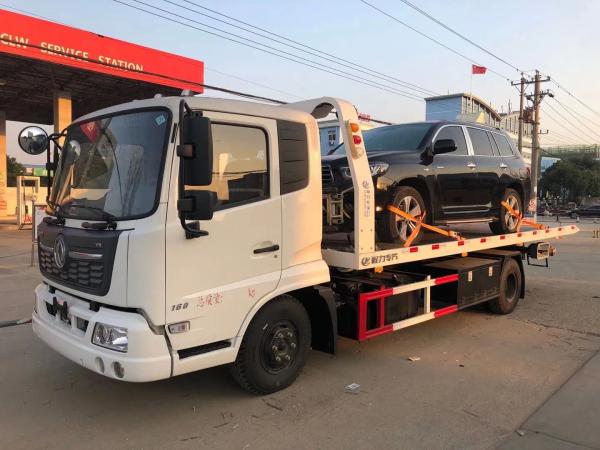

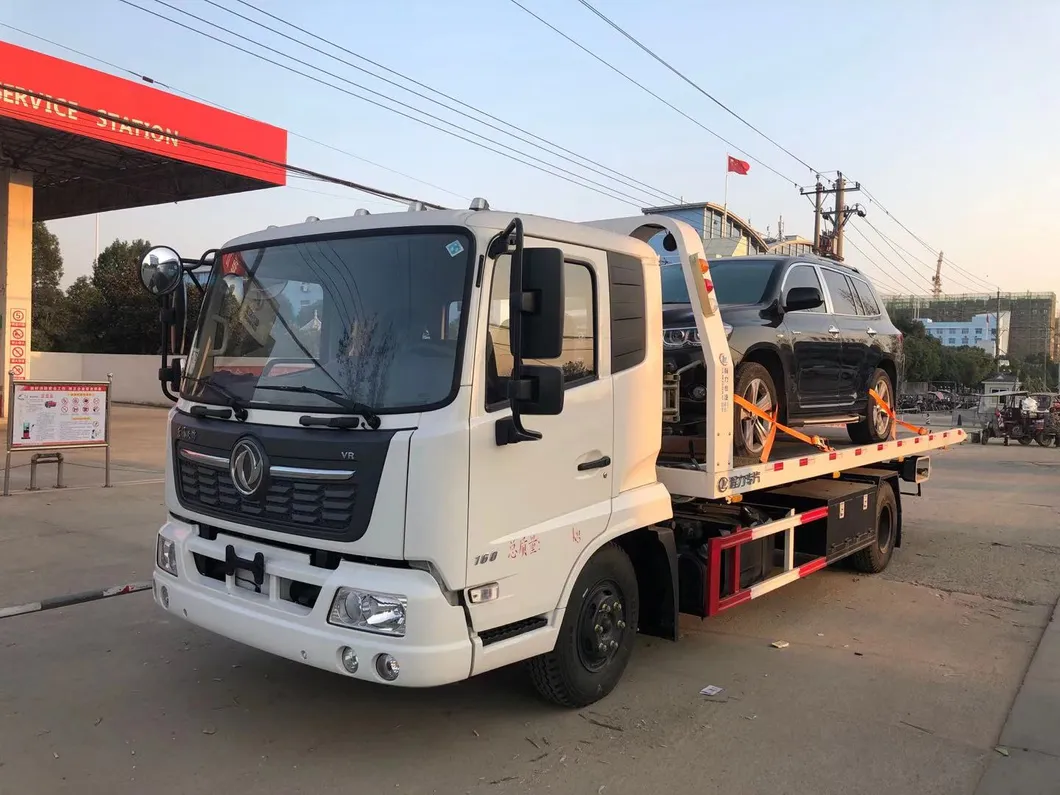

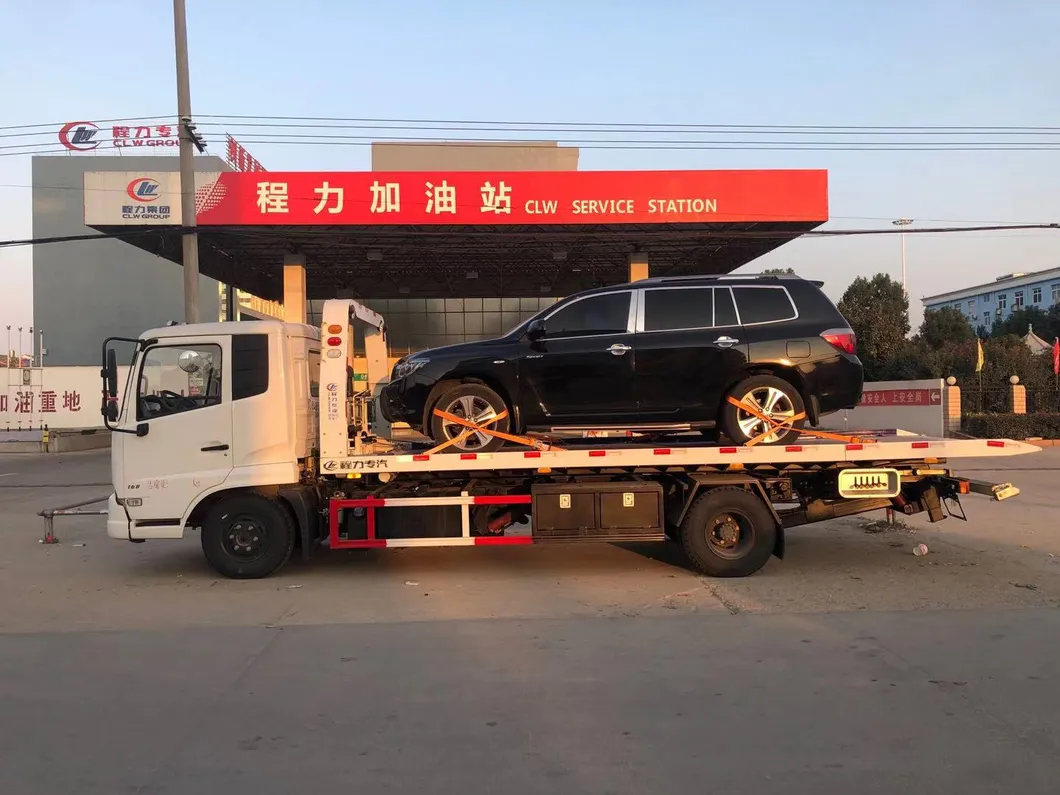

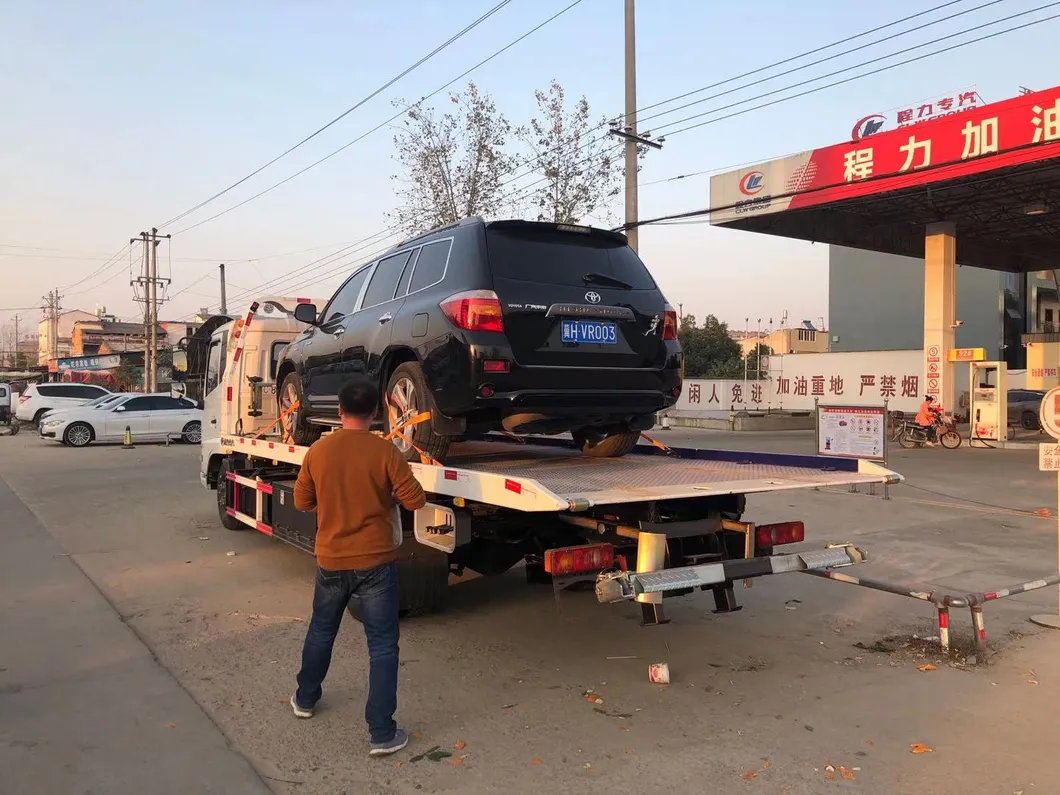

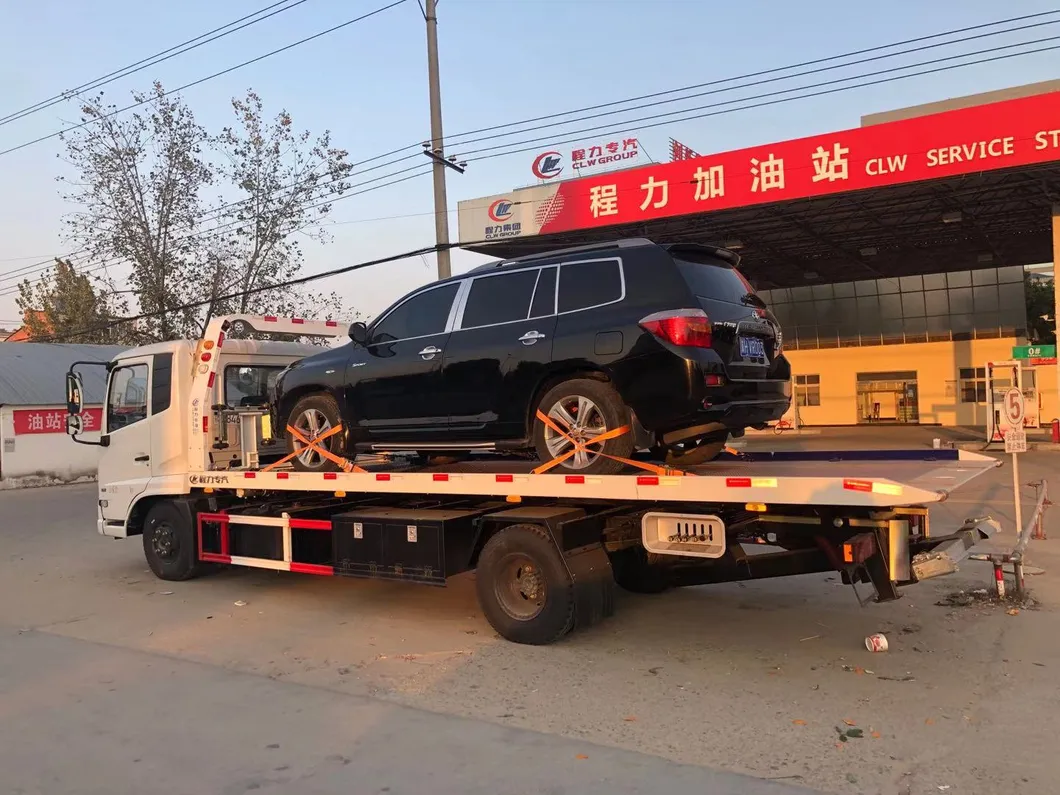

Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Dongfeng Flatbed Wrecker Truck 3tons 4tons With 3ton Lifting Weight
Specifications
Flatbed Dimensions :
7200*2450mm
Emission Standard :
Euro 5
Length of Steel Cable :
25m
Condition :
New
Tire :
Steel Tire
Winch Rating Pulling Capacity :
6000kg
Gearbox :
6 Forward & 1 Reverse
Origin :
Suizhou, China
HS Code :
8705909990
Name :
Flatbed Wrecker Truck
Max. Loading Weight :
6000kg
Place of Origin :
CHINA
Brand Name :
CLW
Bearing Capacity :
6ton
Engine :
180HP
Rating Under-Pulling Capacity :
6000kg
Transport Package :
Bulk, RO-RO, Container
Trademark :
CLW
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model NO. :
CLW59206BGQ
Towing Tonnage :
6ton
Delivery Time :
30 Days
Production Capacity :
500unit Per Month
Fuel :
Diesel
Specification :
3T, 3ton, 3tons 4t 4tons 4ton
MOQ :
1
Price :
15000-35000 per unit
Transmission Type :
Manual
Brand :
Dongfeng
Description
Flatbed Wrecker Truck with 3ton Lifting Weight
Product Description:
  • Purpose of 6ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
  • Optional brand of 6ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman...
  • Spare parts of 6ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
  • Capacity range of 6ton flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
  • The customers can choose to install the crane.
General Technical Parameters
Overall Dimension9440x2480x2760 (mm)
Gross Vehicle Weight12495kg
Curb Weight8000kg
Chassis Specification










Chassis Parameters

Chassis BrandDongfeng
CabinRow and half, Right Hand Driving




Engine

ModelISD180 50, 4 Cylinders
Power132KW/180HP
Emission StandardEURO V
Displacement4.5L
Fuel TypeDiesel
Gearbox6 Forward & 1 Reverse Gear
Front and Rear Axle Load4.5T/9T
Wheel Base4700(mm)
Overhang( Front/Rear)1015/2450(mm)
Angle(Approach/departure)24/9(°)
Brake SystemAir Brake
Steering GearPower Assistant
Tire9.00R20, 6 Pieces with 1 Spare Tire
Maximum Speed110(km/h)
Superstructure




Flatbed

Dimensions7200x2450 (mm)
Max. Loading Weight6000(kg)
Operating Stroke3300 (mm)
Min. Angle of Slope8(°)
Platform Height from the Ground1070(mm)


Winch

Quantity1pc
Winch Rating Pulling Capacity6000 (kg)
Length of Steel Cable25 (m)



Hoisting Organ

Rating Under-Pulling Capacity6000 (kg)
Rating Under-Hoisting Capacity2000 (kg)
Fully Extended Max Under-Hoisting Capacity1600 (kg)
Max Under-Hoist Useful Length1640 (mm)


Remarks

1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
