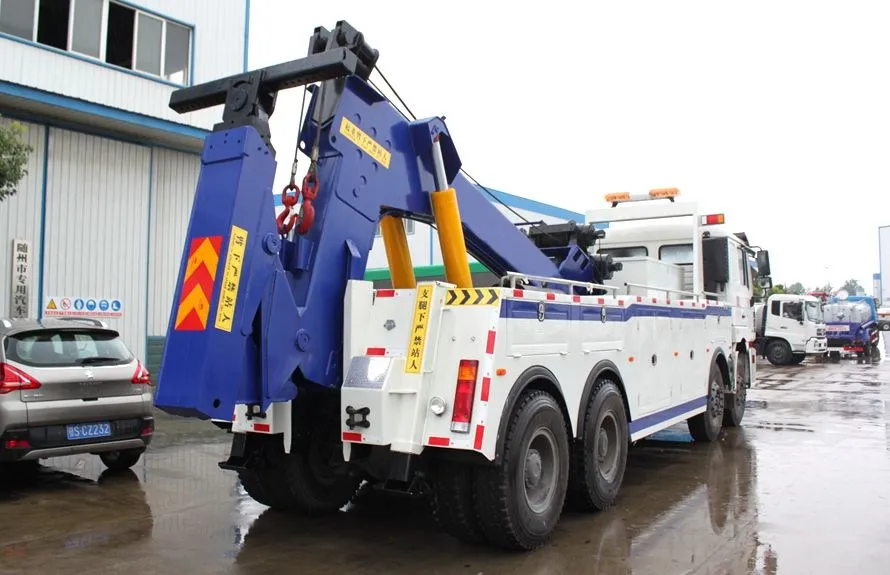

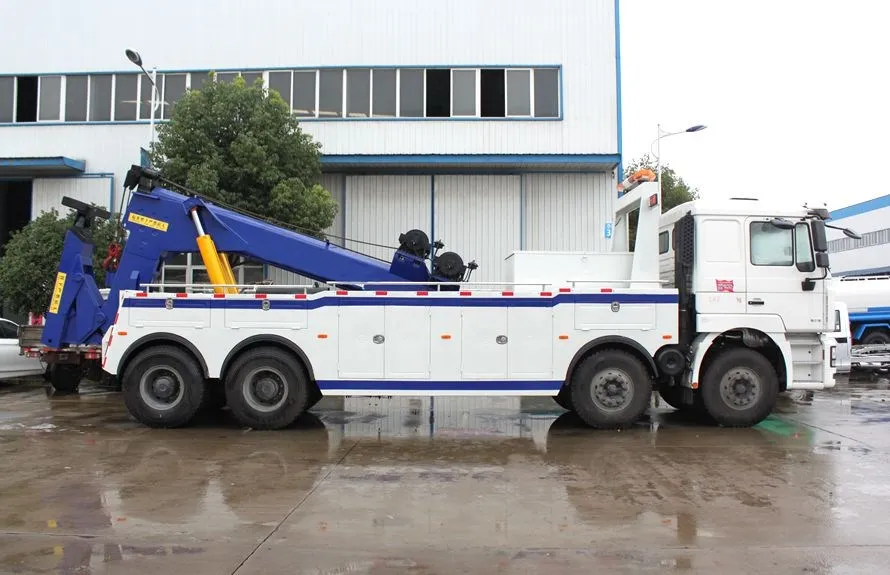

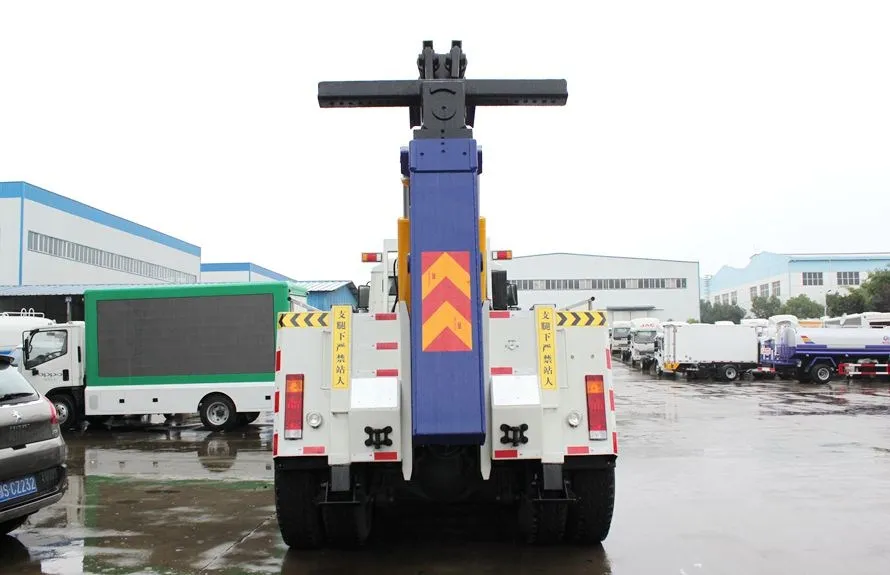

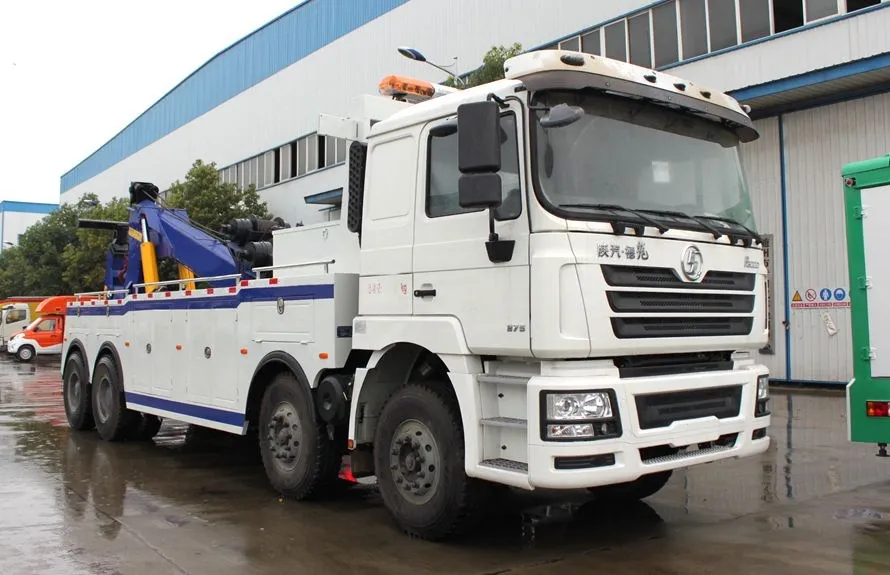

Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Specifications
Wheel Base :
1800+4600+1350mm
Fuel :
Diesel
Bearing Capacity :
Heavy Duty
Transport Package :
Bulk, RO-RO, Container
Place of Origin :
CHINA
Brand Name :
CLW
Winch Towing Capacity :
15tons 20tons 25tons
Specification :
30t 30ton 30tons 50t 50ton 50tons, etc.
Length of Steel Cable :
25m, 25meters
Brand :
SHACMAN
Condition :
New
Chassis Brand :
Dongfeng, FAW, HOWO, Jmc, JAC, Foton
Model NO. :
CLW5311K9MLQ
Towing Tonnage :
30tons,50tons,etc.
HS Code :
8705909990
Production Capacity :
500unit Per Month
Delivery Time :
30 Days
Overall Dimensions :
11430X2500X3270mm
Cabin :
2~3 Personn with A/C
Origin :
Suizhou, China
Transmission Type :
Manual
Trademark :
CLW
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Hydraulic System :
Imported Brand
Steering :
LHD, Rhd, Left Hand Drive, Right Hand Drive
Overall Weight :
31000kg
Gearbox :
10 Forward & 2 Reverse
Name :
Wrecker Truck
MOQ :
1
Price :
15000-35000 per unit
Emission Standard :
Euro3, Euro4, Euro5
Tire :
12.00r20
Description

Shacman Heavy Duty 360 Degree Rotation Rotator Tow Truck Price 50tons 80tons RC Truck

Product Description:

  • Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
  • Optional brand of Recovery Truck :howo,Dongfeng,JAC,JMC,Foton,Shacman...
  • Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
  • Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton

Specification of Shancman 50tons Recovery Truck

CHASSIS

Cabin

Shacman standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons

No load(kg)

Curb Weight

13070

Front axle

7000*2

Rear axle

18000*2

Full load

Max. Overall Weight

31000

Overall Dimensions(mm)

Length

11430

Width

2500

Height

3270

Wheel base(mm)

1800+4600+1350

Track(mm)

2022/1830

F/R Suspension(mm)

1500/2200

A/D Angle(°)

16/18

Driving Model

8*4

Tyre

315/80R22.5

Max. Speed(km/h)

105

Max. Grade-ability(%)

30

Min. Turning Diameter(m)

22.6

Min. Ground clearance(mm)

310

Engine

Model

WD615.47

Horsepower(HP)

371

Displacement(mL)

9726

Transmission

HW19710,10 forwards&2 reverses

WRECKER EQUIPMENT

Max. Towing Weight(kg)

43000

Lifting System

Max. Lifting Weight(kg)

25000

Max. Lifting Weight under all extension(kg)

8300

Effective Length of Corbeling Arm(mm)

3650

Extend-retract of Corbeling Arm(mm)

1750

Slope Angle of Corbeling Arm(°)

7

Folding angle under no load(°)

-7~92

Folding angle under load(°)

-7~16

Max. Ground Distance(mm)

900

Landing Strength(KN)

80*2

Hydraulic Hose

Tianhe,Guangdong Province

Hydraulic Joint

Germany technology and exported Sealing rings

Hydraulic Lock

Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.

Swivel Joint

Yangzhou Zhongmei Pressure Parts Co.,Ltd.

Compartment plate

One-step Modeling by Germany 3P2A 1000T punching machine
